EN

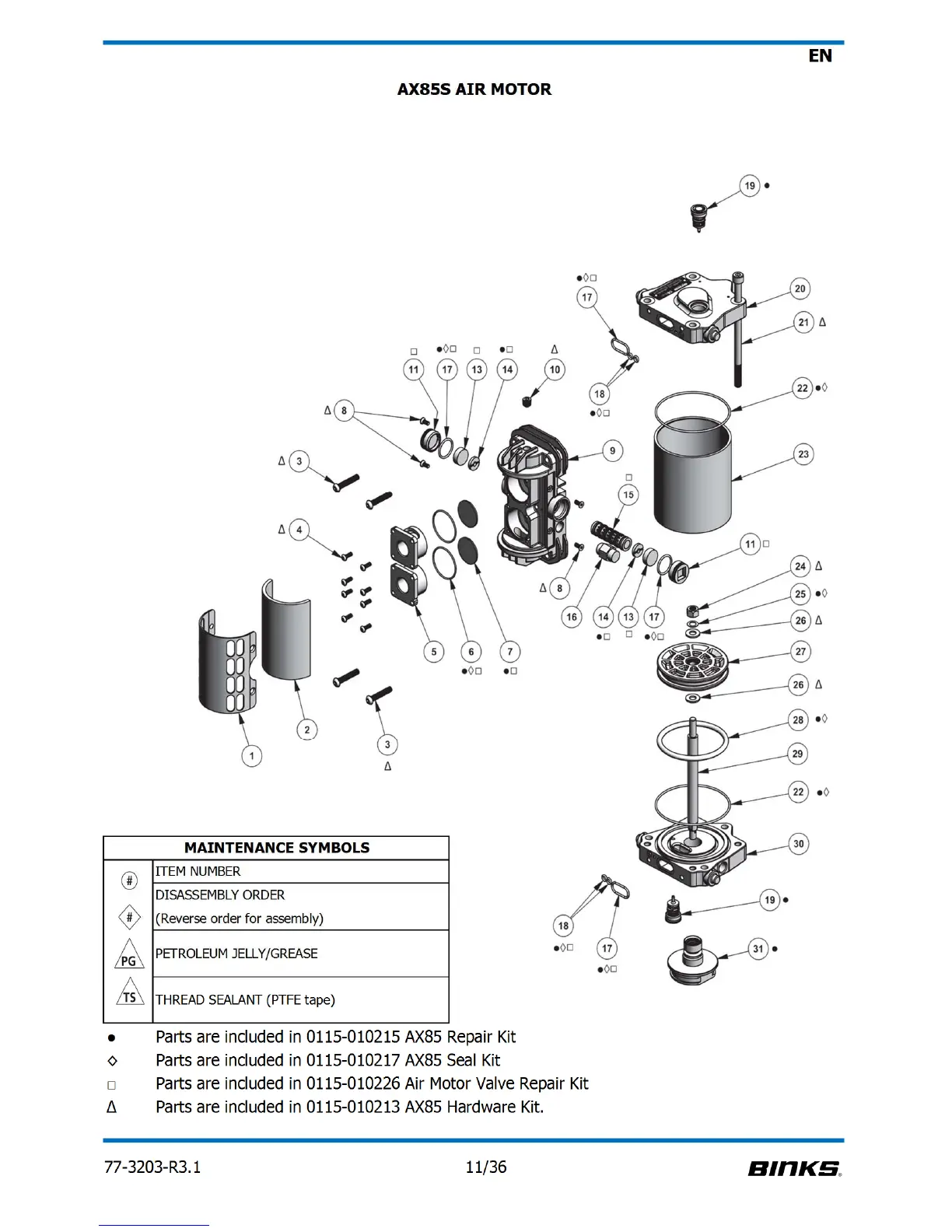

AX85S AIR MOTOR
Parts are included in 0115-010215 AX85 Repair Kit
Parts are included in 0115-010217 AX85 Seal Kit
Parts are included in 0115-010226 Air Motor Valve Repair Kit
Parts are included in 0115-010213 AX85 Hardware Kit.
MAINTENANCE SYMBOLS
ITEM NUMBER
PETROLEUM JELLY/GREASE
THREAD SEALANT (PTFE tape)
DISASSEMBLY ORDER
(Reverse order for assembly)
