EN
Wetted parts materials of construction:
Stainless Steel,
Tungsten Carbide,
Hard Chrome, PTFE,
Polythylene, Leather, Ceramic
SPECIFICATION
Maximum fluid pressure: 96 bar [1390psi]
Displacement per cycle: 24 cc [0.8oz]
Output @ 60 cycles/min: 1.4 L/m [0.4 gal/m]
Fluid inlet size: FX-3/4" NPS(m), FXL-1/2"NPS(m)
Fluid outlet size: M14x1.5(f)
Weight:
4.2 kg [9.2 lbs]

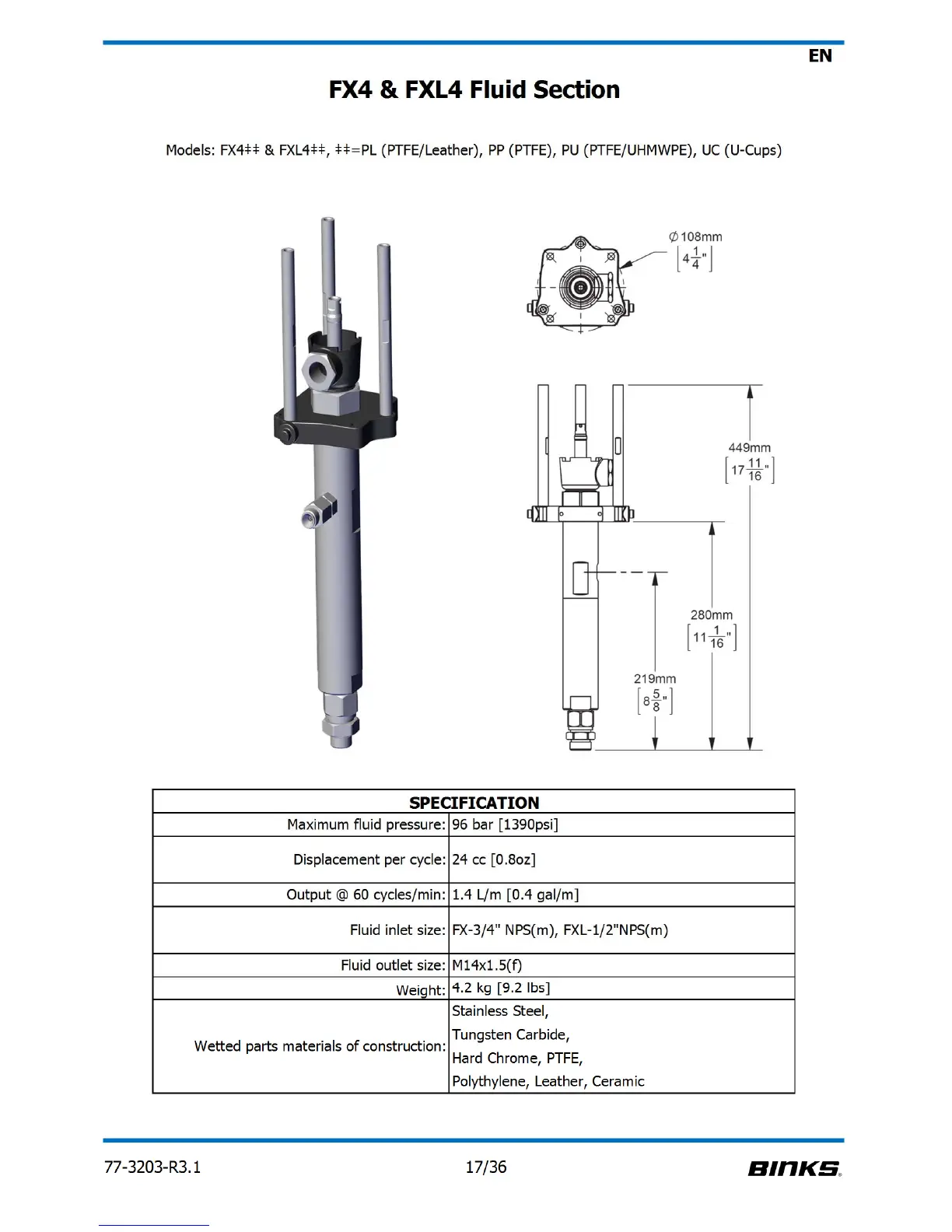

FX4 & FXL4 Fluid Section
Models: FX4‡‡ & FXL4‡‡, ‡‡=PL (PTFE/Leather), PP (PTFE), PU (PTFE/UHMWPE), UC (U-Cups)
