Binks MX432 - Tripod Mounted Assemblies

9

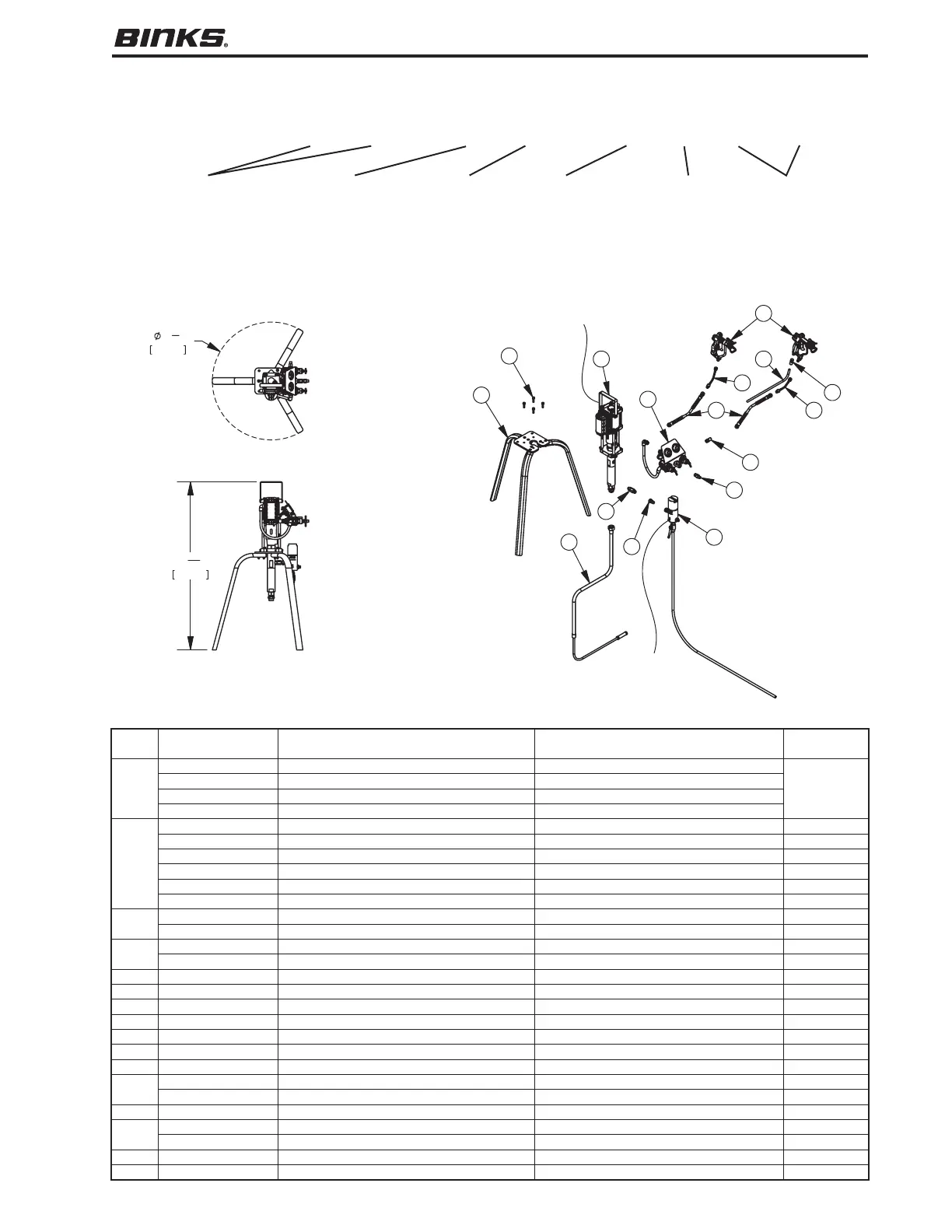

MX432 TRIPOD MOUNTED SYSTEMS
MX432 __ __ – __ __ T __ __ __ __
SEALS SPRAY GUN AIR CONTROL FILTER SIPHON HOSE
PL = PTFE / Leather 0 = none 0 = none 0 = none 0 = none 00 = none
PP = PTFE G = AA4400 Flat Tip D = Air Control 1 = 100 mesh S = 5 gallon 25 = 25 ft / whip
PU = PTFE / UHMW H = AA4400 Twist Tip 2 = 200 mesh T = 55 gallon 50 = 50 ft / whip
UC = U-Cups P = AIRLESS 75
SYSTEM COMPONENT LIST
ITEM
NO.
PART NUMBER DESCRIPTION QTY PART SHEET
1
MX432PL BARE PUMP ASSEMBLY (PTFE/LEATHER) 1 IF SEAL TYPE = PL
77-2907
MX432PP BARE PUMP ASSEMBLY (PTFE) 1 IF SEAL TYPE = PP
MX432PU BARE PUMP ASSEMBLY (PTFE/UHMW) 1 IF SEAL TYPE = PU
MX432UC BARE PUMP ASSEMBLY (U-CUPS) 1 IF SEAL TYPE = UC
2
0909-4400-HF0000 AA4400 GUN ASSEMBLY (FLAT TIP HOLDER) 1 IF GUN TYPE = G 77-2922
114-01310 FLAT SPRAY TIP (1310) 1 IF GUN TYPE = G
0909-4400-HT0000 AA4400 GUN ASSEMBLY (TWIST TIP HOLDER) 1 IF GUN TYPE = H 77-2922
9-613-75 TWIST SPRAY TIP (613) 1 IF GUN TYPE = H
0811-7500-1 AIRLESS 75 GUN 1 IF GUN TYPE = P 77-2950
9-515-75 TWIST SPRAY TIP (515) 1 IF GUN TYPE = P
3
71-4830 MATERIAL HOSE (1/4" ID X 25', 4000 PSI) 1 IF HOSE LENGTH = 25
71-4831 MATERIAL HOSE (1/4" ID X 50', 4000 PSI) 1 IF HOSE LENGTH = 50
4
71-4803 AIR HOSE (3/8" OD TUBE X 28FT) 1 IF HOSE LENGTH = 25
71-4804 AIR HOSE (3/8" OD TUBE X 53FT) 1 IF HOSE LENGTH = 50
5 71-6844 MATERIAL HOSE (1/8" ID X 3', 5000 PSI) 1 IF HOSE LENGTH = 25 / 50
6 72-2332 SWIVEL ADAPTER (1/4" NPS M X F) [NOT SHOWN] 1 IF GUN TYPE = P
7 54-4976 ADAPTER FITTING (3/8" OD TUBE X 1/4" NPS F) 1 IF GUN TYPE = G / H
8 0115-010180 AIR CONTROL ASSEMBLY 1 IF AIR CONTROL = D
9 83-4233 DM NIPPLE (1/4" NPS/NPT X 3/8" NPS/NPT) 1 IF AIR CONTROL = D
10 0115-010100 TRIPOD ASSEMBLY 1
11 0115-010227 SOCKET HEAD CAP SCREW (M8 X 25mm) 4
12
0115-010326 S.S. FILTER ASSEMBLY (100 MESH) 1 IF FILTER TYPE = 1
0115-010630 S.S. FILTER ASSEMBLY (200 MESH) 1 IF FILTER TYPE = 2
13 103-1238 SWIVEL ADAPTER (3/8" NPS F X 1/4" NPT/NPS M) 1 IF NO FILTER
14
41-17260 SIPHON TUBE ASSEMBLY (5 GALLON) 1 IF SIPHON SIZE = S
0115-010381 SIPHON TUBE ASSEMBLY (55 GALLON) 1 IF SIPHON SIZE = T
15 0115-010256 CHECK VALVE 1
17 85-521 SWIVEL ELBOW (3/8" OD TUBE X 1/4" NPT) 1 IF AIR CONTROL = D
8
16
1
14
5
4
9
Ground
wire
Ground
wire
5
12
13
10
3
8
11
15
2
38
3
16
"
970mm
26
3
4
"
680mm
