Binks MX432 - Airless Gun Air Control Assembly

77-2915R-1
page 12 of 16

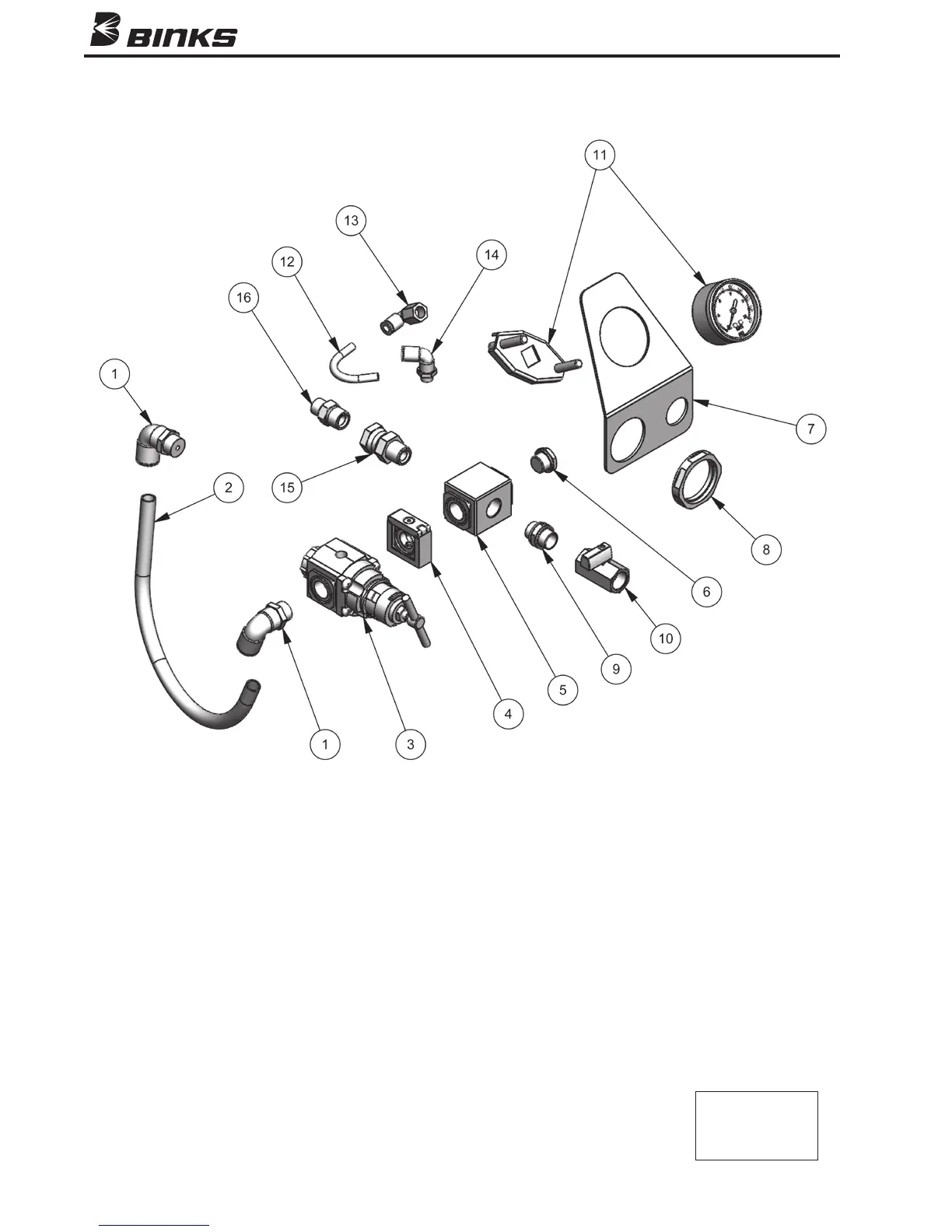

0115-010198 AIRLESS GUN AIR CONTROL ASSEMBLY
ITEM PART
NO. NO. DESCRIPTION QTY.
PARTS LIST
When ordering, please specify Part No.
1 0115-010181 ELBOW FITTING ............................................. 2
2 0115-010185 TUBING .......................................................... 1
 3 0115-010183•AIRREGULATOR
0-160 PSI (0-11 BAR) ............... 1
4 0115-010189 QUIK CLAMP ................................................. 1
5 0115-010188 MANIFOLD BLOCK ........................................ 1
6 0115-010338 PORT PLUG .................................................... 1
7 0115-010199 SINGLE REGULATOR PANEL .......................... 1
8 0115-010194 PANEL MOUNT NUT ...................................... 1
9 0115-010334 MINI BALL VALVE .......................................... 1
10 0115-010333 DM ADAPTER ................................................ 1
11 0115-010192 PANEL MOUNT GAUGE
0-160 PSI (0-11 BAR).... 1
12 0115-010197 TUBING .......................................................... 1
13 0115-010196 90° ELBOW GUAGE TUBE FITTING ............... 1
14 0115-010195 90°ELBOW SWIVEL TUBE FITTING ................ 1
15 0115-010324 SWIVEL FITTING,
3/8 BSPT (M) X 3/8 BSP (F) ....... 1
16 0115-010157 AIR CONTROL MOUNTING STUD ................. 1
•RegulatorRepairKit
(sold separately):
0115-010228
