Binks QS-5012-1-CE - Page 8

EN
77-3110-R1.3 (4/2016)
8 / 14
54
55
55
57
65
64
56
53
52
51
58
59
60
61
65
64
63

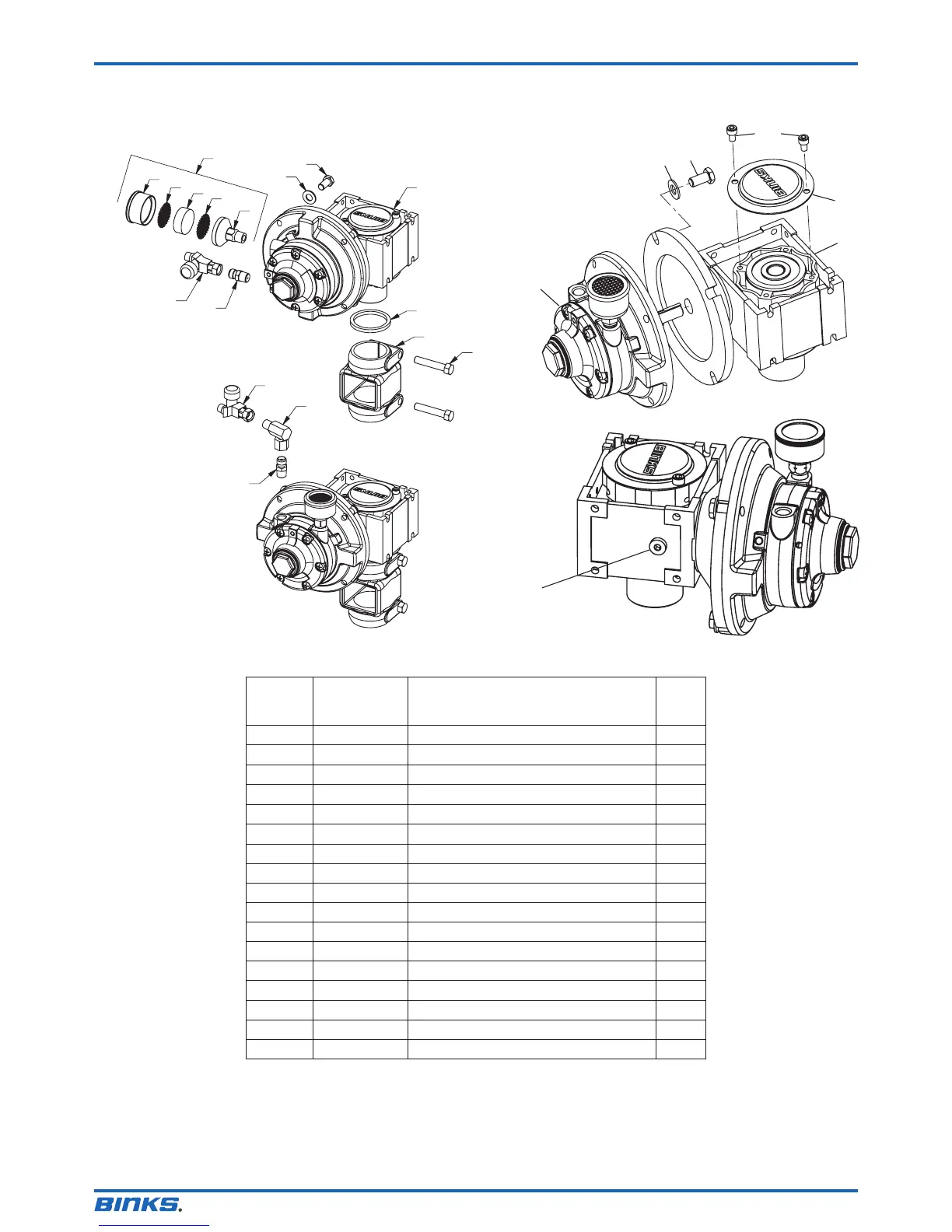

QS-5012-1-CE PARTS LIST
Ref. No.
Replacement
Part No.
Description
Ind.
Parts
Req'd.
53 350-401 MUFFLER / AIR STRAINER 1
54 --- STRAINER CAP 1
▲ 55
--- SCREEN 2
● ▲ 56
--- FELT 1
57 --- STRAINER BODY 1
58 31-391-1 GEAR MOTOR (INCL's 58A THRU 58D) 1
58A 31-418 AIR MOTOR (INCL W/ 31-391-1) 1
58B 31-416-1 20:1 REDUCER (INCL W/ 31-391-1) 1
58C 31-422 COVER PLATE (INCL W/ 31-391-1) 1
58D Purchase Locally SCREW M6 X 1 X10mm lLong 1
59 322423-133 WASHER 1
60 QMS-35 AIR MOTOR SUPPORT 1
61 Purchase Lodally HEX HEAD CAP SCREW 3/8-16 X 2" 2
63 Purchase Locally SWIVEL ELBOW, 1/4 NPT (M) X 1/4 NPS (F) 1
64 31-431 NIPPLE 1/4 UNIV X 1/4 NPT (RESTRICTED) 1
65 HAV-500 AIR ADJUSTING VALVE 1/4 NPS (F) X 1/4 NPT(M) 1
66 HA-57011 HOSE ASSEMBLY (See installation instructions) 1
● Parts included in KK-5001-1 Air Motor Repair Kit.
▲ Order KK-5006 Strainer Screen and Felt Kit.
FIG. 6
31-391-1 GEAR-MOTOR
FIG. 5
QS-5012-1-CE GEAR REDUCTION DRIVE
58A
51
52
58D
58C
58B
8 LITRE CONFIGURATION
40 & 60 LITRE CONFIGURATION
Oil Plug
