Before attempting any installation of agitators onto
pressure feed tanks, the tanks must be relieved of
pressure as high pressure can cause a serious injury.
Pressure is maintained in a pressure tank after the
system has been shut down. Before attempting
removal of cover, fill cap, or center plug, pressure
must be relieved using the steps on page 3.
!
WARNING

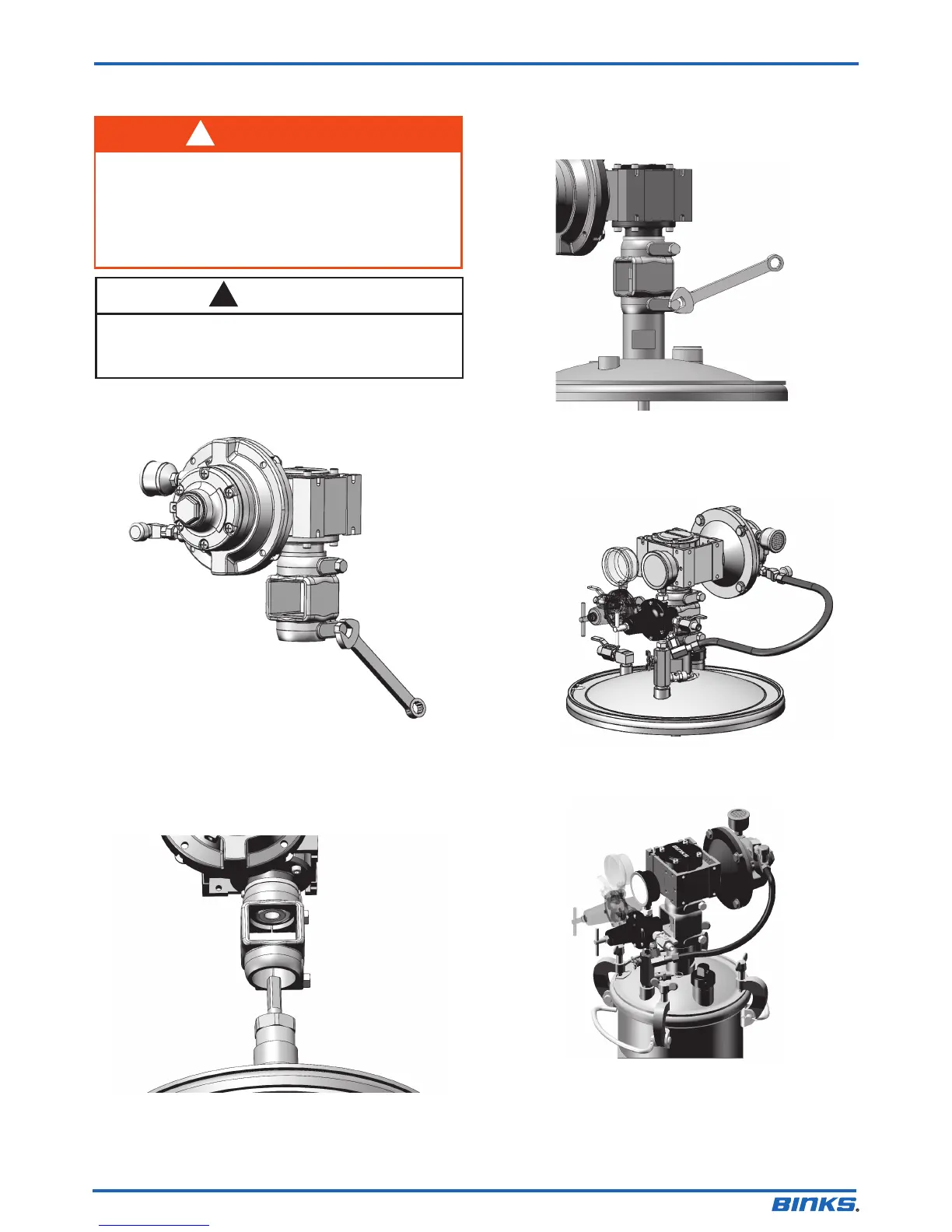

INSTALLATION—DRIVE UNIT QS-5012-1-CE
Rotate the drive unit to the desired position. Then tighten the
cap screws (2) Use 9/16 wrench.
After the drive unit is positioned connect the air hose (66) from
the regulator to the air motor as shown.
Typical 40 and 60 Litre ASME Tank Conguration
Using a 9/16 wrench, loosen the lower cap screw (61).
Install drive unit over the bearing assembly. Make sure that the
square drive of the shaft engages the drive socket of the
gearbox. Rotate the unit as necessary to align the shaft and
the socket.
Typical 8 Litre ASME Tank Conguration
Failure to properly lubricate the air motor will result in
premature motor failure and will void the warranty. See
lubrication instructions on page 3.
!
CAUTION
