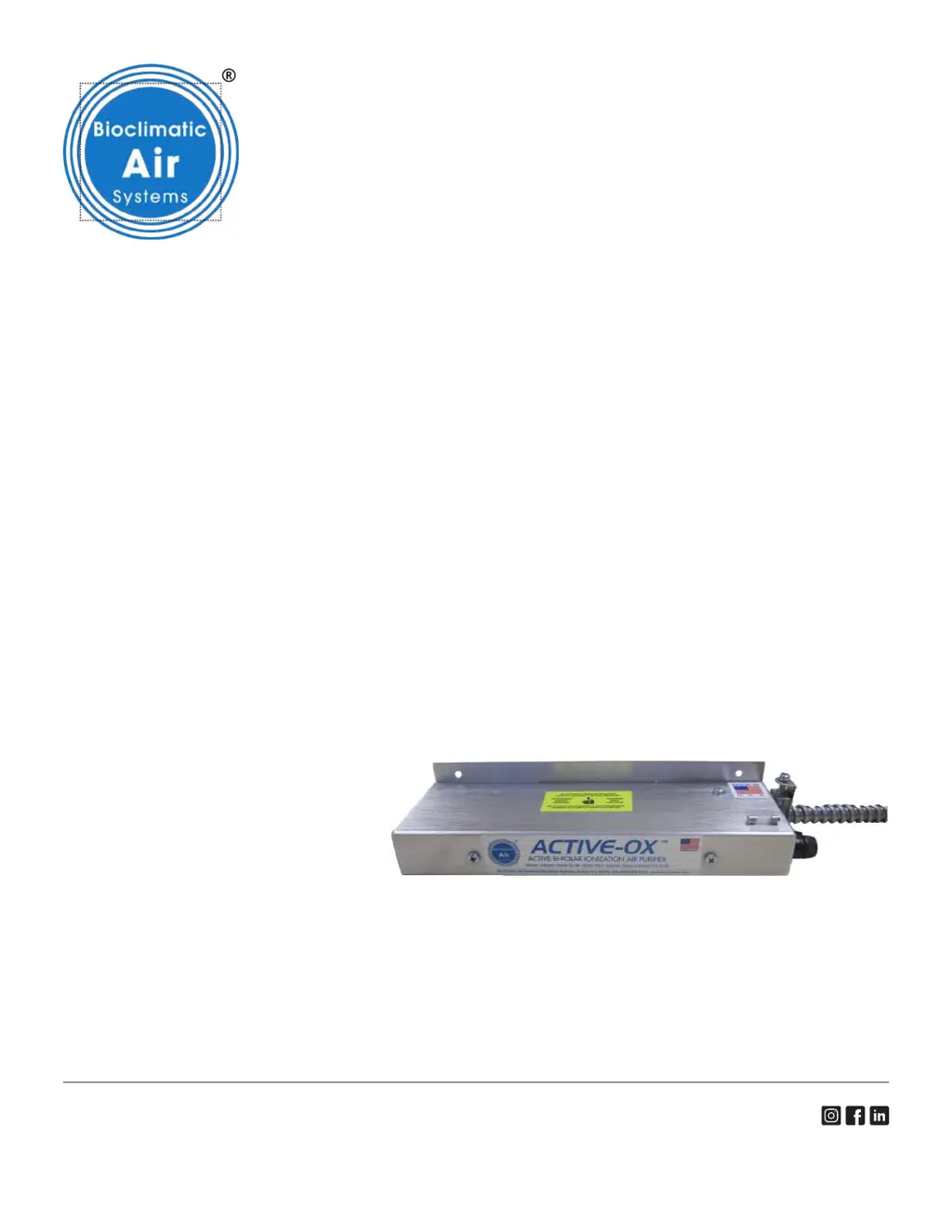

Bioclimatic ActiveOx Series - User Manual

OUR MISSION
To design and build quality engineered air cleaning systems
to provide indoor comfort, protect occupants, and ensure the
reliability of critical systems and processes.
Bioclimatic.com
003-OCT-2021
IMPORTANT
Save this Document
for Future Reference &
Warranty Information
ActiveOx Series
Installation, Operation
and Maintenance Guide

Summary

Introduction

Disclaimer

These instructions are submitted with the implicit understanding that the manual guides users on proper installation, operation, and maintenance.

Receiving Equipment

Products leaving the factory are inspected; inspect all equipment upon receipt for any transit damage and report immediately.

Storage Guidelines

If units are not installed upon delivery, store them in a cool, dry, weather-protected location without stacking other equipment on top.

Warranty Information

The seller warrants equipment against defective workmanship and material for fifteen (15) months from factory shipment or one (1) year from commissioning.

Physical Description and Theory of Operation

Principle of Operation

The ActiveOx Series ionization generator rail is designed for plenum mounting, installed in the supply or return air side of an AHU.

ActiveOx Generator Series Bi-Polar Ionization Unit

This unit is a needlepoint Bi-Polar ionization device that produces synchronized bipolar ionization of an air stream.

System Regulation

Power input to ionization generators is not adjustable.

Building Management System Control (BMSC)

The ActiveOx Series generator rail offers an option for a control box for building management system (BMS) or BAS interface.

Installation Procedures

Initial Setup and Clearances

Generator rails install in AHU supply/return plenum; minimum MERV 8 prefilter required. Maintain clearances from filters and surfaces.

Installation Guidelines

Install rail assembly per guidelines; ensure ionizers are accessible for future service.

Airflow Orientation

The rail must be installed so air blows perpendicular to the ionizer module needle electrodes.

Wiring Connections

Connect wiring to the ActiveOx generator rail(s) following the specific wiring diagram for the application.

Operation and Maintenance

Operating the System

To start, provide appropriate supply voltage; blue LEDs indicate energized modules. Turn off using the power switch.

Maintenance Recommendations

Recommends semi-annual inspections and cleaning to ensure modules are free of debris and maintain optimal performance.

Maintenance Safety Warning

Crucial safety warning: Always disconnect power before performing any maintenance or servicing of the unit.

Troubleshooting Generator Energization

Addresses causes for ActiveOx generators not energizing, including circuit breaker issues, wiring connections, and fuse checks.

Specifications

Electrical Specifications

Details power requirement (10 VDC +/- 10%), power consumption (0.5 Watts), max operating temperature (+70° C), and humidity range.

Mechanical Specifications

Specifies mechanical details, referencing appendices, and notes the environment is indoor only.

Appendices

Wiring Diagram

Schematic showing the electrical connections required for the ActiveOx unit, including power supply and connectors.

Product Numbers

Product Number Information

Lists ActiveOx lonizer product numbers and provides contact information for missing models or service inquiries.

Bioclimatic ActiveOx Series Specifications

General

Brand	Bioclimatic
Model	ActiveOx Series
Category	Air Cleaner
Language	English
