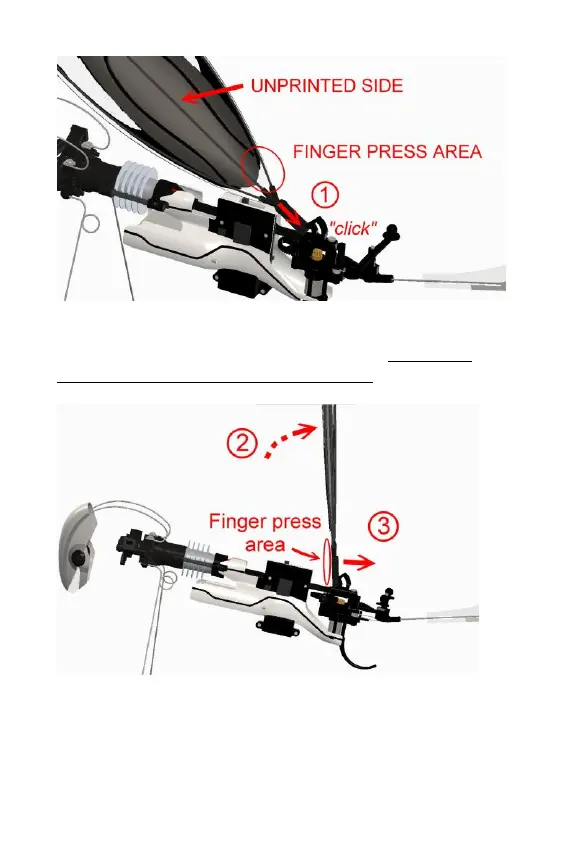

1 - Snap the tail end into its hole by pushing following
the arrow direction until you feel a “click”. Mind your
fingers position as shown on the picture. (hold the tail
always close to the base, which is robust).
2 – Once in position, rotate the tail up to a vertical
position, then 3 – slide your forefinger down at
maximum to press it backward into the final position.
