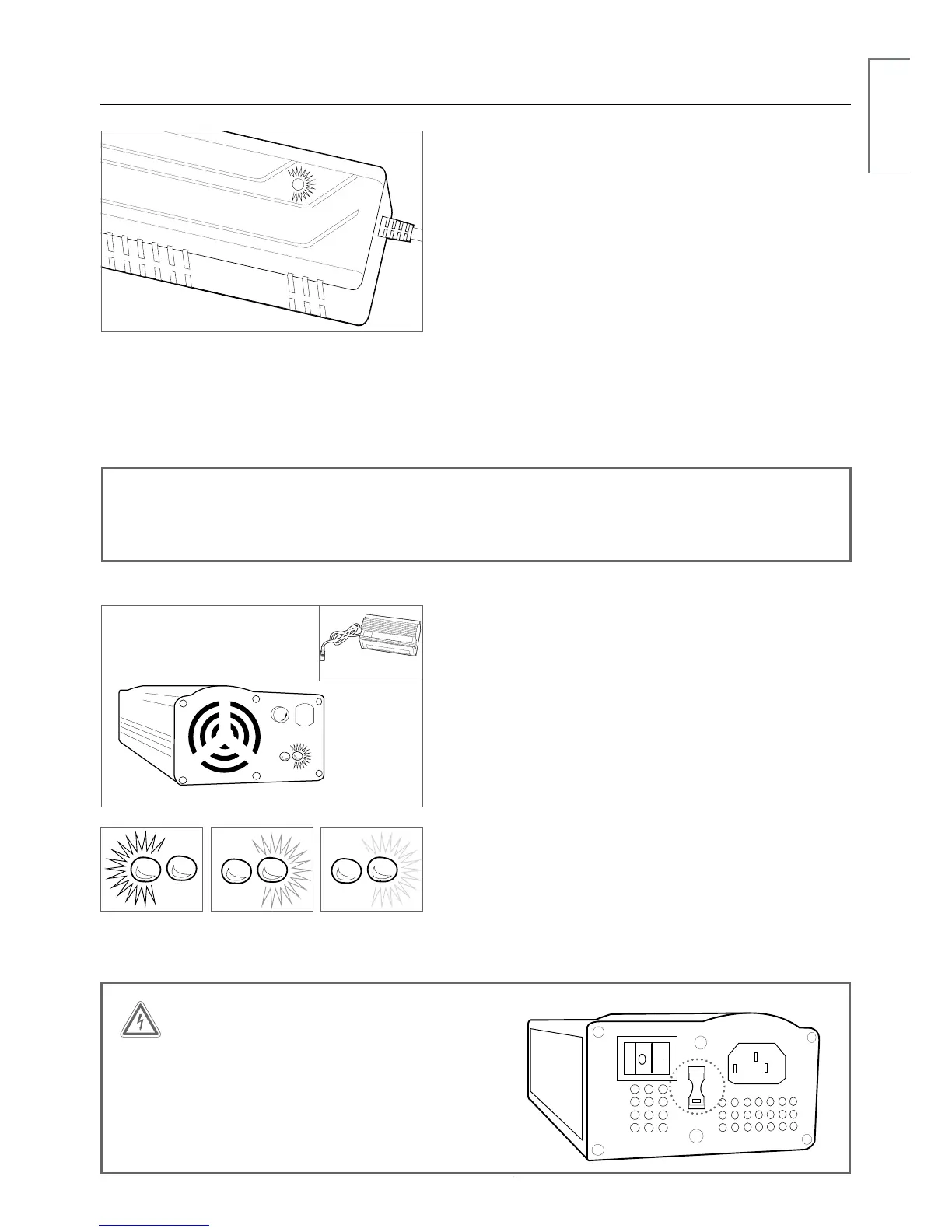

37V battery c harging procedure,
systems 2011 to present (single LED charger)
• Connect the charger and battery by inserting the
charge connector into the charge port. The BionX
system should be turned off
• Connect the charger to a power receptacle
• The light on the charger will turn red automatically
• The same light will then turn yellow to indicate
charging
• The light will turn green when the battery is fully
charged and the charging process is complete
• Following this procedure, the charger should be
disconnected from the battery
22V, 26V, and 37V battery charging procedure,
systems 2011 and earlier (two LED charger)
• Connect the charger and battery by inserting the
charge connector into the charge port. The BionX
system should be turned off
• Connect the charger to a power receptacle
• The power switch must be set to ‘on’ and the red
LED will illuminate
• The LED to the right of the red LED will illuminate
yellow to indicate charging
• When the right LED turns green the battery is fully
charged and the charging process is complete
• Following this procedure, the charger should be
disconnected from the battery
WARNING
Check input voltage when travelling with
the two LED charger. Failure to adjust the
voltage switch on a two LED charger to
the correct voltage range can result in
damage to the charger.
001
115
FUSE
This notch is very important
NOTE
The 37V single LED charger is suitable for line voltage ranges of 110-115V or 220-230V,
and compensates automatically.
001
115
FUSE
This notch is very important
Left LED =
red, charger on
Right LED =
yellow, charging
Right LED =
green, fully charged
001
115
FUSE
This notch is very important
Left LED =
red, charger on
Right LED =
yellow, charging
Right LED =
green, fully charged
