BionX Smart - Installing the Fork; Push Fork Seat Ring onto Steerer Tube

RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
22/58

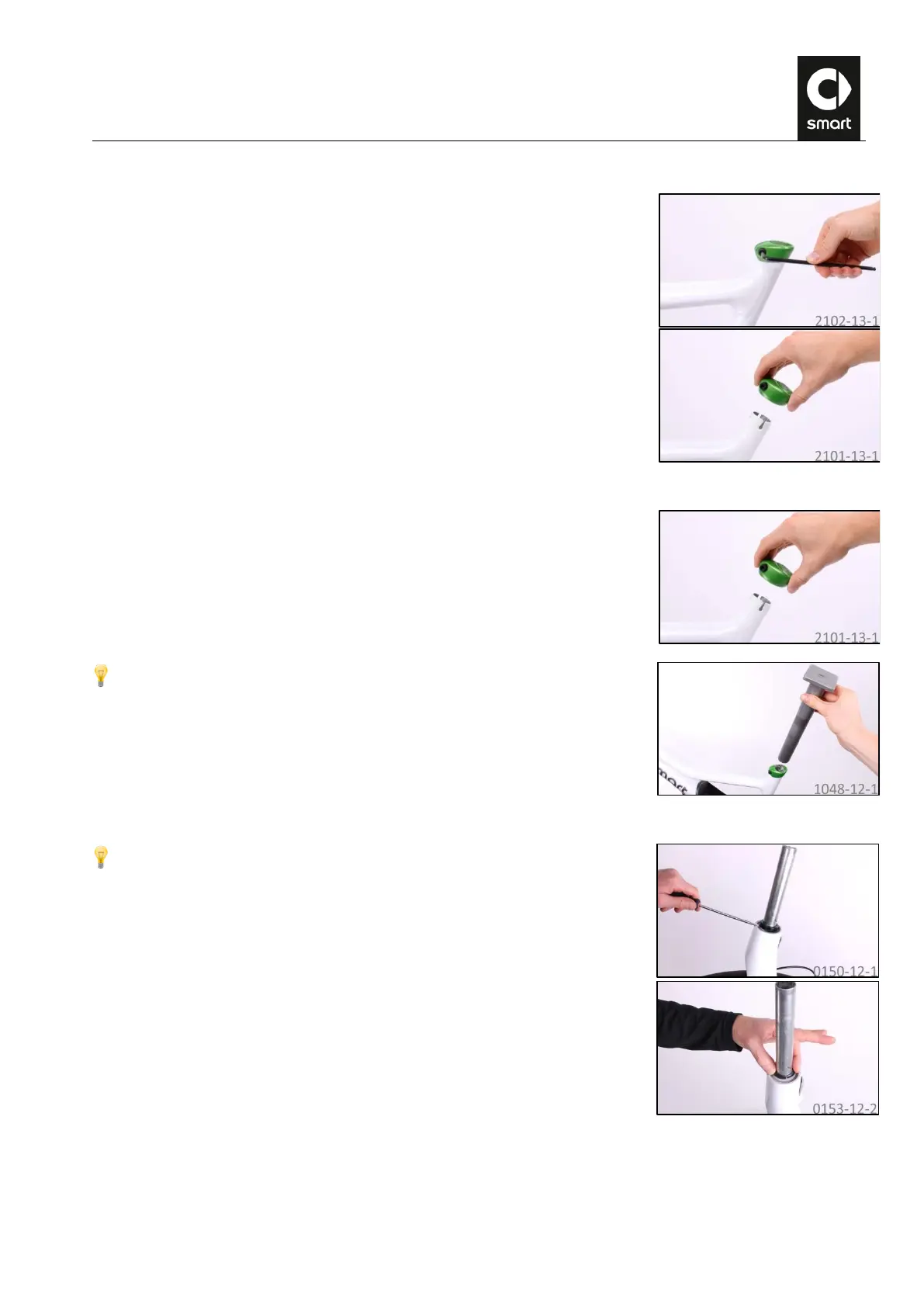

U. Removing the saddle clamp
V. Installing the saddle clamp
To be able to hang the frame up on the assembly stand, insert the adapter into
the seat tube. Here, the uncoated part of the adapter must disappear almost
entirely into the seat tube. Tighten the saddle clamp bolt to a torque of 9 Nm.
W. Installing the fork
82.
Take the frame out of the assembly stand and undo the bolt of the saddle clamp
with a size 5 Allen wrench.
83. Z
Pull the saddle clamp off the seat tube.
84.
Put the saddle clamp onto the seat tube of the frame.
If you want to reuse the fork seat ring of the old fork, you can carefully lever it
off the steerer tube using a flat screwdriver.
85.
Push the fork seat ring of the headset onto the steerer tube. The flat side must
face downwards, the tapered side upwards.
