BionX Smart - Fit Brake Caliper to Mounting; Tighten Caliper Retaining Bolts

RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
25/58

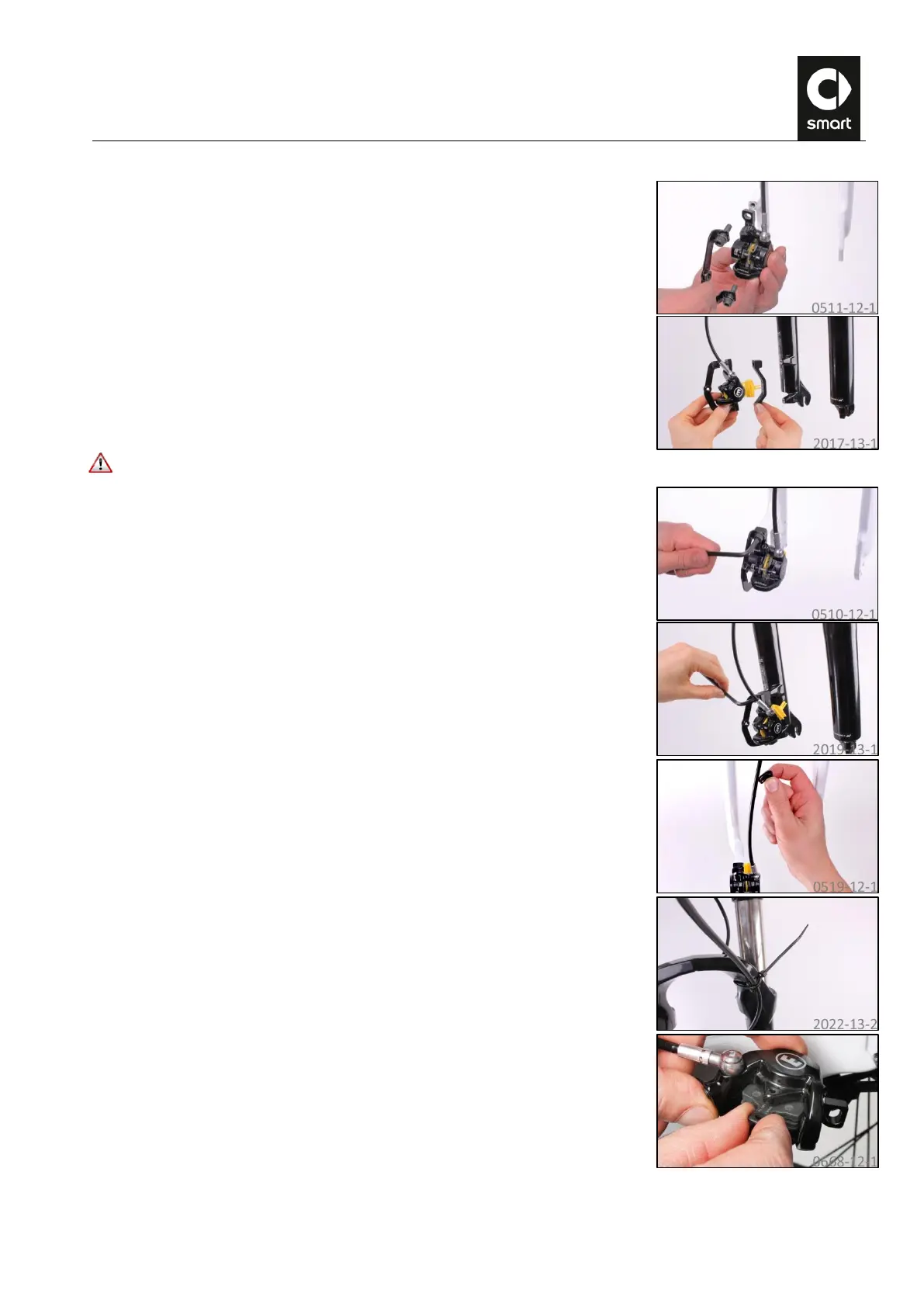

95.
Fit the brake caliper onto the mudguard bracket and onto the brake mounting
of the fork. Make sure that the brake disc is correctly seated between the brake
pads.
Use the long bolt (marked with red thread lock) in the upper hole. The shorter
bolt (marked with blue thread lock) is used in the lower hole.
96.
Tighten the brake caliper retaining bolts only until the brake caliper can still be
moved sideways by hand.
97.
Rigid fork: Attach the brake line guide to the brake line.
Suspension fork: Attach the brake hose to the fork bridge with a cable tie and
shorten the cable tie to the required length.
98.
Remove the transport lock from the brake caliper and install the brake pads
one by one in the brake caliper. The brake pads must face inwards towards the
brake disc. They are held in position by magnets.
