BionX Smart - Page 34

RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
34/58

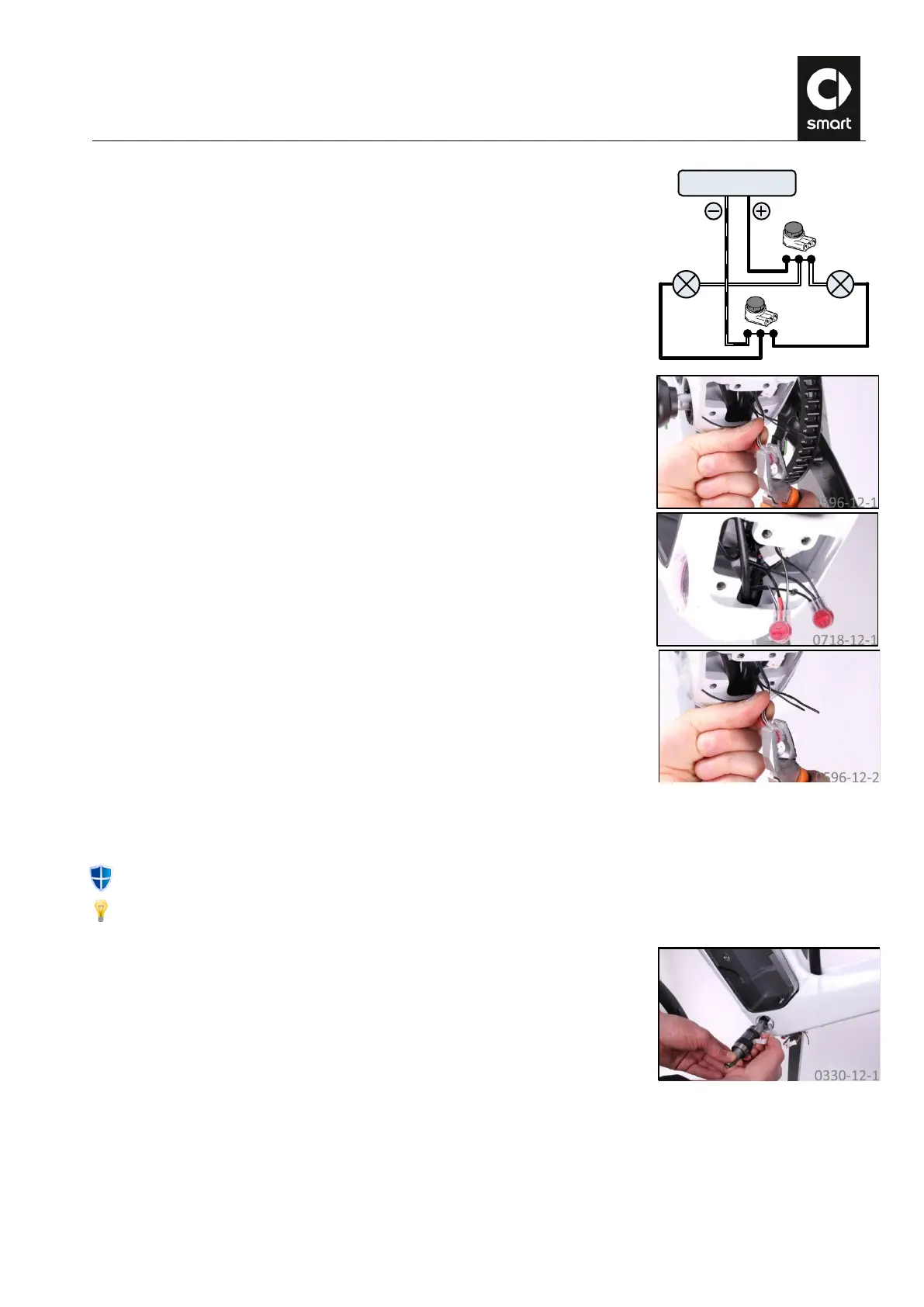

137.
Please note the color coding of the cables.
BionX battery
front
light
0725-12-1
rear
light
138.
Fit the two 3M
TM
Scotchlok
TM
connectors as follows:
 Connect the black light cable from the battery nest to the two black/white
light cables of the lights.
 Connect the black/white light cable from the battery nest to the two black
light cables of the lights.
139.
Squeeze the 3M
TM
Scotchlok
TM
connectors together using flat nose pliers until
the colored button is flush with the housing.
EE. Installing the inner bearing
140.
Clean and grease the thread of the bearing shell.
Always replace the complete inner bearing assembly together with the corresponding bearing shells, because the
bearing and the bearing shells are matched to each other by the manufacturer.
The axle unit is marked with an “R” and an “L” to identify its orientation of installation. The right bearing shell also
has a groove on the inside in which the axle unit engages.
141.
Push first the sensor connector and then the axle unit into the bottom bracket
shell from the left side.
