RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
36/58

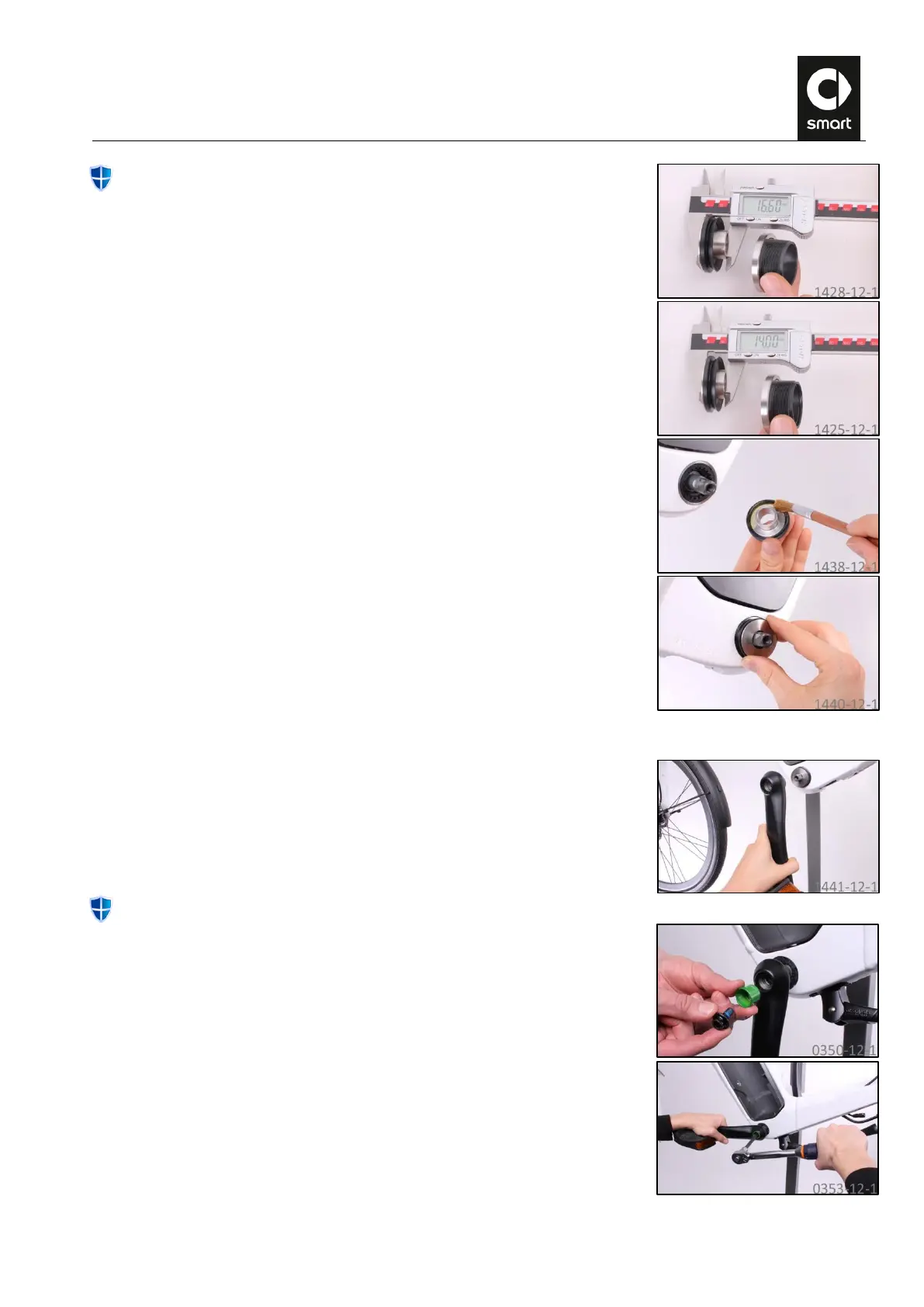

The seals for the left and right bearing shells are different. The seal carrier for
the left bearing shell is 16.6 mm long; the seal carrier for the right side is 14.0
mm long.
145.
Grease the sealing lips of the left and right axial shaft sealing rings and push
the seal carriers onto the axle of the inner bearing.
FF. Installing the left crank
146.
Grease the square of the inner bearing axle and fit the crank.
An inexact tightening torque for the right crank bolt can alter the line of the belt.
147.
Attach the trim ring and tighten the crank with a size 8 Allen wrench and a
torque of 39 Nm.
