BionX Smart - Page 37

RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
37/58

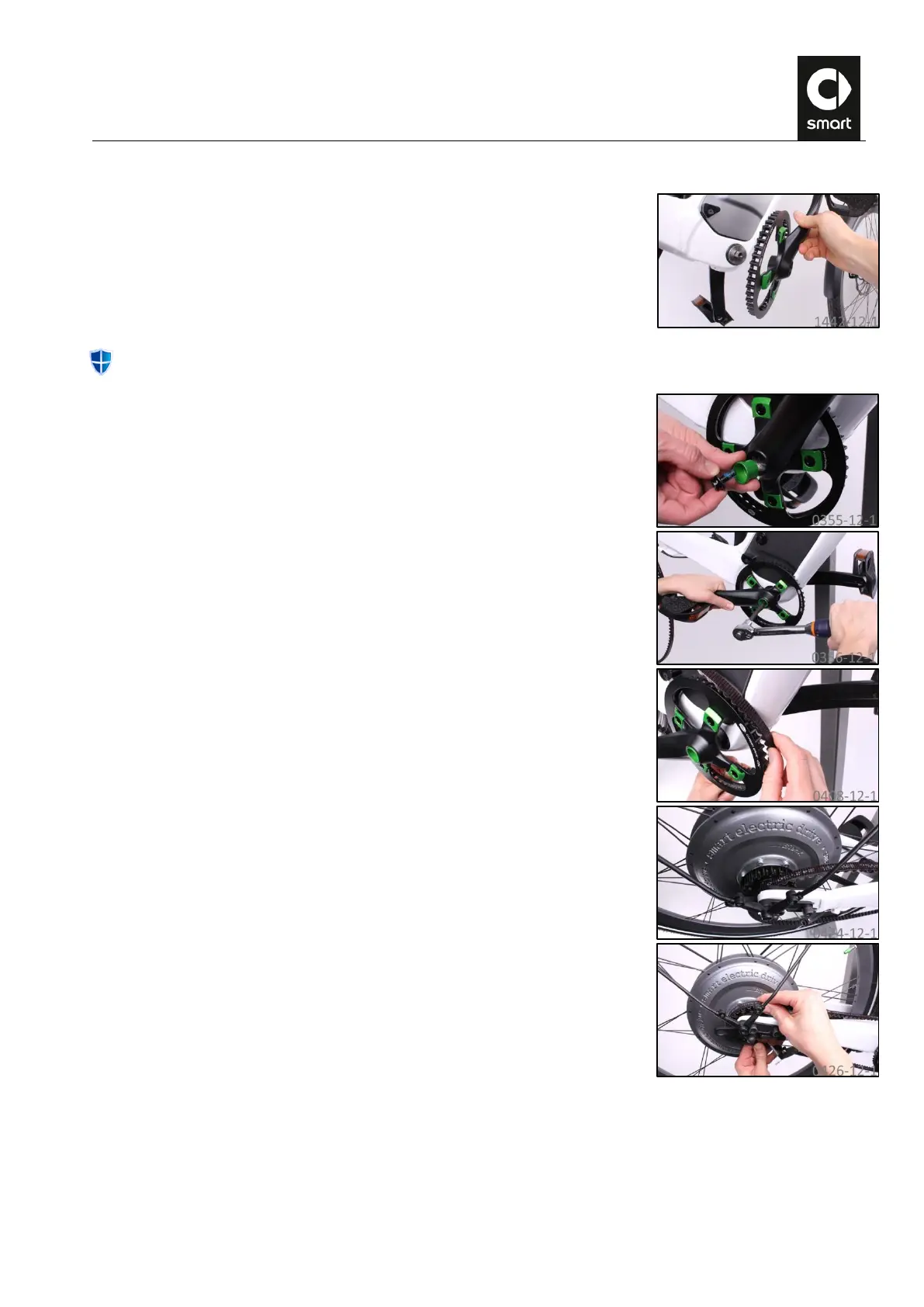

GG. Installing the right crank
148.
Grease the square of the inner bearing axle and fit the crank.
An inexact tightening torque for the right crank bolt can alter the line of the belt.
149.
Attach the trim ring and tighten the crank with a size 8 Allen wrench and a
torque of 39 Nm.
150.
Hang the belt beside the rear belt pulley at first, and then fit it onto the front
belt pulley.
151.
Carefully guide the belt onto the rear belt pulley.
