RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
38/58

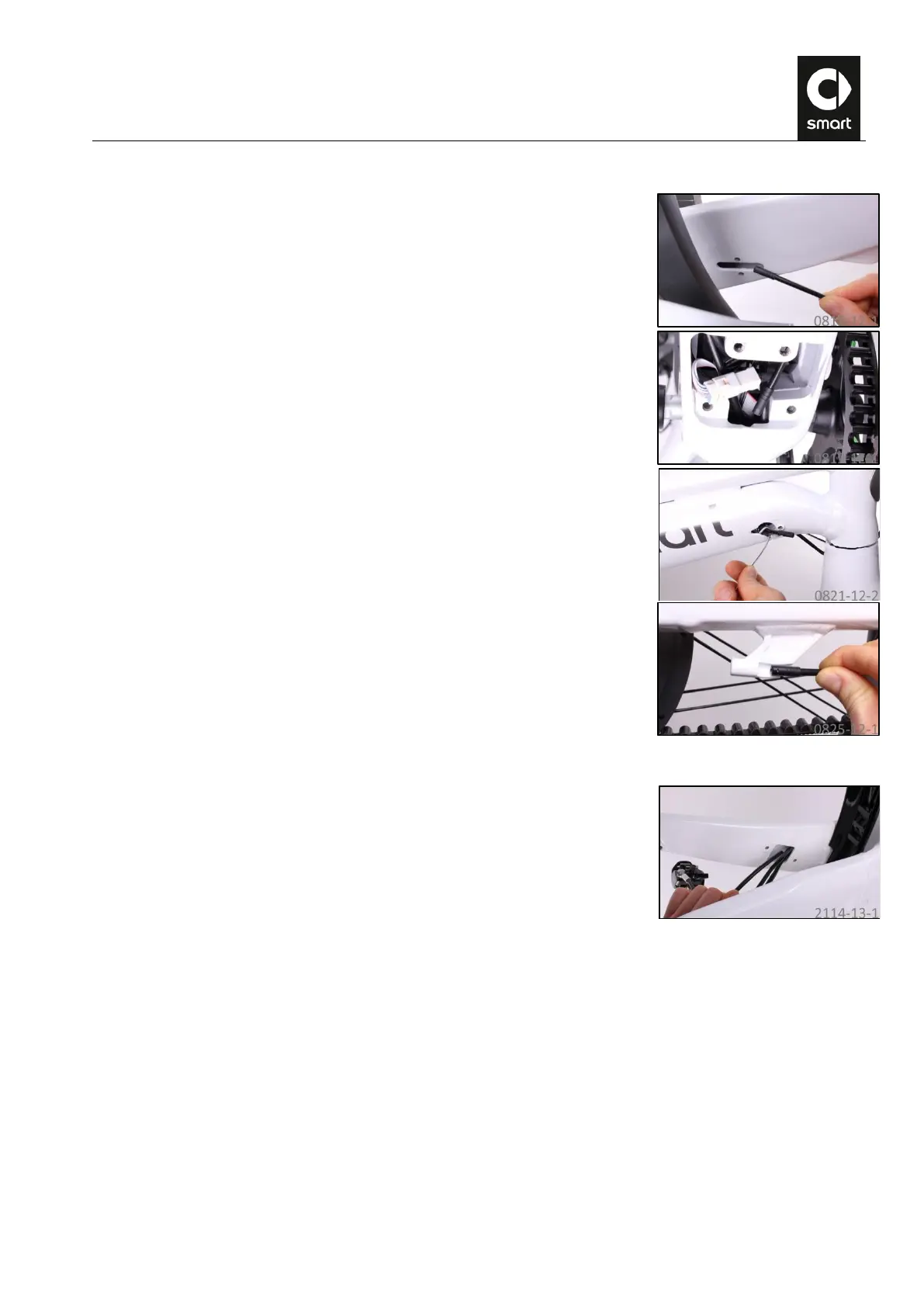

HH. Installing the shift sleeve
Attach end caps to the new shift sleeve and push it through the right cable
outlet towards the bottom bracket.
Feed the shift sleeve under the bottom bracket into the downtube of the frame.
Use a hook to pull the end of the shift sleeve out of the cable outlet on the right
side of the downtube.
Feed the end of the shift sleeve into the cable stop on the right rear stay.
II. Installing the right brake line
Push the brake line into the cable outlet of the right rear stay.
Grip the brake line in the frame opening under the inner bearing and push it
through to the right cable outlet of the downtube.
