BionX Smart - Guide Rear Wheel into Dropouts; Tighten Axle Nuts

RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
41/58
168.

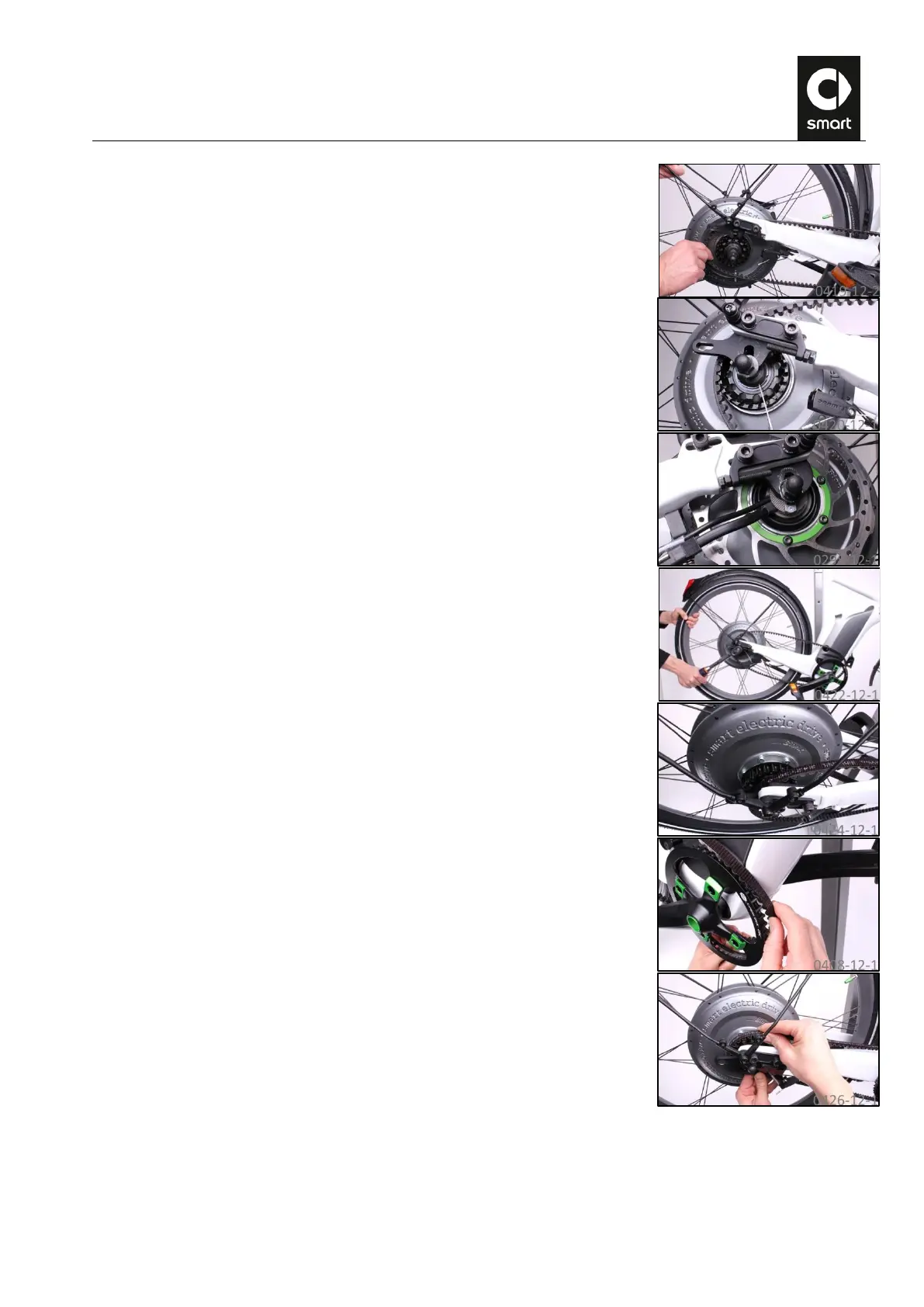

Guide the rear wheel into the dropouts. Take care not to crush the belt. Also
make sure that the anti-twist lock of the tooth lock washer is correctly aligned
relative to the dropout. The brake disc must be inserted between the brake
pads.
169.
When the axle is seated all the way in the dropouts on both sides, tighten the
axle nuts to a torque of 40 Nm.
170.
Hang the belt beside the rear belt pulley at first, and then fit it onto the front
belt pulley.
171.
Carefully guide the belt onto the rear belt pulley.
