RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
43/58

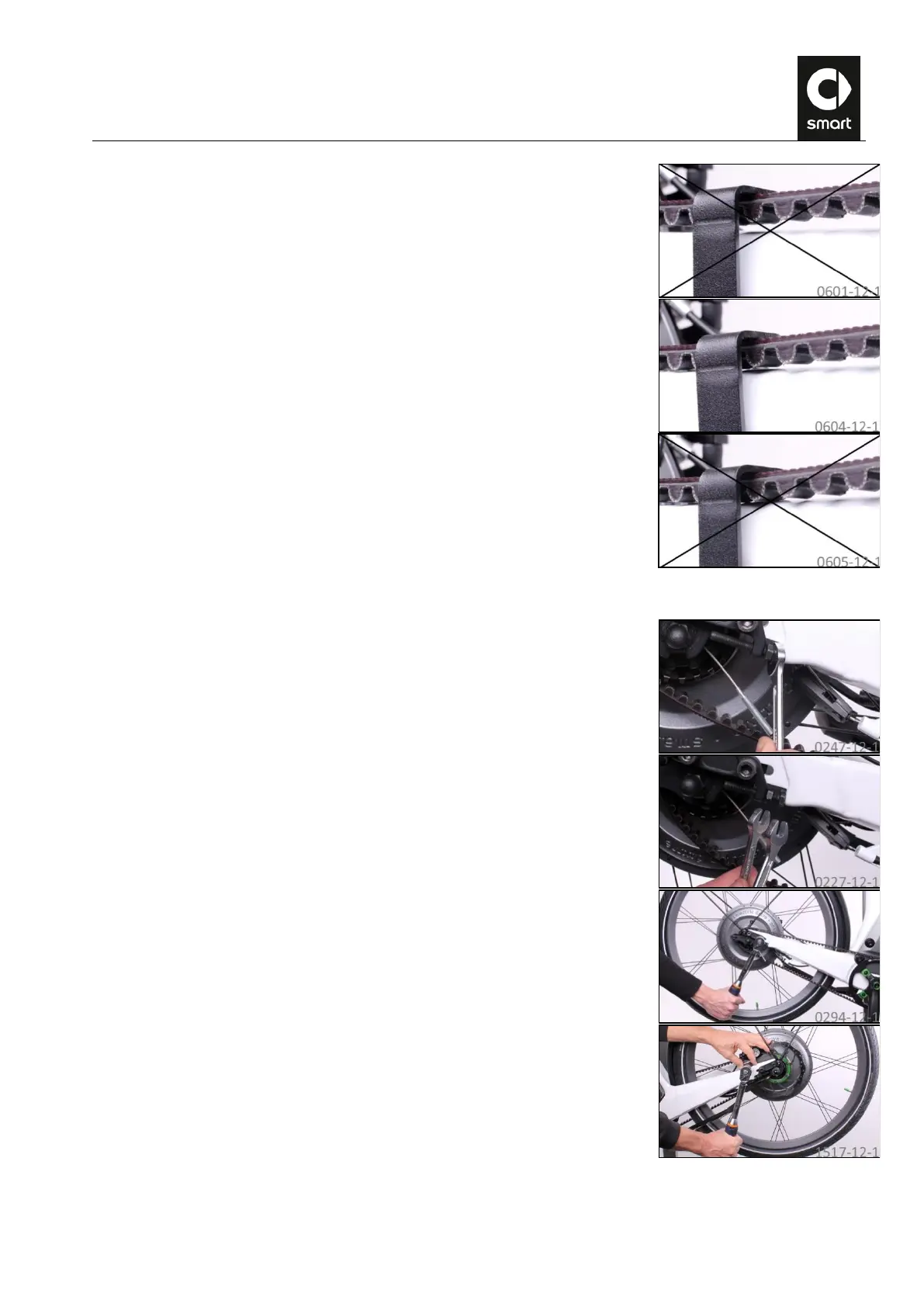

The correct belt tension is achieved when the belt just touches the top of the
chain stay with one tooth.
Since the tension can vary slightly along the length of the belt, this procedure
should be performed again at intervals along the belt. To do this, rotate the
crank by ¼ turn at a time and repeat the measurement.
If necessary, correct the tension and the line of the belt using the axial
adjustment bolts at the dropouts and recheck the belt tension.
Counter the nut on the axial adjustment bolt so that the position of the bolt is
fixed.
Tighten the four bolts at the dropouts to a torque of 22 Nm. Hold the shim on
the brake torque support of the left rear stay in position and tighten the bolt
to a torque of 15 Nm.
