BionX Smart - Page 46

RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
46/58

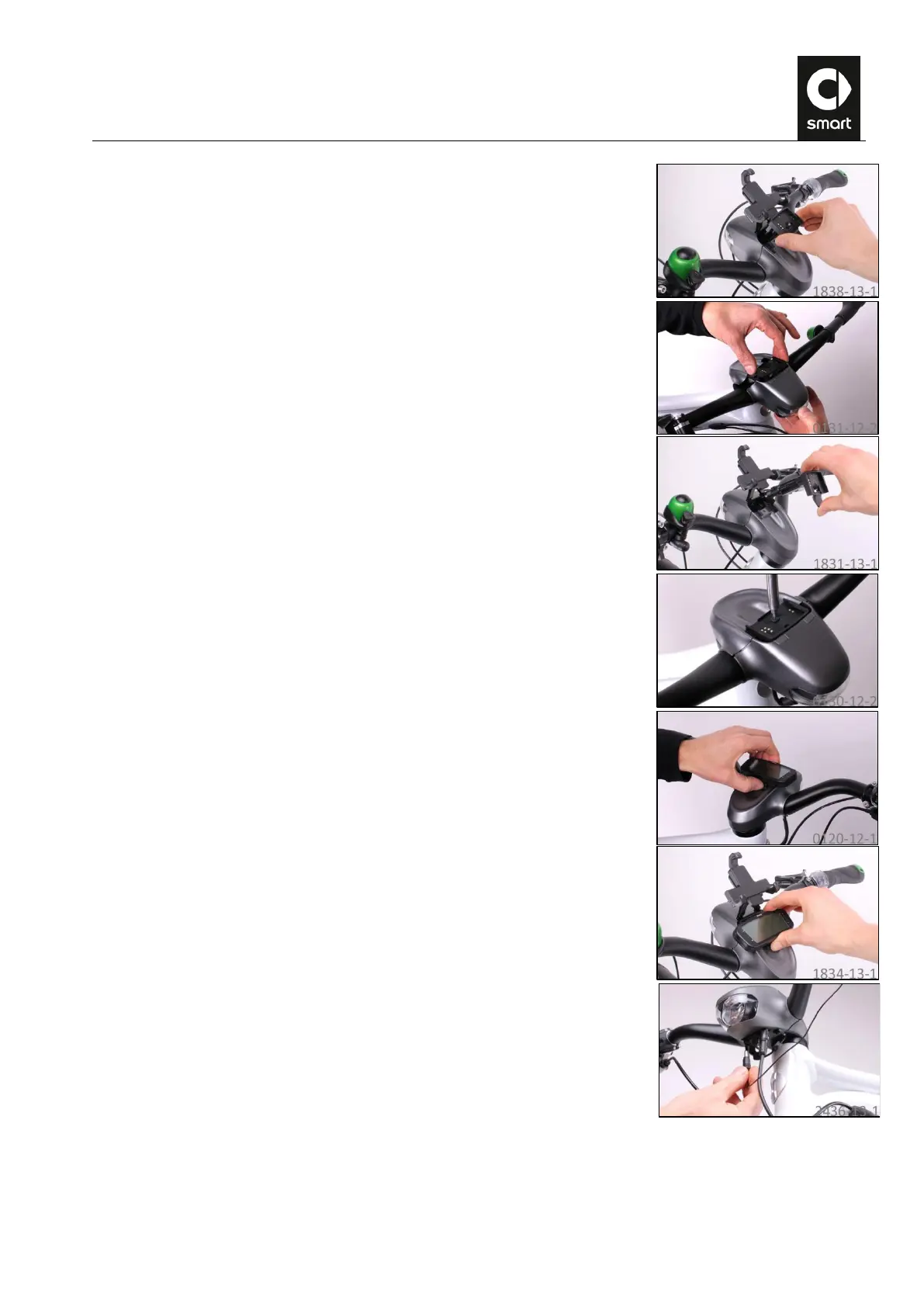

195.
Carefully push the control console cradle all the way into the stem assembly.
196.
Tighten the bolt in the control console cradle with a T20 Torx wrench and a
torque of 2 Nm.
197.
Push the control console into the control console cradle and connect the data
cable to the jack underneath the stem assembly.
198.
Plug the connectors of the brake sensor cable and the data cable into the
control console cradle.
