RL39 - Repair instructions for changing the frame
Version 1.0, last revised 03/2016
9/58

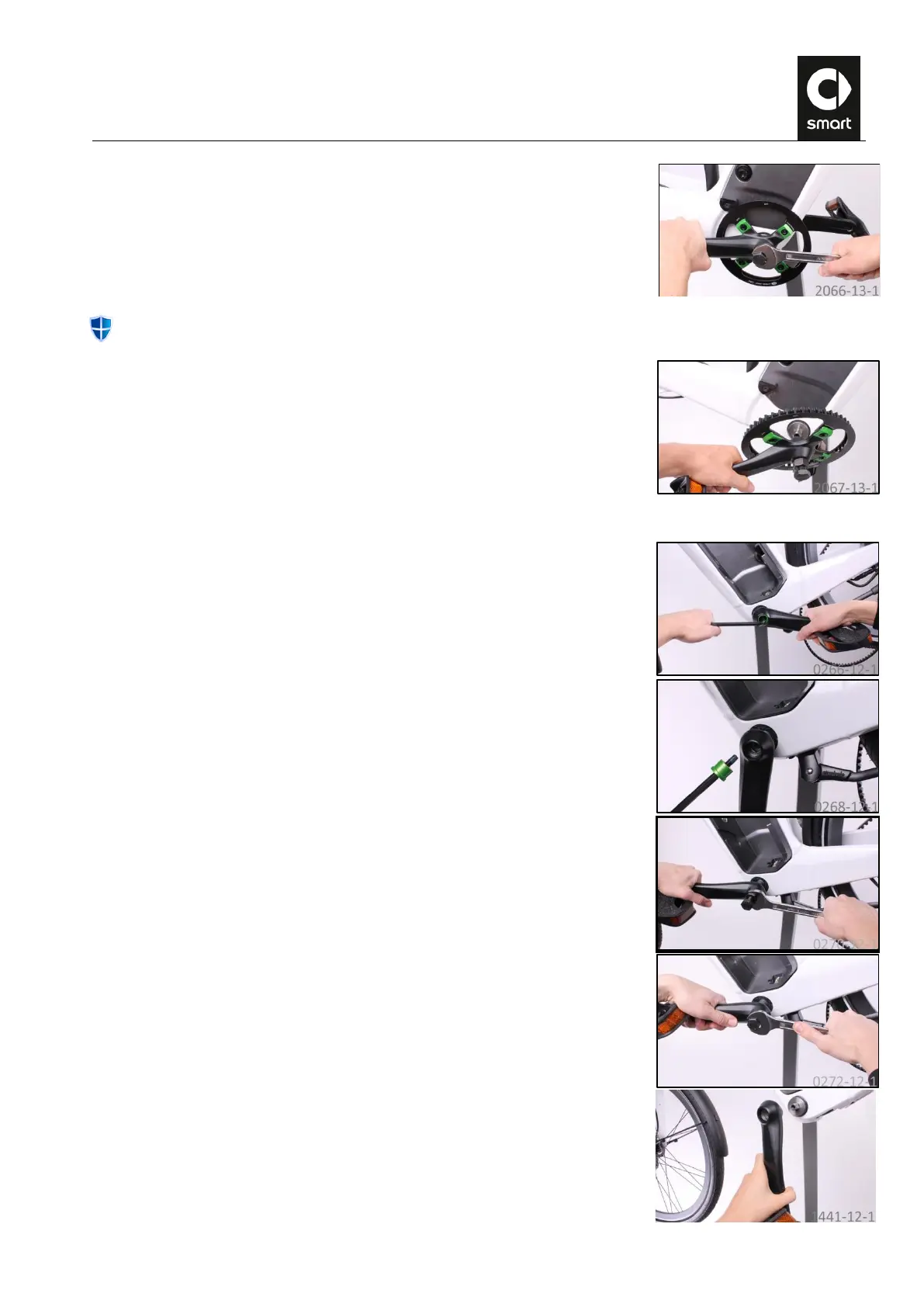

21.
Remove the crank by turning the puller screw of the crank remover clockwise.
Always observe the notes on handling the belt.
22.
Take the crank off the axle.
G. Removing the left crank
23.
Undo the crank bolts using a size 8 Allen wrench and remove them and the trim
sleeve.
24.
Grease the crank thread and screw the crank remover clockwise all the way in
finger-tight. Make sure when doing this that the puller screw is unscrewed as
far as the stop.
25.
Remove the crank by turning the puller screw of the crank remover clockwise.
26.
Remove the crank remover and take the crank off the axle.
