Step 3

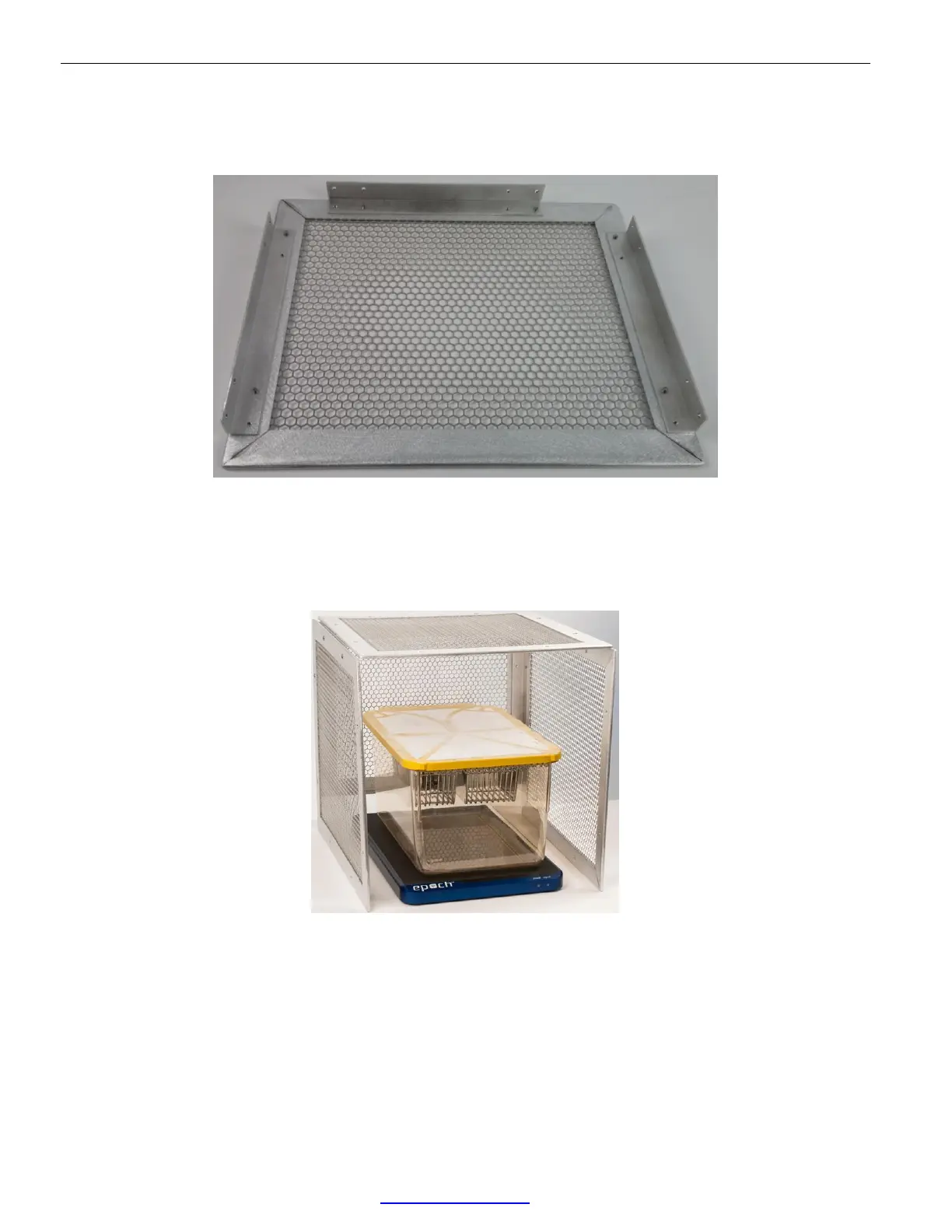

Attach the three remaining L-brackets to the smaller back panel as shown in Figure 24 below. For the top L-bracket,
use one outer tapped hole and one inner tapped hole, similar to Step 1. For the two side L-brackets, be sure to use the
outer tapped hole on the side of the L-bracket closest to the top L-bracket, as shown in Figure 24.
Figure 24. Step 3 - Back panel with attached L-brackets
Step 4
Complete the Faraday shield assembly by attaching the back panel to either end of the three long panels. When
complete, the Faraday shield should look like Figure 25 below. Connect the assembled Faraday shield to the receiver
tray using the banana plug to alligator clip cable included with the Epoch system.
Figure 25. Completed Faraday shield assembly
