Chapter 2: Hardware installaon | 11
A70MD PRO / A68MD PRO / A70MG PRO

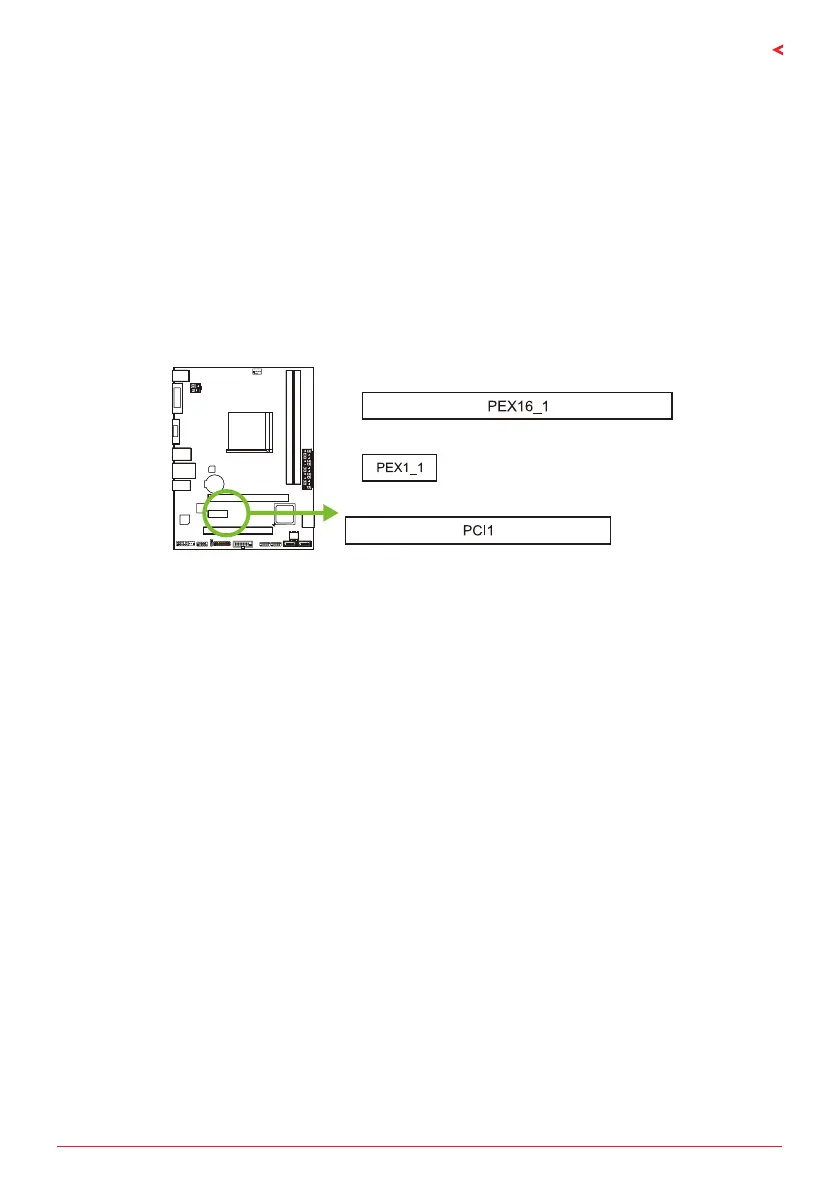

2.5 Expansion Slots
PEX16_1: PCI-Express Gen3 x16 Slot
• PCI-Express 3.0 compliant.
• Maximum theorecal realized bandwidth of 16GB/s simultaneously per direcon, for an
aggregate of 32GB/s totally.
PEX1_1: PCI-Express Gen3 x1 Slot
PCI-Express 3.0 compliant.•
Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total•
PCI1: Peripheral Component Interconnect Slot
This motherboard is equipped with 1 standard PCI slot. PCI stands for Peripheral •
Component Interconnect, and it is a bus standard for expansion cards.
Install an Expansion Card
You can install your expansion card by following steps:
• Read the related expansion card’s instrucon document before install the expansion
card into the computer.
• Remove your computer’s chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card unl it is completely
seated in the slot.
• Secure the card’s metal bracket to the chassis back panel with a screw.
• Replace your computer’s chassis cover.
• Power on the computer, if necessary, change BIOS sengs for the expansion card.
• Install related driver for the expansion card.
