Motherboard Manual
6

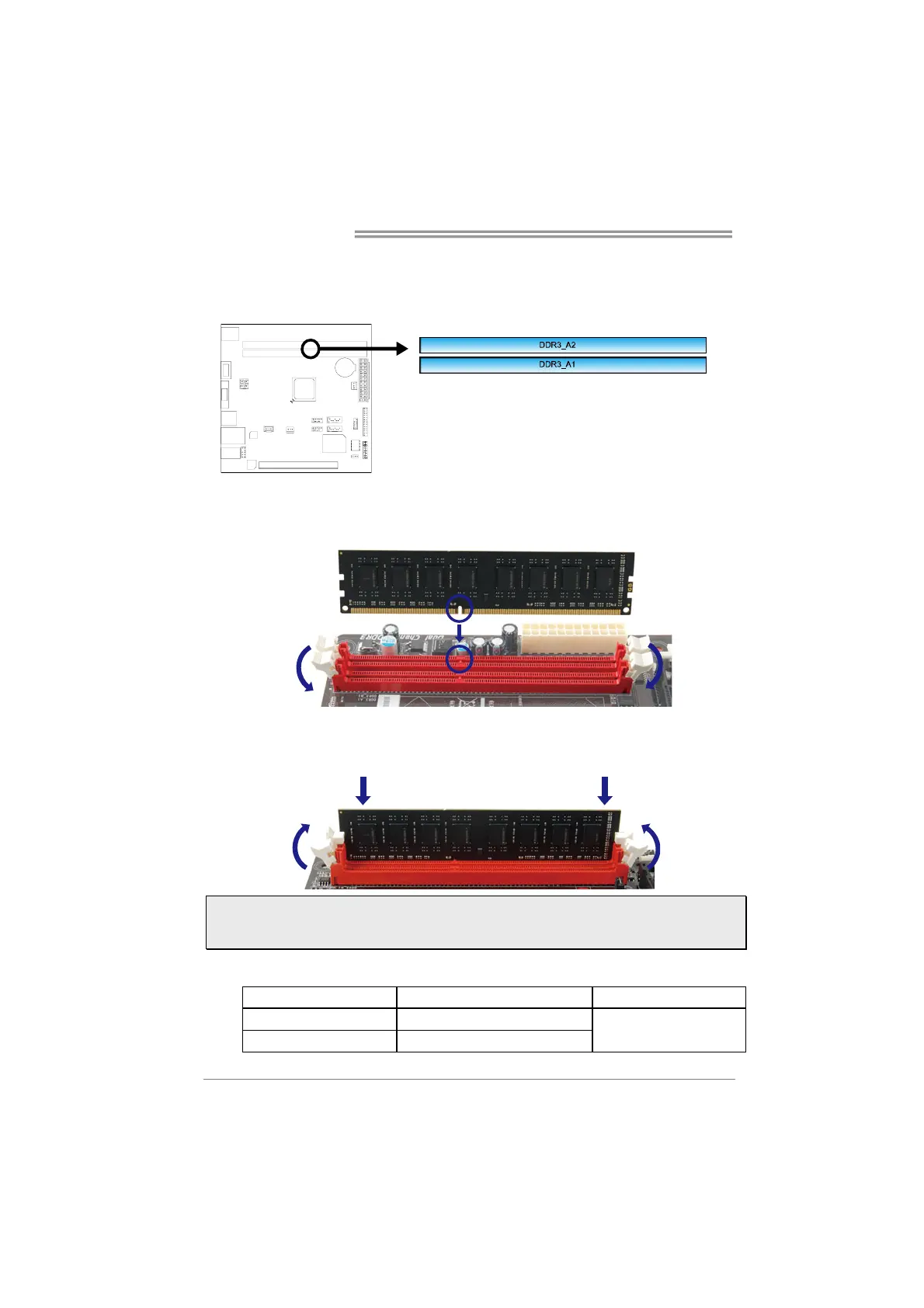

2.2 Install System Memory
A. DDR3 Modules
Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM
on the slot such that the notch on the DIMM matches the break on the slot.
Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips
snap back in place and the DIMM is properly seated.
Note1: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.
Note2: When two double-sided DDR3 1600 DIMMs are both installed to the slots, the memory
speed will be down to DDR3 1333.
B. Memory Capacity
DIMM Socket Location
DDR3 Module
Total Memory Size
DDR3_A1 512MB/1GB/2GB/4GB/8GB
DDR3_A2 512MB/1GB/2GB/4GB/8GB
Max is 16GB.
