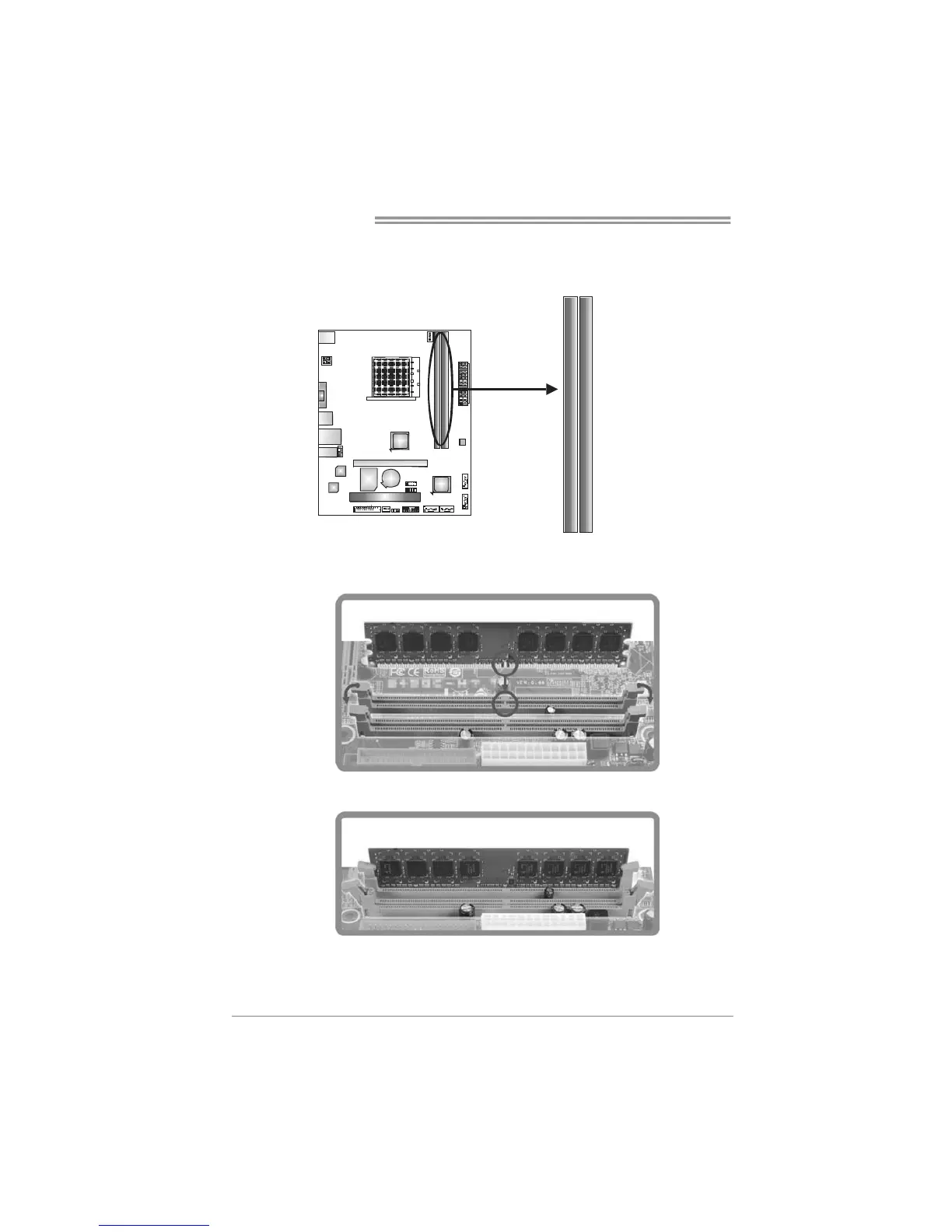

2.3 INSTALLING SYSTEM MEMORY
A. Memory Modules
D3_B1DR D3_1DR A
1. Unlock a DIMM slot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.
2. Insert the DIMM vertically and firmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.
