A780L3C2
11
B. Memory Capacity
DIMM Socket
Location
DDR3 Module
Total Memory
Size
DDR3_A1 512MB/1GB/2GB/4GB/8GB
Max is 16GB.
DDR3_B1 512MB/1GB/2GB/4GB/8GB
C. Dual Channel Memory installation
Please refer to the following requirements to activate Dual Channel function:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status
DDR3_A1
DDR3_B1
Disabled O X
Disabled X O
Enabled O O
(O means memory installed, X means memory not installed.)
Note: When installing more than one memory module, we recommend to use the same
brand and capacity memory on this motherboard.

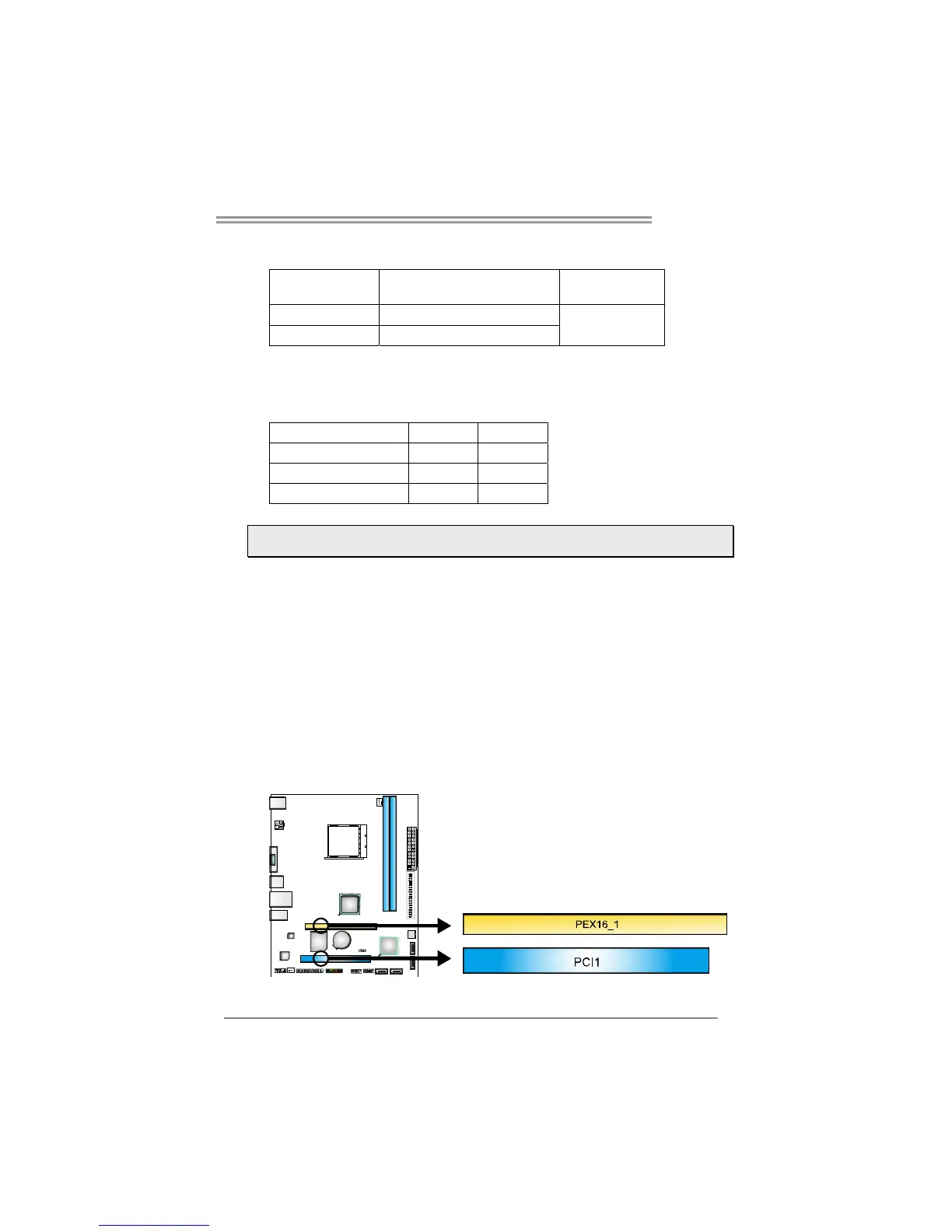

2.5 Expansion Slots
PEX16_1: PCI-Express X16 Slot
- PCI-Express 2.0 compliant.
- Maximum theoretical realized bandwidth of 4GB/s simultaneously per
direction, for an aggregate of 8GB/s totally.
- PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins.
PCI1: Peripheral Component Interconnect Slot
- This motherboard is equipped with 1 standard PCI slot. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for expansion
cards. This PCI slot is designated as 32 bits.
