CHAPTER 2: HARDWARE INSTALLATION
2.1 Install Central Processing Unit (CPU)

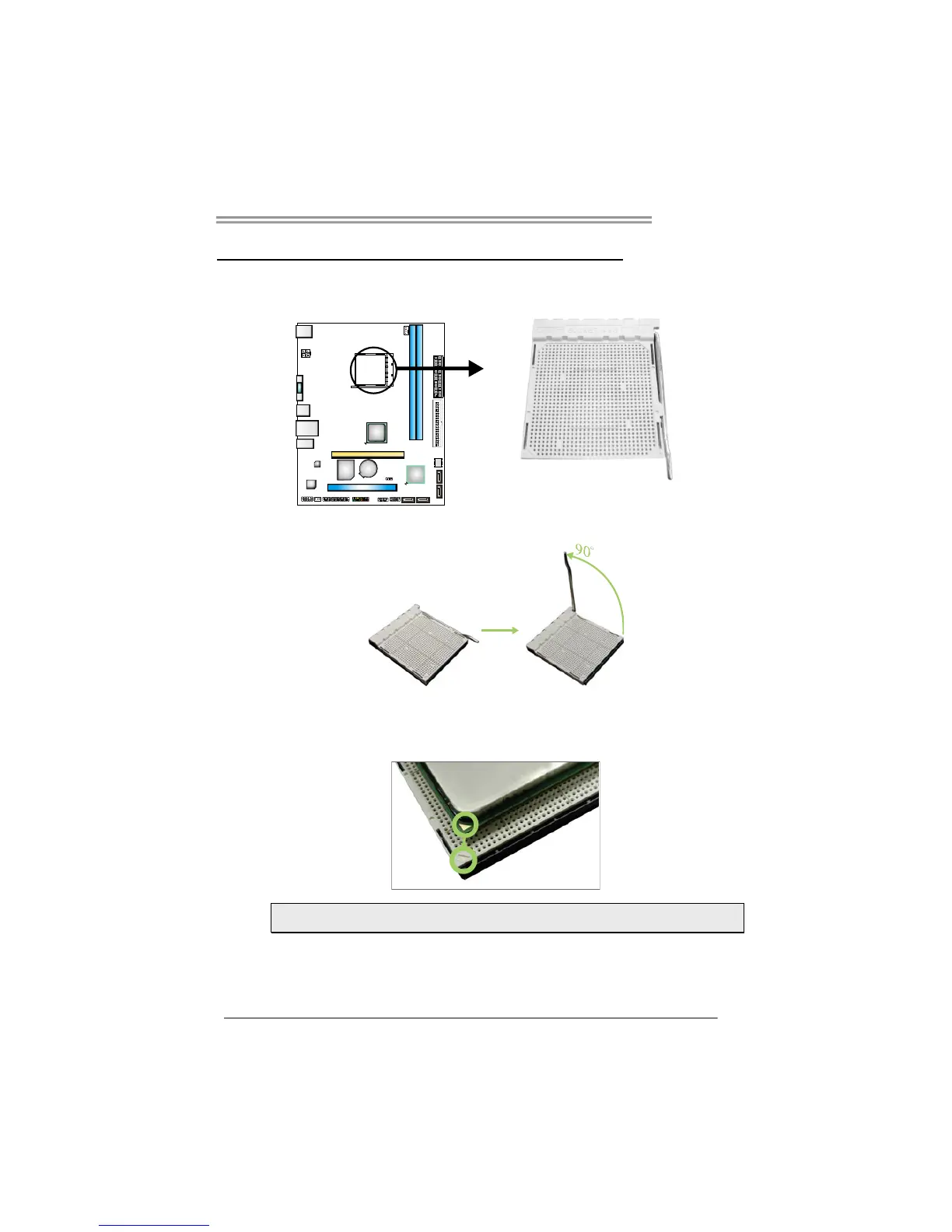

Step 1: Locate the CPU socket on the motherboard
Step 2: Pull the socket locking out from the socket and then raise the lever up to a
90-degree angel.
Step 3: Look for the white triangle on socket, and the gold triangle on CPU should
point towards this white triangle. The CPU will fit only in the correct
orientation.
Note: The CPU fits only in one correct orientation. Do not force the CPU into the socket
to prevent damaging the CPU.
