2.3 Expansion Slots

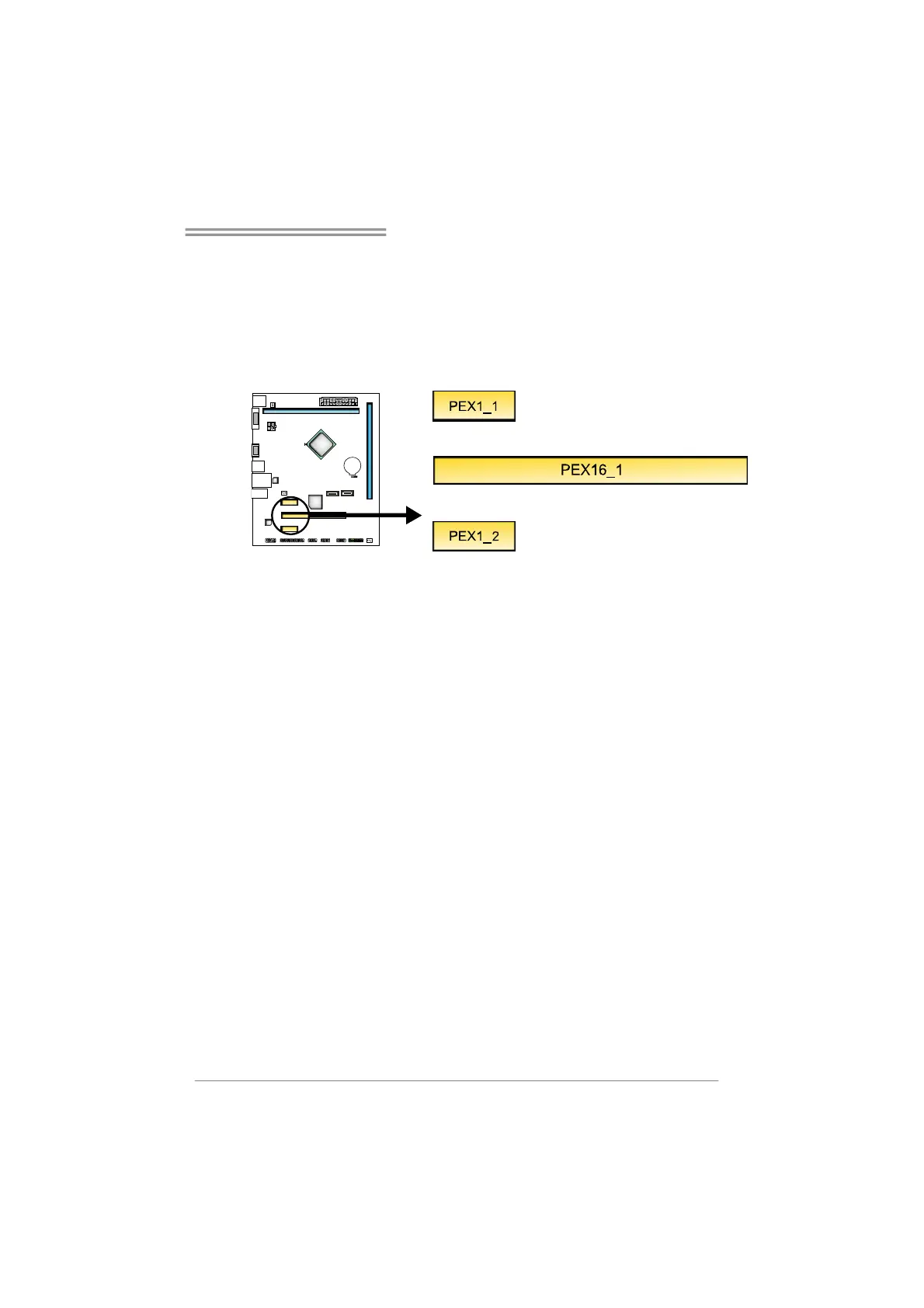

PEX16_1: PCI-Express Gen2 x16 Slot (@ x1 speed)
PEX1_1/PEX1_2: PCI-Express Gen2 x1 Slot
- PCI-Express 2.0 compliant.
- Data transfer bandwidth up to 500MB/s per direction; 1GB/s in total.
Install an Expansion Card
You can install your expansion card by following steps:
1. Read the related expansion card's instruction document before
install the expansion card into the computer.
2. Remove your computer's chassis cover, screws and slot bracket
from the computer.
3. Place a card in the expansion slot and press down on the card until it
is completely seated in the slot.
4. Secure the card’s metal bracket to the chassis back panel with a
screw.
5. Replace your computer's chassis cover.
6. Power on the computer, if necessary, change BIOS settings for the
expansion card.
7. Install related driver for the expansion card.
