Biostar K8M800 MICRO AM2 Bios Setup Manual

K8M800 Micro AM2 BIOS Setup
21
LDT & PCI Bus Control
If you highlight the literal “Press Enter” next to the “LDT & PCI Bus Control” label and then
press the enter key, it will take you a submenu with the following options


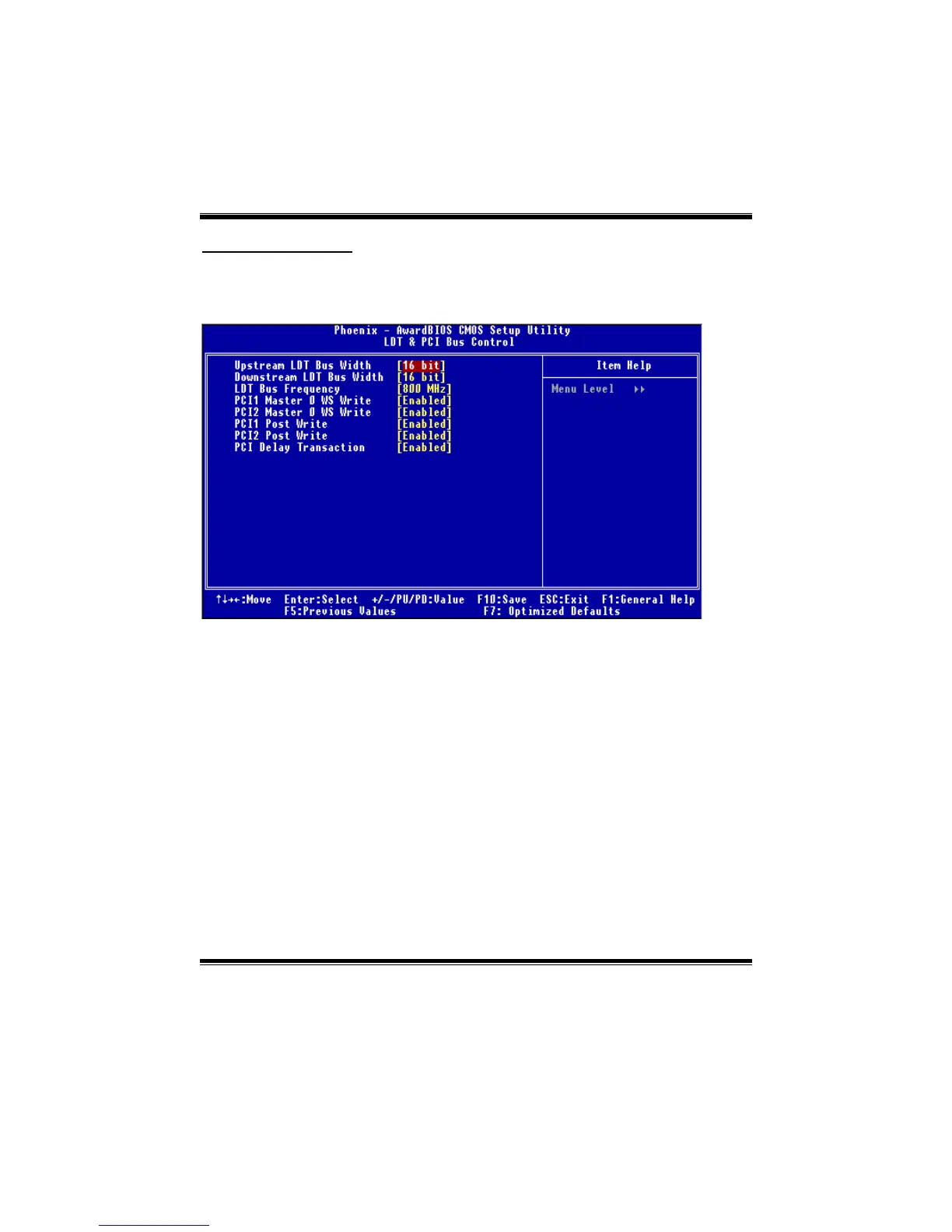

: Figure 4.3: LDT & PCI Bus Control
Upstream LDT Bus Width
The Choices: 8 bit, 16 bit
(default).
Downstream LDT Bus Width
The Choices: 8 bit, 16 bit (default).
LDT Bus Frequency
The Choices: 800MHz (default)., Auto, 600MHz, 400MHz, 200MHz.
PCI1 Master 0 WS Write
When enabled, writes to the PCI bus are executed with zero-wait states.
The Choices: Enabled (default), Disabled.
PCI2 Master 0 WS Write
When enabled, writes to the PCI bus are executed with zero-wait states.
The Choices: Enabled (default), Disabled.

Biostar K8M800 MICRO AM2 Specifications

General

Brand	Biostar
Model	K8M800 MICRO AM2
Category	Motherboard
Language	English
