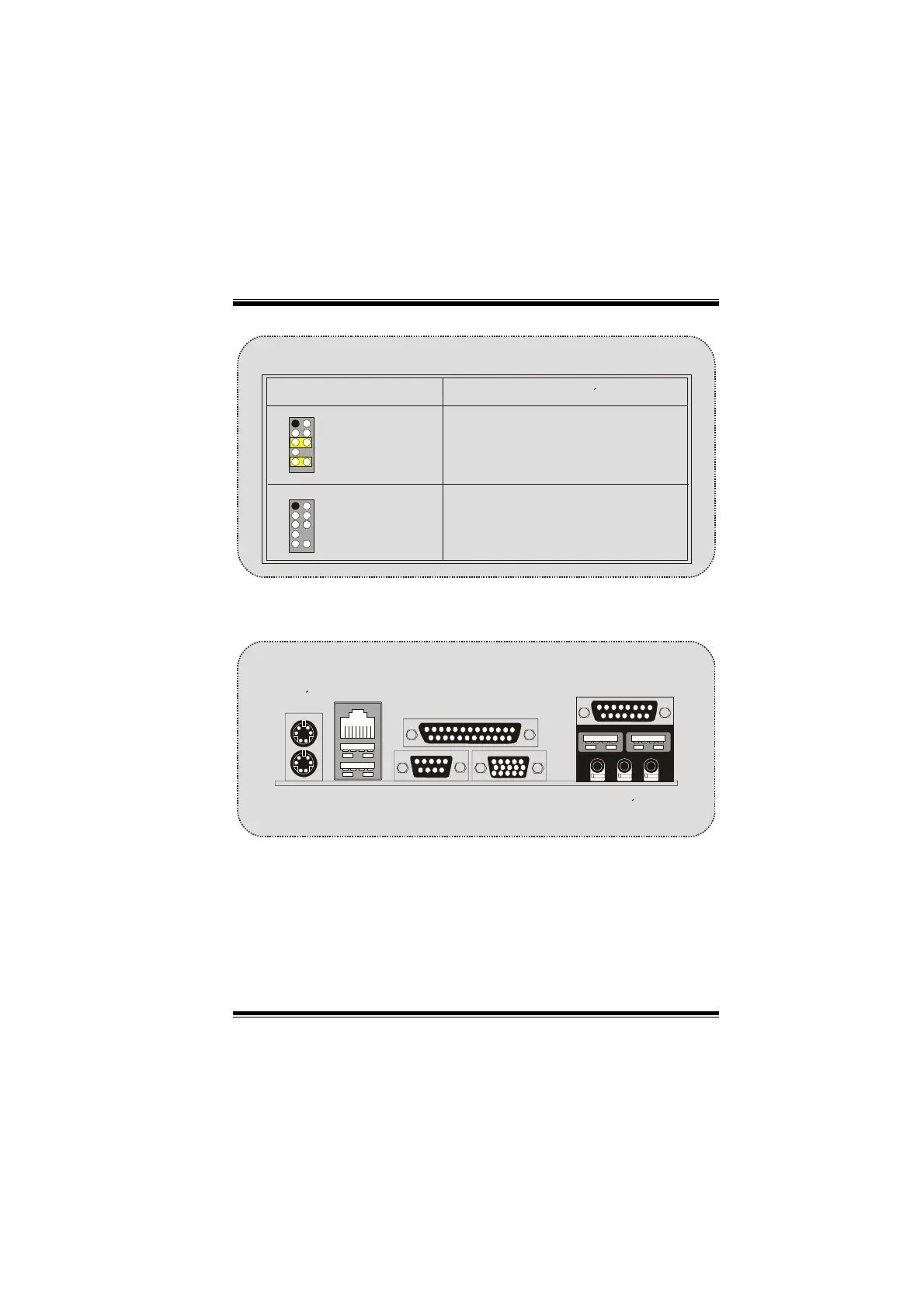

Conectores del Panel Trasero
Teclado
PS/2
Raton
PS/2
COM1
Paralelo
Puerto de Juego/
Puertos USB (opcional)
JPRNT1
JGAME1_USB1
JCOM1
JKBMS1
USB
LAN(Opcional)
RJ45USB1
COM1
Salida del
Altavoz
Entrada
de Linea
Entrada de
Mic
JVGA1
VGA1
12
Conector del Panel Frontal de Audio/ Jumper Block
9
10
La senal de salida de linea del Audio
encamina al conector de la salida de linea
del Audio ubicado en el panel trasero.
Contacto 5 & 6
Contacto 9 & 10
La senal de salida de linea del Audio y la
senal del entrada del mic estan disponibles
desde el conector de Audio del
panel frontal.
3
5
7
4
6
12
9
10
3
5
7
4
6
No jumpers
installed
Jumper Setting Configuracion
~
~
~
