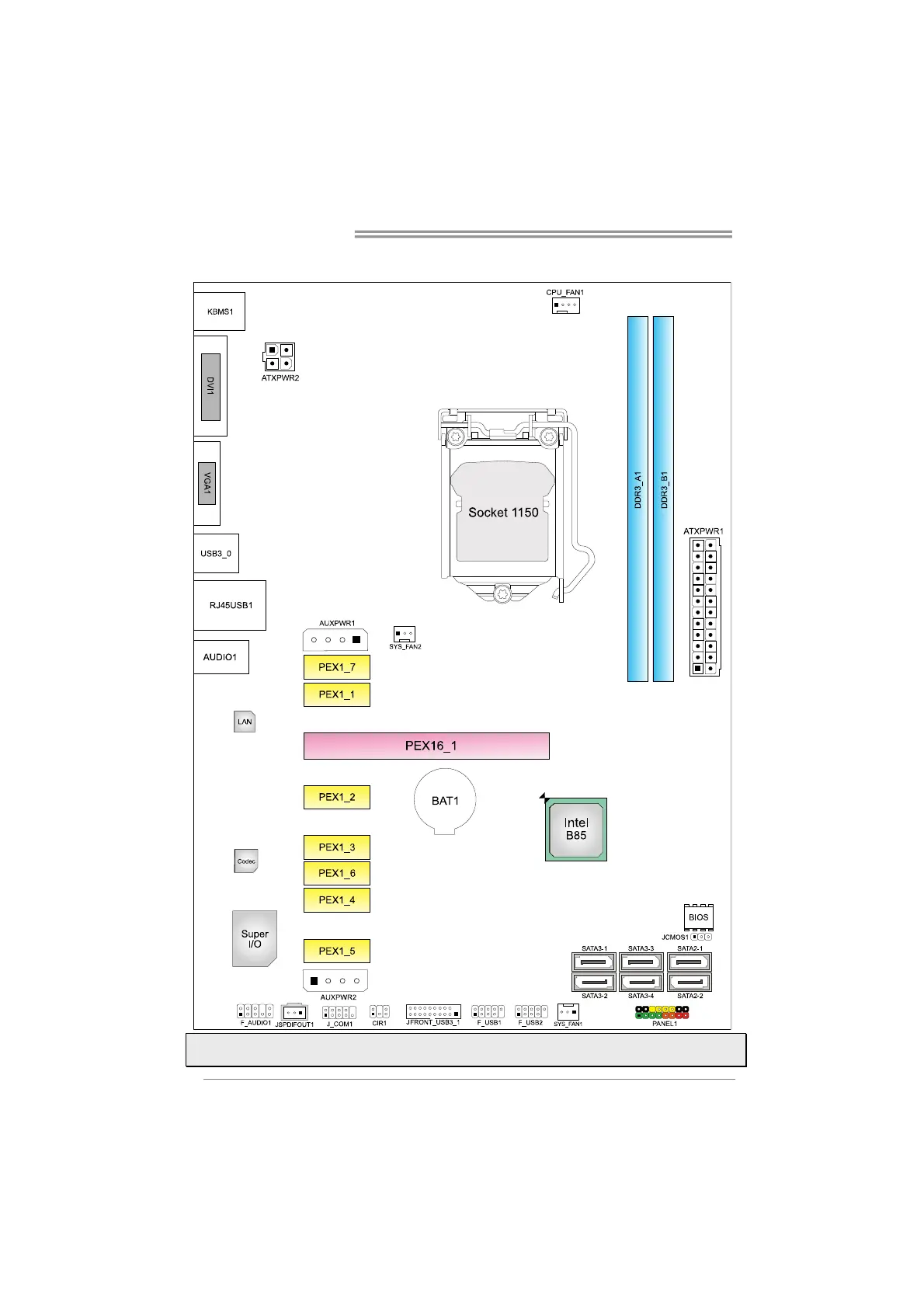

1.5 Motherboard Layout
Note1: represents the 1
st
pin.
Note2: PEX1_6 & PEX1_7 are only for TB85-BTC.
