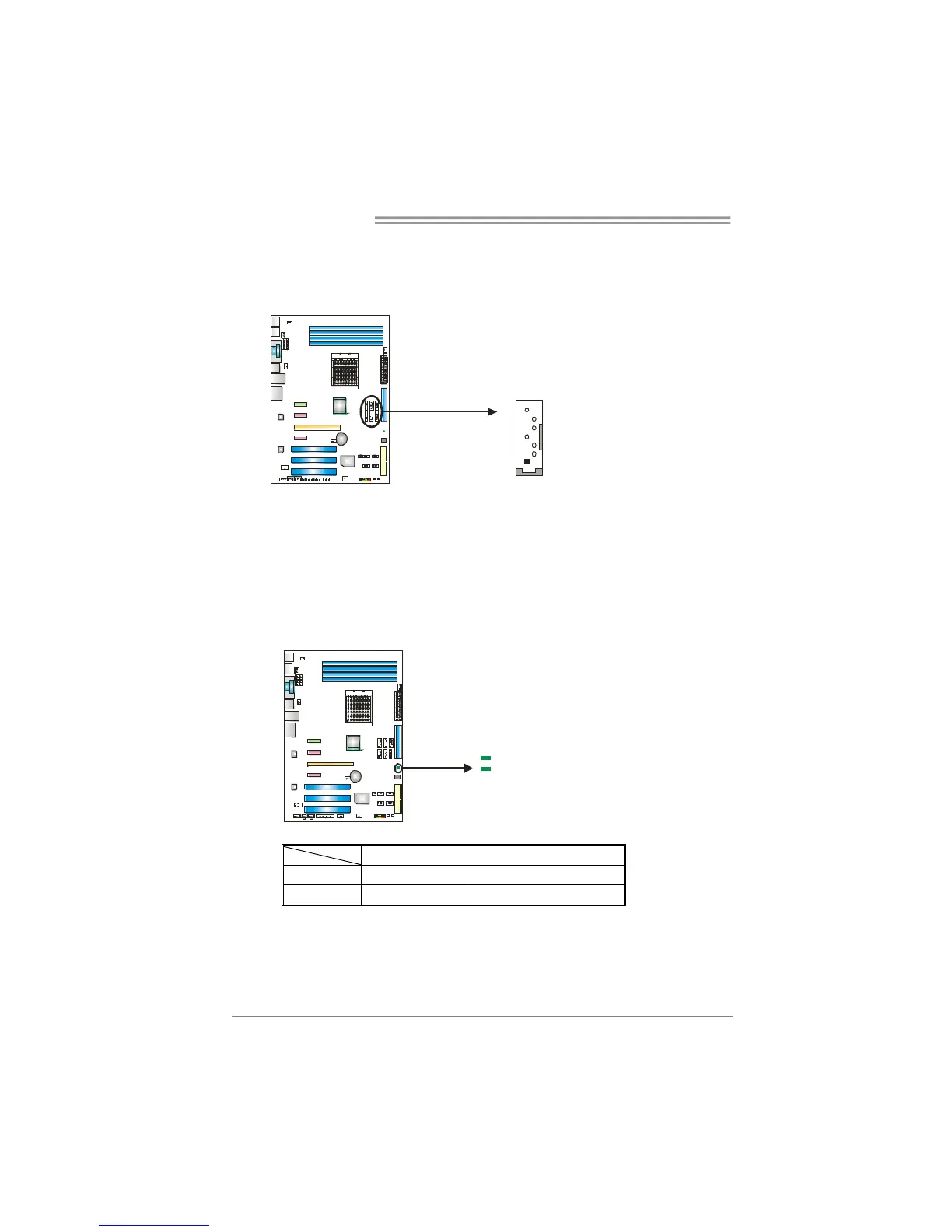

SATA1~SATA6: Serial ATA Connectors
The motherboard has a PCI to SATA Controller with 6 channels SATA interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
1
4
7
SATA1 SATA2
SATA3 SATA4
SATA5 SATA6
7 Ground
Note:
Due to the chipset's specification, SATA5 and SATA6 do not support SATA mode, only
support AHCI+RAID mode.
On-Board LED Indicators
There are 2 LED indicators on the motherboard to show system status. Each
LED represents different system item, and lighted LED means that system item
is in normal status.
LED_D2
LED_D3
LED Status Meaning
LED_D2
OFF
Memory Error
LED_D3
OFF
VGA Error
