Motherboard Manual
20

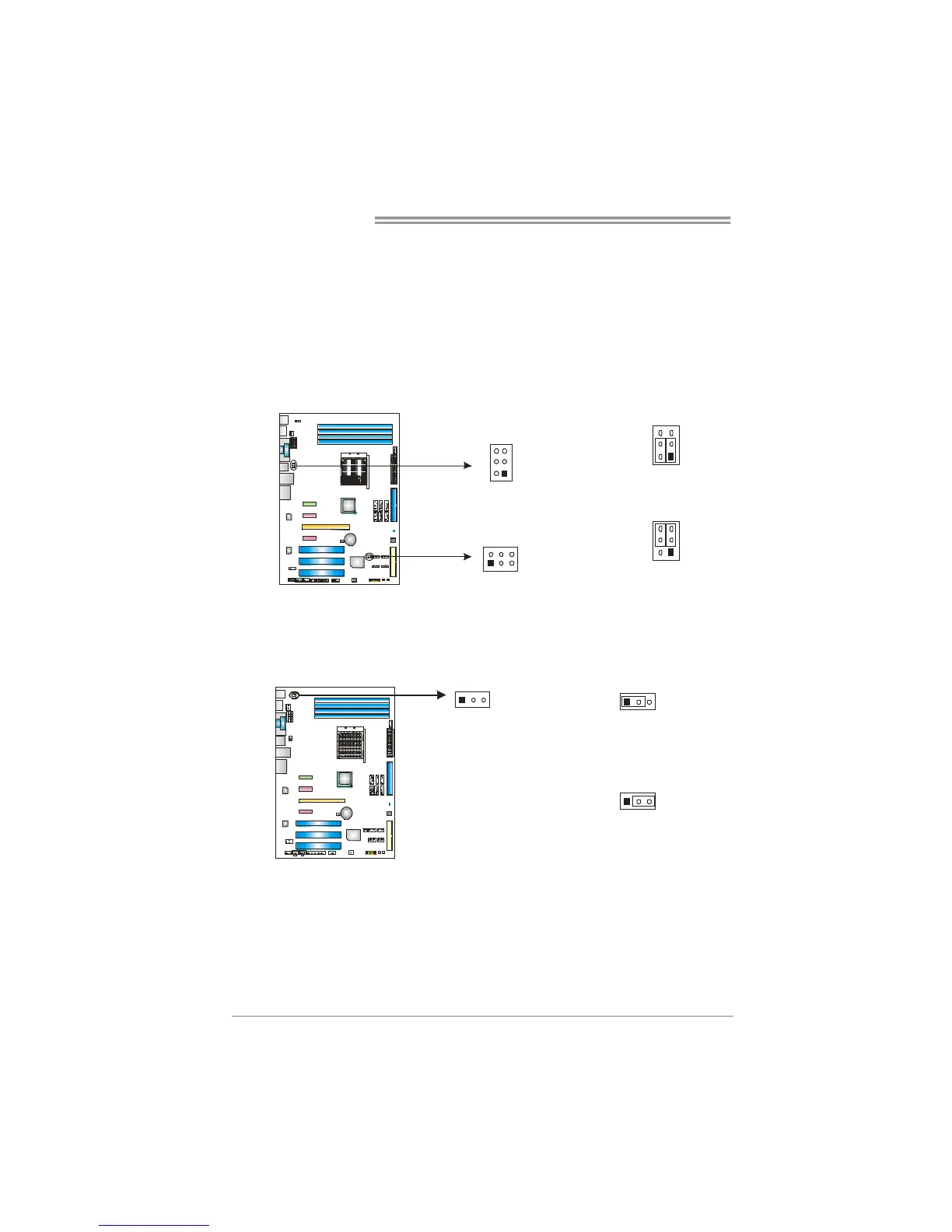

JUSBV1/JUSBV2: Power Source Headers for USB Ports
Pin 1-3 & Pin 2-4 Close:
JUSBV1: +5V for USB ports at JUSB5/JUSBLAN1.
JUSBV2: +5V for USB ports at front panel (JUSB1~JUSB4).
Pin 3-5 & Pin 4-6 Close:
JUSBV1: +5V STB for USB ports at JUSB5/JUSBLAN1.
JUSBV2: +5V STB for USB ports at front panel (JUSB1~JUSB4).
1
5
2
6
Pin 1-3 & 2-4 close
1
5
JUSBV1
2
6
15
26
JUSBV2
1
5
2
6
Pin 3-5 & 4-6 close
JKBV1: Power Source Header for PS/2 Keyboard and Mouse
13
Pin 1-2 close
+5V for PS/2 keyboard and
mouse.
13
13
Pin 2-3 close
+5V STB for PS/2 keyboard
and mouse.
