TZ77XE3/TZ75XE3
11

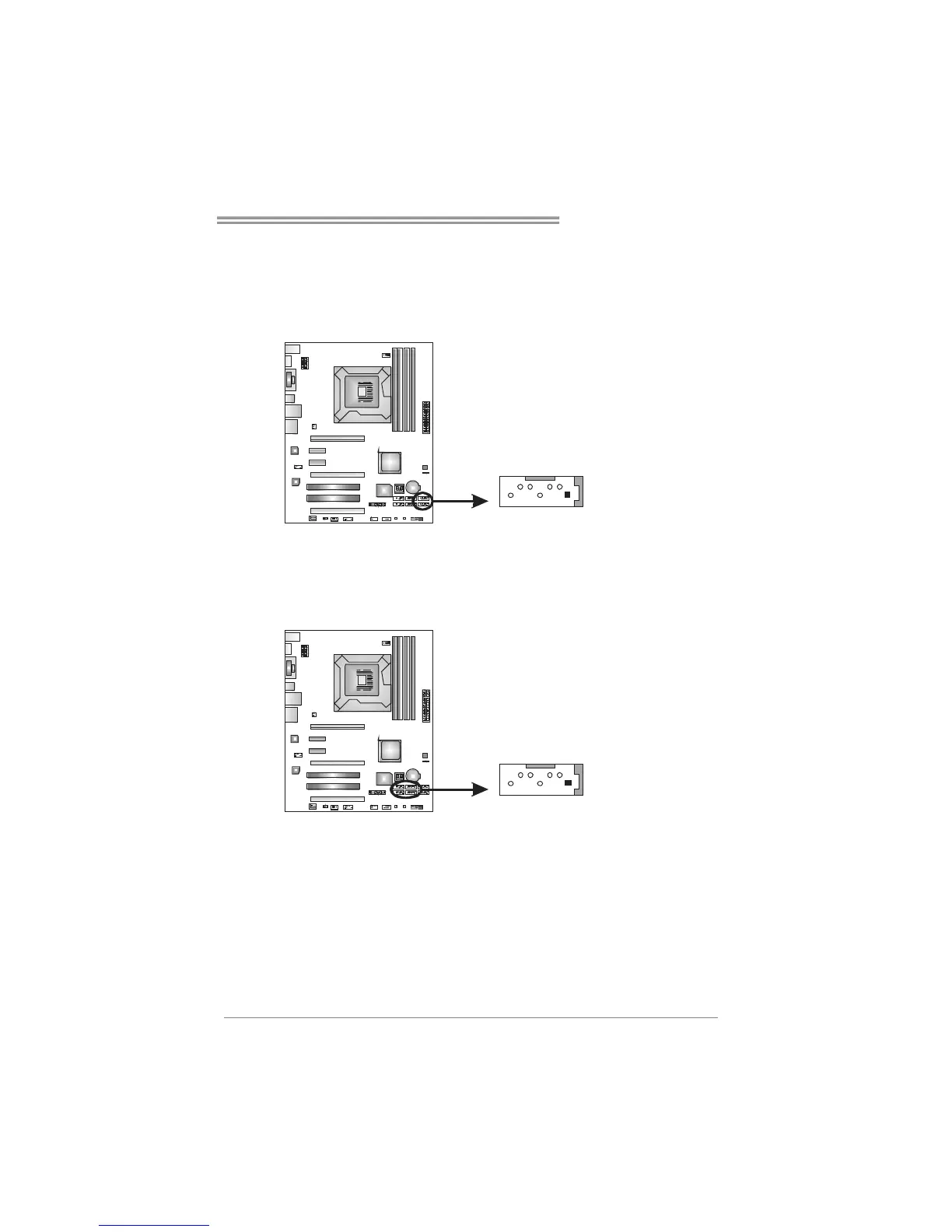

2.4 CONNECTORS AND SLOTS
SATA1/SATA2: Serial ATA3.0 Connectors
The motherboard has a PCI to SATA Controller with 2 channels SATA interface,
it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.
147
SATA2
SATA1
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
SATA3 ~ 6: Serial ATA2.0 Connectors
The motherboard has a PCI to SATA Controller with 4 channels SATA2 interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
147
SATA 6 S ATA 4
SATA 5 S ATA 3
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
