Chapter 2: Hardware installaon | 9

X470GTQ

<TypeB>

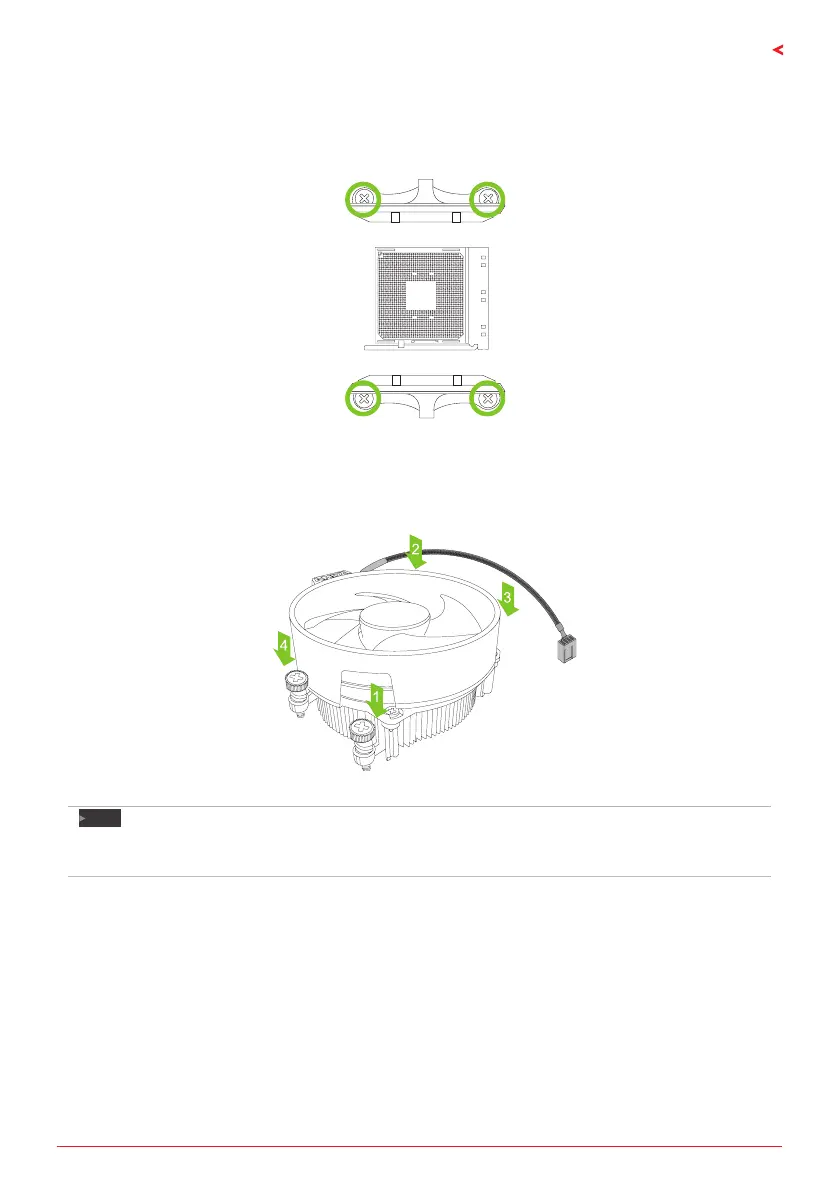

Step 1: Remove the heatsink and fan assembly bracket on the motherboard and keep the

cooler backplane under the motherboard.

Step 2: Place the heatsink and fan assembly on top of the installed CPU and make sure that the

fan cable is closest to the CPU fan connector. Please refer diagram to the following screw into

the screw hole in the order shown.

Note



DonotforgettoconnecttheCPUfanconnector.



Forproperinstallaon,pleasekindlyrefertotheinstallaonmanualofyourCPUheatsink.

Biostar X470GTQ User Manual
