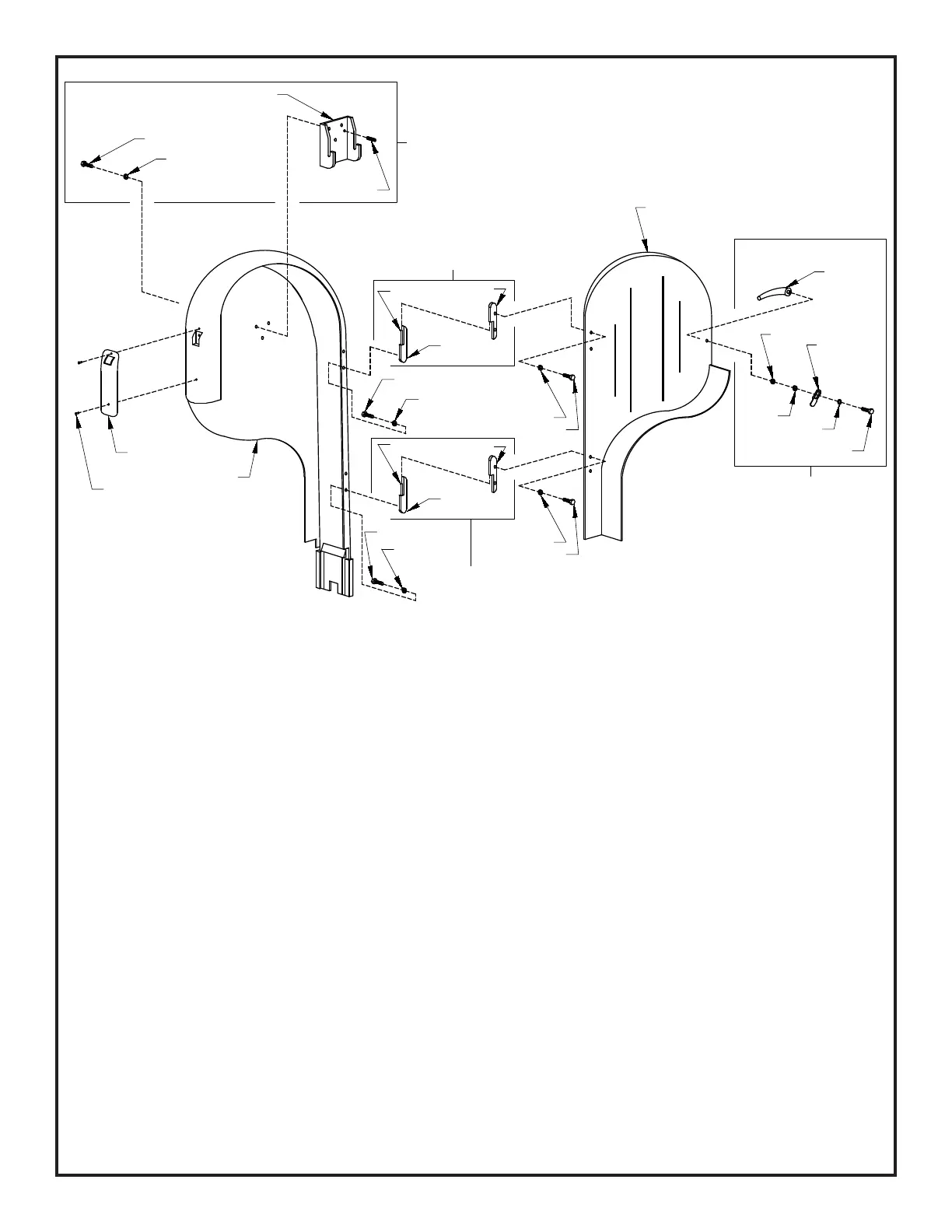

BIRO 11 - Head & Door Assembly Diagram

14
A10005 HEAD & DOOR ASSEMBLY
BIRO
11
HHS050S (3)
LW15S (3)
S71-0
SSS15S
10308
375 (2)
10005
112
310
10006
143
HHS010S
340
S325
A71
UPPER WHEEL
HINGE BRACKET
ASSEMBLY
A112
HEAD DOOR HANDLE
ASSEMBLY
14-0-U
A14U
HEAD DOOR HINGE
ASSEMBLY - UPPER
14-0-L
A14L
HEAD DOOR HINGE
ASSEMBLY - LOWER
HHS025S (2)
LW10S (2)
LW10S (2)
HHS035S (2)
LW10S (2)
HHS035S (2)
HHS025S (2)
LW10S (2)
14GP-1
14GP
14-0
14-0
SSS15S
Set screw,
5
/16 -18 x
5
/16 cup point, SS
14GP
Head door hinge pin, long, 1½”
14GP-1
Head door hinge pin, short, 1¼”
310
Waved washer
Item No. Description
A10006
Head door assembly
HHS050S
Hex head screw,
5
/16 -18 x ⅝, SS
A116-13
Saw guide bar assembly
A10005
Head & door assembly
LW15S
Lock washer,
5
/16 , SS
A112
Head door handle assembly
A14L
Head door hinge assembly - lower
A71
Upper wheel hinge bracket assembly
A14U
Head door hinge assembly - upper
HHS025S
Hex head screw, ¼-20 x ½, SS
HHS035S
Hex head screw, ¼-20 x ⅝, SS
A196
Tension spring assembly
143
Head door catch
10006
Head door (use A10006)
10005
Head
340
Star lock washer
112
Head door latch
S71-0
Upper wheel hinge bracket
LW10S
Lock washer, ¼, SS
HHS010S
Hex head screw, 10-32 x ⅜, SS
S325
Wheel cleaner washer, SS
10308
Babbit pocket shield
14-0
Head door hinge, (not sold separately)
14-0-L
Head door hinge w/ short pin, lower
14-0-U
Head door hinge w/ long pin, upper
375
Drive screws
NOT SHOWN
Item No. Description
