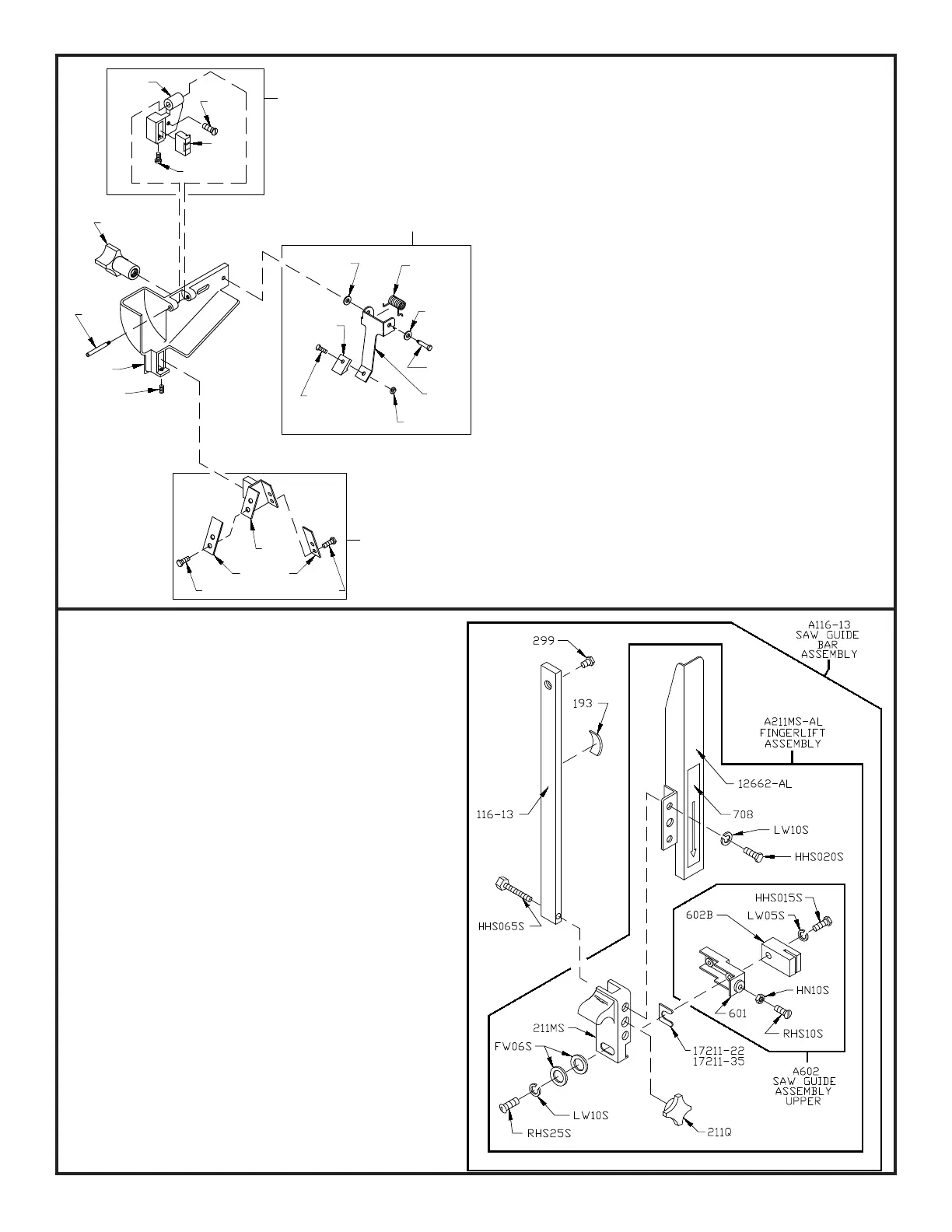

BIRO 11 - Guide Bar and Cleaning Unit Diagrams

17
Hex head screw, 8-32 x ½, SS
Cleaning unit assembly w/ S604
Hex head screw, 10-24 x ⅜, SS
Hex head screw, 8-32 x ¼, SS
Wheel cleaner assembly
Lower blade back-up w/ carbide
Wheel cleaner arm stud, SS
Wheel cleaner arm stud washer, SS
Wheel cleaner arm, SS
Cleaning unit casting
Hex nut, 8-32 SS
Wheel cleaner arm spring, SS
Wheel cleaner
HHS005S
A290CT
HHS010S
HHS003S
A295
S604
S244
131
S325
S295
290CT
HN05S
S229
291-1
179
AS130
Saw cleaner assembly, SS
Blade cleaner, SS
Cleaning unit fastener knob
Item No. Description
Item No. Description
HHS015S
Hex head screw, 10-32 x ⅞, SS
HHS020S
Hex head screw, ¼-20 x ⅜, SS
FW06S
Flat washer, ¼ SS
A602
Saw guide assembly, upper
299
Saw guide bar stop, short
17211-35
Finger lift shim, .035
116-13
Saw guide bar, 13”
12662-AL
Saw guard for aluminum head
17211-22
Finger lift shim, .022
HHS065S
Hex head screw, ⅜-16 x 1½, SS
RHS10S
Round head screw, 10-32 x ¾ SS
HN10S
Hex nut, 10-32 SS
RHS25S
Round head screw, ¼-20 x ¾ SS
LW10S
Lock washer, ¼ SS
LW05S
Lock washer, #10 SS
211MS
Finger lift bracket
602BFSC
Upper saw guide, narrow, sh
211Q
Fastener knob, 4 point
708
Decal “DANGER EXPOSED BLADE”
602B
Upper saw guide with carbide
601
Upper saw guide bracket
A116-13
Saw guide bar assembly 13” AL head
A211MS-AL
Finger lift assembly, removable AL head
193
Saw guide bar spring
A603604
Lower blade backup guide assembly
603
HHS010S
290CT
SSS13
315
291-1
603-1
S604
A603604
LOWER BLADE
BACK-UP GUIDE
ASSEMBLY
A290CT
CLEANING UNIT
TOTAL ASSEMBLY
A295
WHEEL
CLEANER
ASSEMBLY
179
HHS005S
HN05S
S295
S325
S244
S325
S229
HHS003S HHS003S
131131
S130
AS130
SAW CLEANER
ASSEMBLY
Set screw cup point, ¼-20 x ⅜
SSS13
S130
Saw cleaner bracket, rear, SS
Pan head screw adjusting guide
Lower guide bracket
315
603-1
603
Lower guide bracket stud
A290CT
CLEANING UNIT ASSEMBLY
A116-13
SAW GUIDE BAR ASSEMBLY
