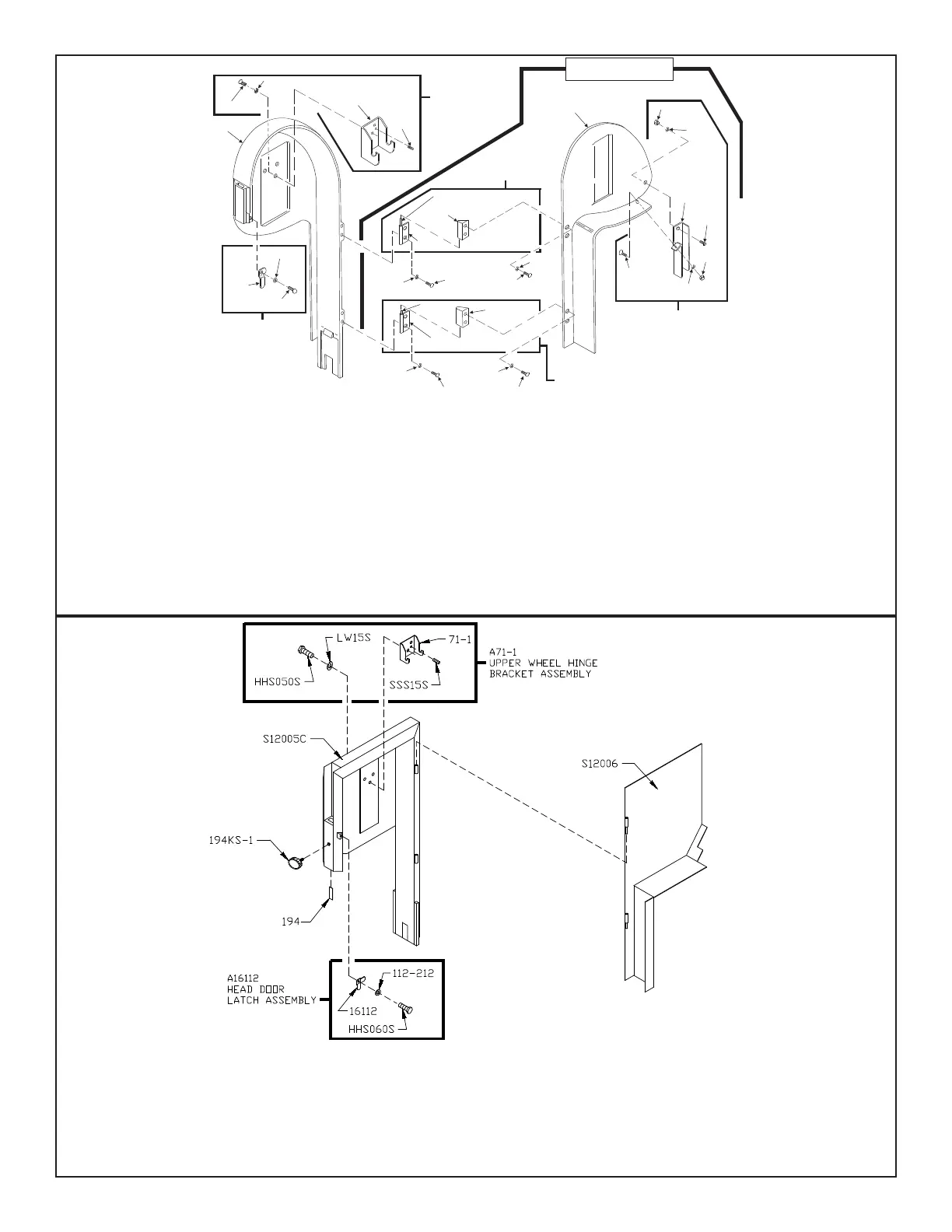

BIRO 22 - Page 16

14
Description
Item No.
A16112
Head door latch assembly
AS12005
Head & door assembly, SS
A71-1
Upper wheel hinge bracket assembly
HHS050S
Hex head screw,
5
/16-18 x ⅝ SS
LW15S
Lock washer,
5
/16 SS
S12005C
Head, SS
S12006
Head door, SS
DescriptionItem No.
SSS15S
Set screw,
5
/16-18 x
5
/16 cup point
112-212
Waved washer
16112
Head door latch
71-1
Upper wheel hinge bracket
194
Saw guide bar lock pad, brass
194KS-1
Saw guide bar lock knob assembly
HHS060S
Hex head screw,
5
/16-18 x 1 SS
SSS15S
Set screw,
5
/16 -18 x
5
/16 cup point, SS
14GP
Head door hinge pin, 1½”
14GP-1
Head door hinge pin, 1¼”
112-212
Waved washer
Item No. Description
A12006A
Head door assembly
HHS050S
Hex head screw,
5
/16 -18 x ⅝, SS
HHS060S
Hex head screw,
5
/16 -18 x 1, SS
A12005A
Head & door assembly
LW15S
Lock washer,
5
/16
,
SS
AS660
Saw guard on head door assembly
A16112
Head door latch assembly
AS16014L
Head door hinge assembly - lower, SS
A71-1
Upper wheel hinge bracket assembly
AS16014U
Head door hinge assembly - upper, SS
HHS025S
Hex head screw, ¼-20 x ½, SS
HHS035S
Hex head screw, ¼-20 x ⅝, SS
HN15S
Hex nut, ¼-20, SS
193
Guide bar spring - Not Shown
Item No. Description
12006A
Head door, new style (not sold separately)
12005A
Head, new style
660
Saw guard on head door
16112
Head door latch
71-1
Upper wheel hinge bracket
LW10S
Lock washer, ¼,
,
SS
HHS050S (3)
LW15S (3)
71-1
SSS15S
A71-1
UPPER WHEEL
HINGE BRACKET
ASSEMBLY
12005A
112-212
HHS060S
16112
A16112
HEAD DOOR
LATCH ASSEMBLY
HHS035S HHS035S
(2) (2)
LW10S
(2)
LW10S
(2)
HHS035S
(2)
LW10S
(2)
HHS035S
(2)
LW10S
(2)
S16014U
S16014L-2
14GP
AS16014U
HEAD DOOR HINGE
ASSEMBLY-UPPER
AS16014L
HEAD DOOR HINGE
ASSEMBLY-LOWER
S16014U
S16014L-1
14GP-1
AS660
SAW GUARD ON
HEAD DOOR
ASSEMBLY
LW10S
HN15S
HHS025S
660
HHS025S
LW10S
HN15S
12006A
A12006A
HEAD DOOR ASSEMBLY
A12005A
HEAD & DOOR
ASSEMBLY
AS12005
HEAD & DOOR
ASSEMBLY, SS
