BIRO 22 - Page 18

16

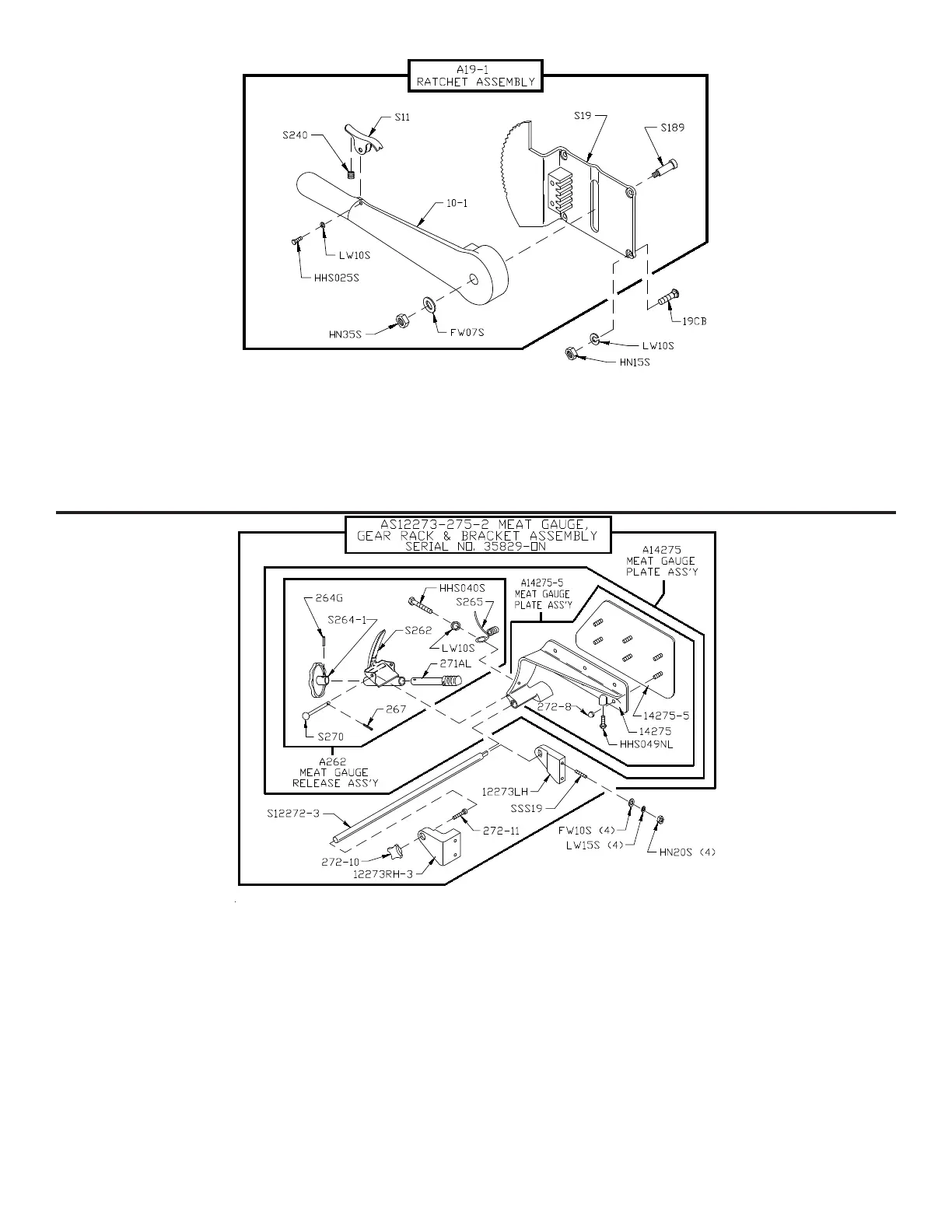

Item No. Description
A19-1
Ratchet assembly
HN35S
Hex nut, ⅜-16 SS
FW07S
Flat washer, ⅜ SS
LW10S
Lock washer, ¼ SS
HN15S
Hex nut, ¼-20 SS
HHS025S
Hex head screw, ¼-20 x ½ SS
Item No. Description
S11
Ratchet trigger SS
19CB
Carriage bolt ¼-20 SS
S189
Ratchet arm stud SS
S240
Ratchet trigger spring
10-1
Ratchet arm
S19
Ratchet base SS
Item No. Description
AS12273-275-2
Meat gauge assembly
HHS049NL
Hex screw- nylon,
5
/16-18 x ½
A14275
Meat gauge plate assembly w/ release
HN20S
Hex nut,
5
/16-18 SS
FW10S
Flat washer,
5
/16 SS
A262
Meat gauge release assembly
Item No. Description
12273LH
Meat gauge bracket- LH
264G
Meat gauge hand wheel groove pin
12273RH-3
Meat gauge bracket- RH
S264-1
Meat gauge hand wheel, SS
14275-5
Meat gauge plate, SS
14275
Meat gauge arm
LW10S
Lock washer, ¼ SS
S235
Taper pin, 4 x ¾ SS
LW15S
Lock washer,
5
/16 SS
S262
Meat gauge release handle, SS
SSS19
Set screw, cup point,
5
/16-18 x 1½ SS
HHS040S
Hex head screw, ¼-20 x ¾ SS
272-8
Cap nut,
5
/16-18, SS
267
Meat gauge release cotter pin
272-10
Lock knob ⅜-16, 4 point
271AL
Meat gauge worm gear, Aluminum
S270
Meat gauge release pin, SS
S265
Meat gauge release spring, SS
S14272
Meat gauge gear rack, SS
272-11
Allen head cap screw ⅜-16 x 1½
A14275-5
Meat gauge plate assembly less release
