BIRO 3334 - Standard 3334 Meat Carriage & Channel; Meat Carriage Assembly; Channel Assembly 37.5

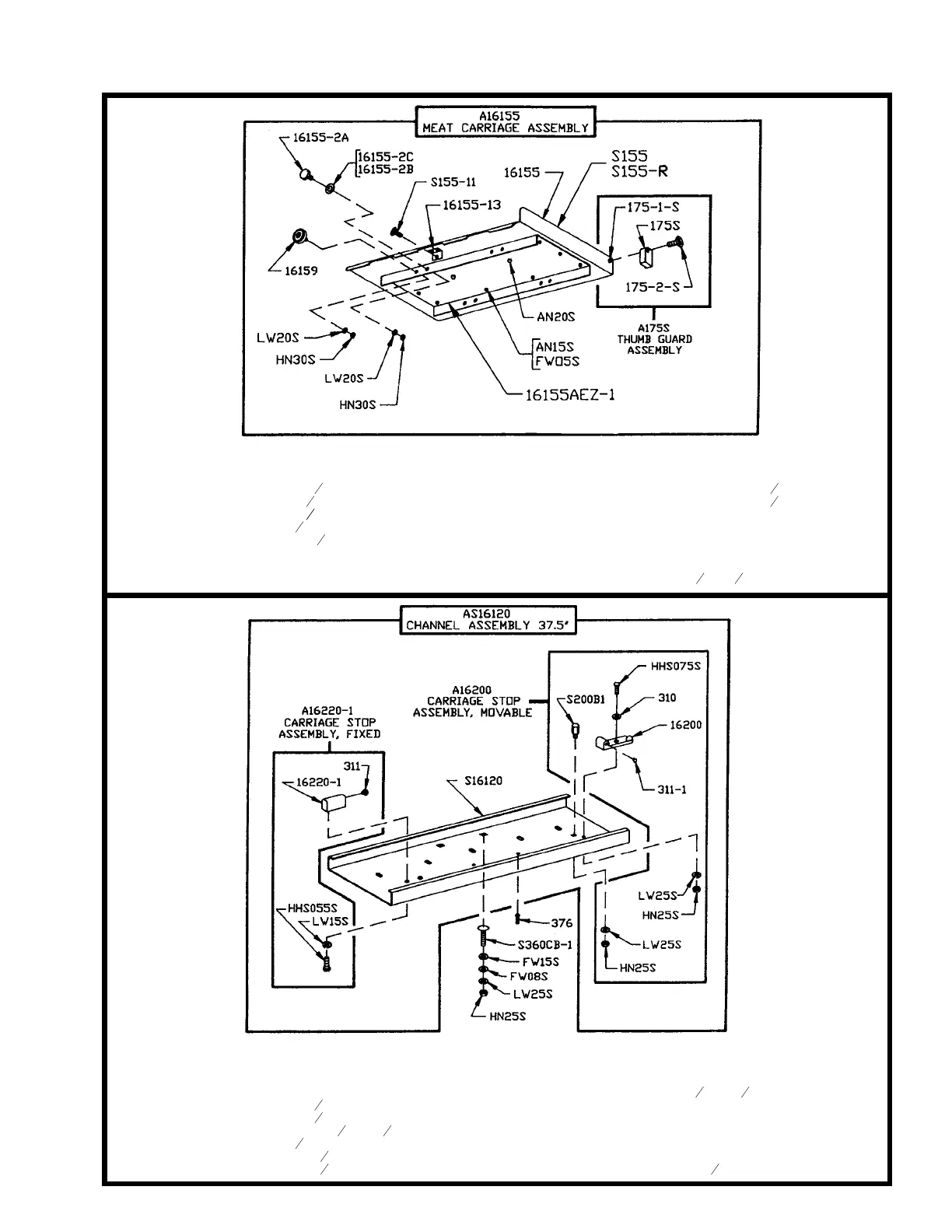

STANDARD 3334 MEAT CARRIAGE & CHANNEL
21
Item No. Description
A16155 Meat carriage assembly complete
A175S Thumb guard assembly
FW05S Flat washer,
1
4
SS
AN15S Acorn nut,
1
4
-20 SS
AN20S Acorn nut,
3
8
-16 SS
HN30S Hex nut,
3
8
-16 light jam SS
LW20S Lock washer
3
8
regular SS
S155 Meat carriage top only (NSS)
S155-R Raw meat carriage top only (DNS)
S155-11 Meat carriage stop thumb screw
Item No. Description
16155 Meat carriage top & angle only
16155-2A Meat carriage guide
16155-2B Meat carriage guide spacer,
1
64
TK
16155-2C Meat carriage guide spacer,
1
32
TK
16155-13 Carriage stop angle SS, welded
16155AEZ-1 Meat carriage angle plate only (DNS)
16159 Meat carriage bearing SS
175S Thumb guard,nylon
175-1-S Thumb guard nut SS
175-2-S Thumb screw
1
4
-20
´
1
2
Item No. Description
A16200 Carriage stop assembly, movable
A16220-1 Carriage stop assembly, fixed
AS16120 Channel assembly, 37"
FW08S Flat washer,
3
8
SS
FW15S Flat washer,
1
2
SS
HHS075S Hex head screw,
3
8
-16
´
1
1
4
SS
HN25S Hex nut,
3
8
-16 SS
LW15S Lock washer,
5
16
SS
LW25S Lock washer,
3
8
SS
Item No. Description
S16120 Channel, 37" SS
S200B1 Carriage stop stud SS
S360CB-1 Carriage bolt,
3
8
-16
´
1
1
4
SS
16200 Carriage stop, movable
16220-1 Carriage stop, fixed
310 Waved washer
311 Rubber bumper, fixed stop
311-1 Rubber bumper, movable stop
376 Drive screw 10
´
1
2
SS
