BIRO 3334 - Standard 3334-4003 EZ Flow Meat Carriage & Channel; Meat Carriage Assembly EZ Flow; Channel Assembly EZ Flow

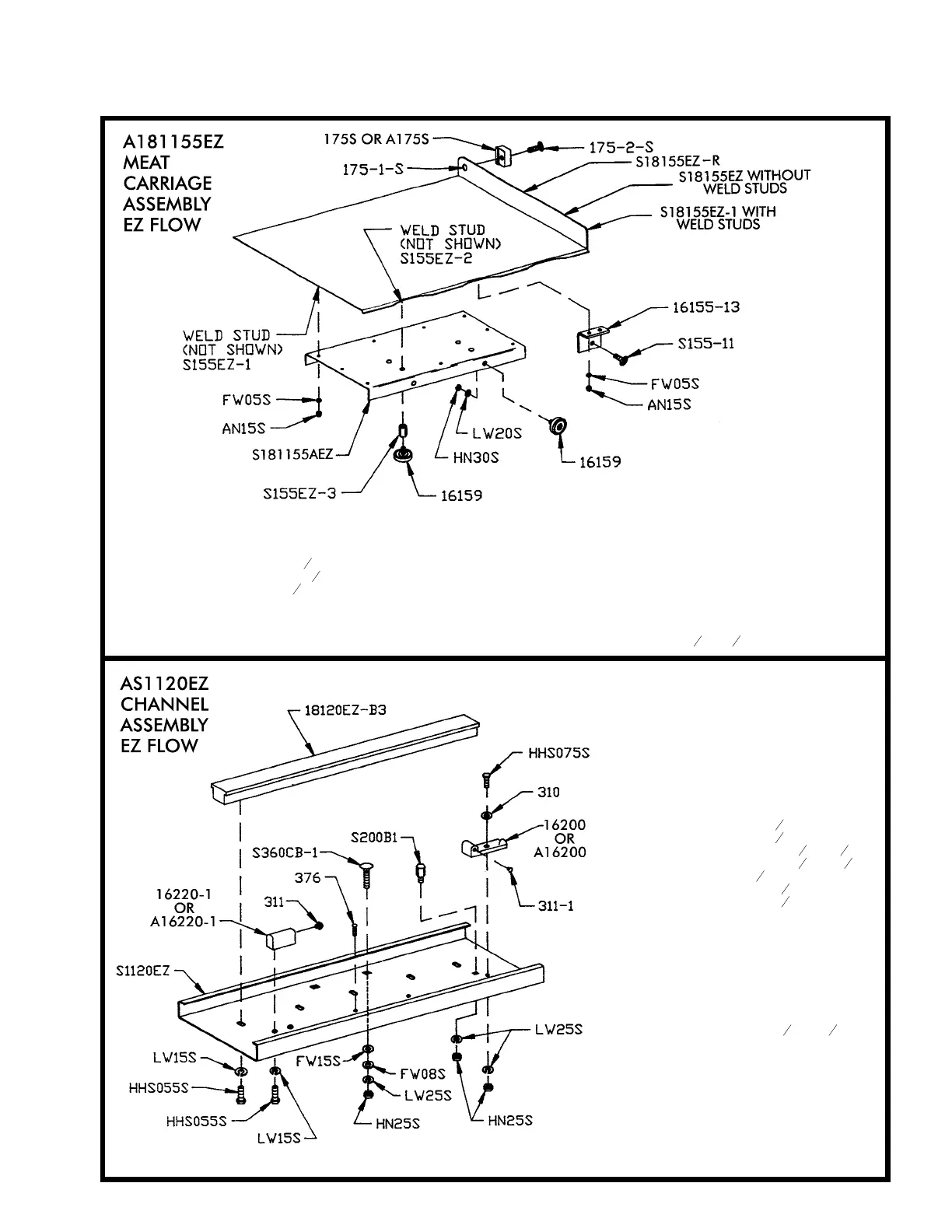

STANDARD 3334-4003 EZ FLOW MEAT CARRIAGE & CHANNEL
ALSO OPTIONAL ON ALL OTHER 3334
23
Item No. Description
A175S Thumb guard assembly
A181155EZ Meat carriage assembly, EZ Flow
AN15S Acorn nut,
1
4
-20
FW05S Flat washer,
1
4
HN30S Hex nut,
3
8
-16 light jam
LW20S Lock washer, light
S155-11 Carriage stop thumb screw
S155EZ-1 Weld stud – NSS
S155EZ-2 Weld stud – NSS
Item No. Description
S181155AEZ Carriage bearing angle plate
S18155EZ-1 Carriage top w/weld studs
S18155EZ Carriage top without weld studs
S18155EZ-R Raw meat carriage top only (DNS)
S155EZ-3 Hex stand-off
16155-13 Carriage top angle SS
16159 Carriage bearing
175S Thumb guard
175-1-S Thumb guard nut
175-2-S Thumb screw
1
4
-20
´
1
2
Item No. Description
A16200 Carriage stop assembly,
movable
A16220-1 Carriage stop assembly, fixed
AS1120EZ Channel assembly, EZ Flow
FW08S Flat washer,
3
8
FW15S Flat washer,
1
2
HHS055S Hex head screw,
5
16
-18
´
3
4
HHS075S Hex head screw,
3
8
-16
´
1
1
4
HN25S Hex nut,
3
8
-16
LW15S Lock washer,
5
16
LW25S Lock washer,
3
8
S1120EZ Channel, EZ Flow
16200 Carriage stop, movable
16220-1 Carriage stop, fixed
18120EZ-B3 Carriage guide bar, EZ Flow
310 Waved washer
311 Rubber bumper, fixed stop
311-1 Rubber bumper, movable stop
376 Drive screw 10
´
½SS
S200B1 Stop stud, SS
S360CB-1 Carriage bolt,
3
8
-16
´
1
1
4
NOT SHOWN
S1007 Channel bracket, SS
