WARNING
Before digging the hole for this pole, check
for buried power, gas, water, and
telecommunication lines! Failure to do so
could result in serious or fatal injury!
Contact your local utility company if unsure.

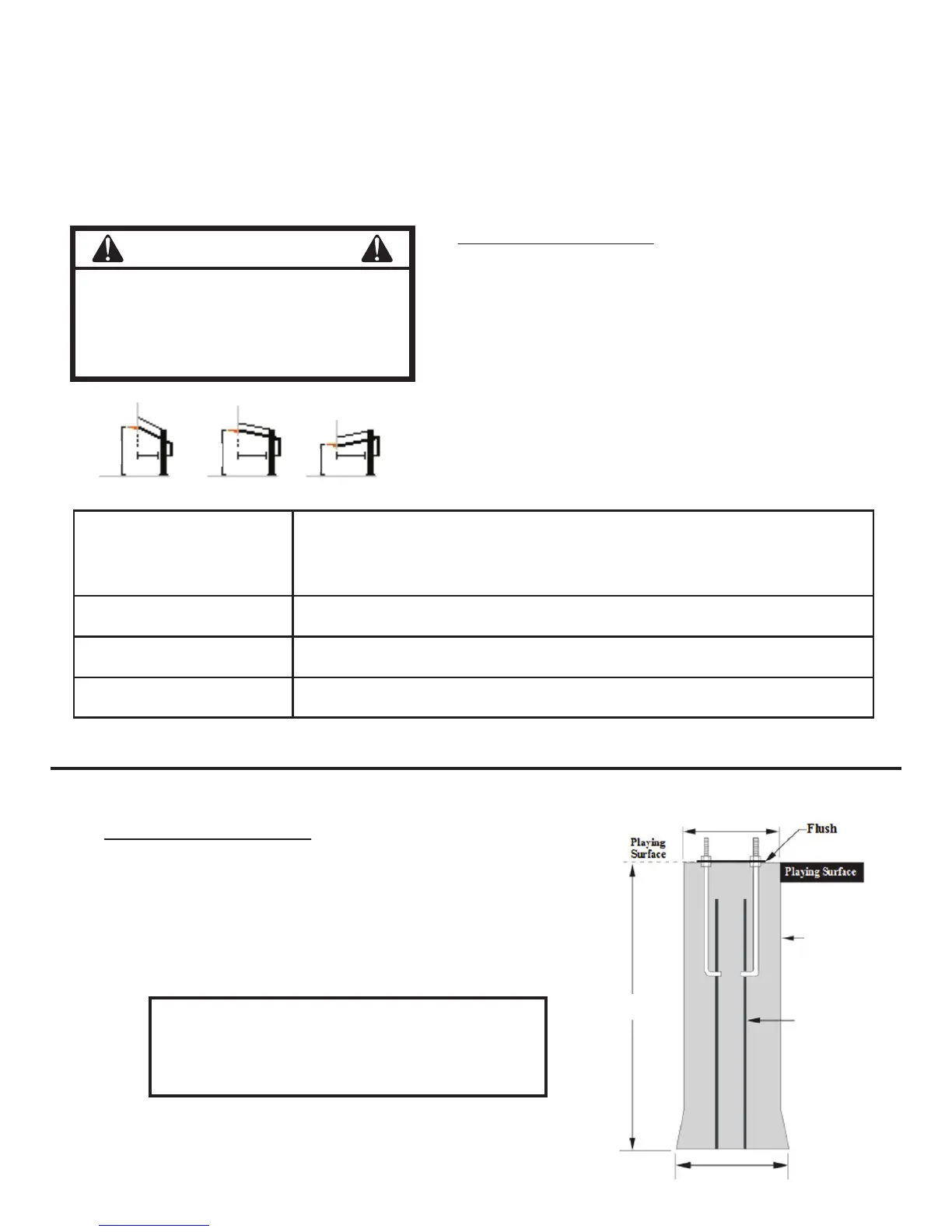

STEP 1
ANCHOR SYSTEM INSTALLATION INSTRUCTIONS
1) Installation Location
Rim Height Distance from the face of the backboard to the front of
the Vertical Post (A)
6' 65"
8' 66"
10' 48"
Choose the proper location to dig for the
concrete footing. Use the drawing on the
previous page to help you locate. When
choosing the exact position to dig, make sure to
maximize the amount of playing surface while
minimizing possible driveway obstruction. Pole
should be as close to the edge of the concrete as
possible to reduce the chance of injury.
2) Digging Footing Hole
Dig hole 48” deep and 24” square. Be sure to
bell out the bottom of the hole 28” to give added
stability to the footing.
*NOTE: If you live in an extremely cold
climate where the frost line is commonly
below 48” it is advisable to dig to normal
frost line.
48” *
24” Diameter
28” Diameter
Concrete
(20-25) 80 lbs. bags
Rebar
(4 Pieces)
10’
48” 66” 65”
8’
6’
REV. 10/10/17
To Next Page
