Bison HangTime - Assembly Instructions; Main Pole Attachment

To Next Page

To Previous Page

STEP 2

ASSEMBLY INSTRUCTIONS

CAUTION

FOUR PEOPLE ARE RECOMMENDED FOR

SAFE INSTALLATION OF THE SYSTEM

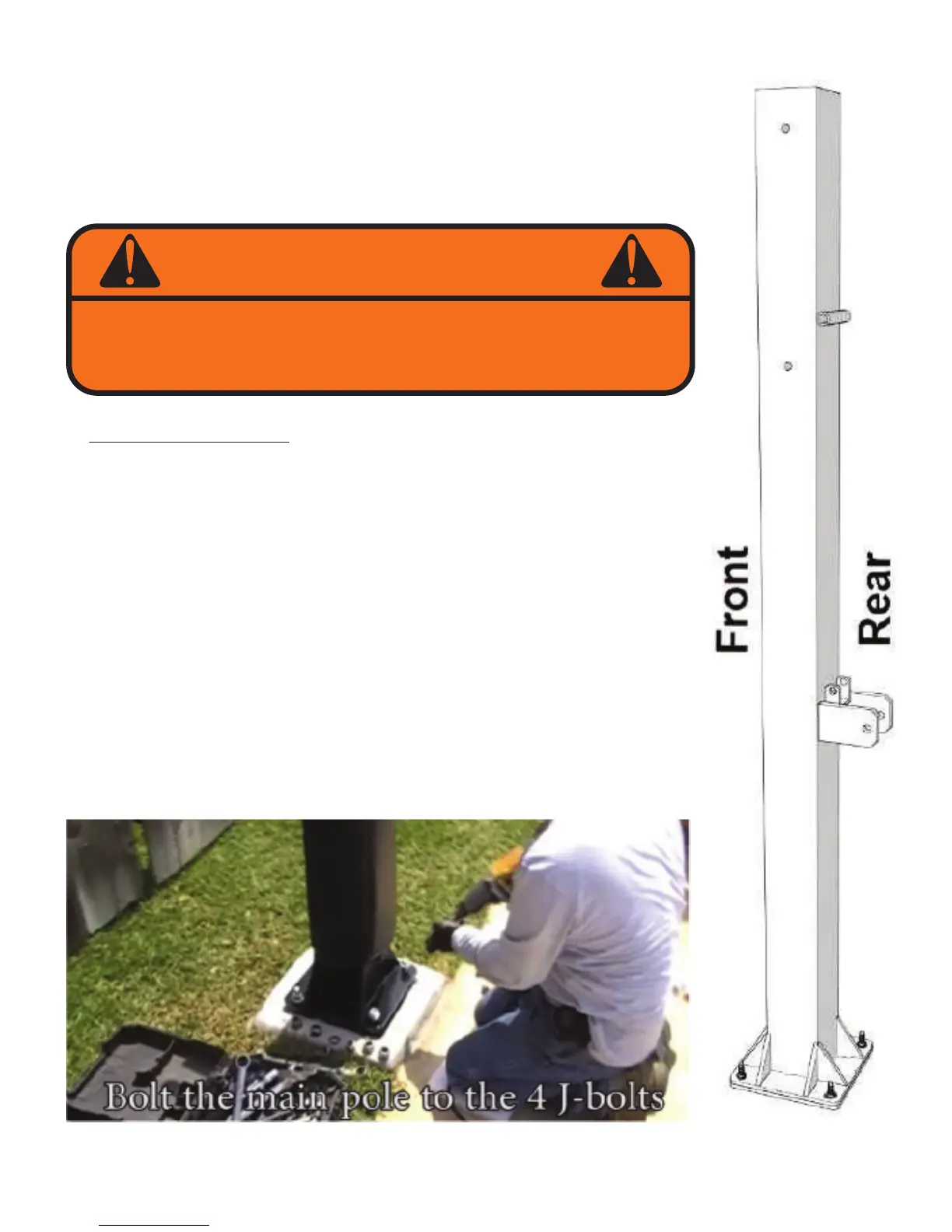

5) Main Pole Assembly

Remove the top four 5/8” J-Bolt Hex Nuts (L) from the 5/8”

Anchor J-Bolts (K). Remove Anchor Template (N). Install

(4) additional 5/8” J-Bolt Hex Nuts (L) on the 5/8” Anchor

J-Bolts (K) and level.

Install (4) 5/8” Washers (Z) on top of the 5/8” J-Bolt Hex

Nuts (L). Remove the pole padding from the Vertical Post

(A). Install the Verical Post (A) onto the J-Bolts. Install (4)

5/8” Washers (Z) on top of the pole base plate. Install (4)

Flanged Hex Nuts (BB) to top of the anchor bolts and

tighten. Make sure that base plate is parallel to playing

surface.

REV. 10/10/17
