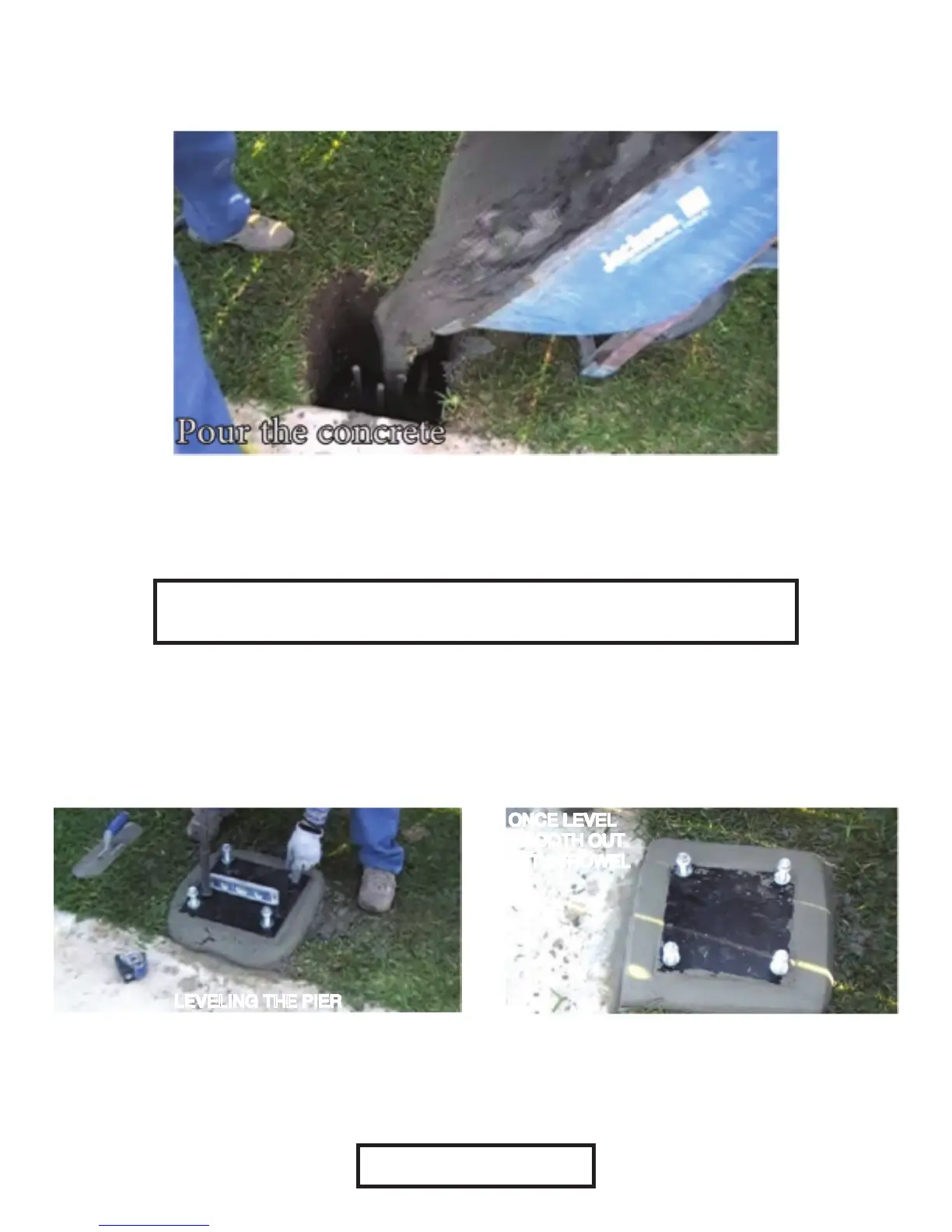

Pour the remaining concrete into the hole until completely full and coming out of
the top. Using a trowel, smooth the concrete to allow draining away from the
pole.
Place the assembled anchor system in the hole to the point where the bottom of
the Anchor Template (N) rests on the top of the finished concrete.
Use a level to ensure that the Anchor Template (N) is level in all directions.
Additionally, the center line of the 5/8” Anchor J-Bolts (K) must be parallel with
the edge of the playing surface to ensure that the backboard will be properly
positioned.
Once completely smooth let the concrete cure. This can take up to a week
depending on the weather conditions. Consult the instructions on the concrete
bag for curing times and directions.
NOTE: The (4) 5/8” J-Bolt Hex Nuts (L) on the bottom of the Anchor
Template (N) will remain embedded into the concrete after the footing cures.
STEP 1 COMPLETE!
