Bison HHBD01SK-01 - Technical Specifications - Single Speed Hoist + Trolley

4

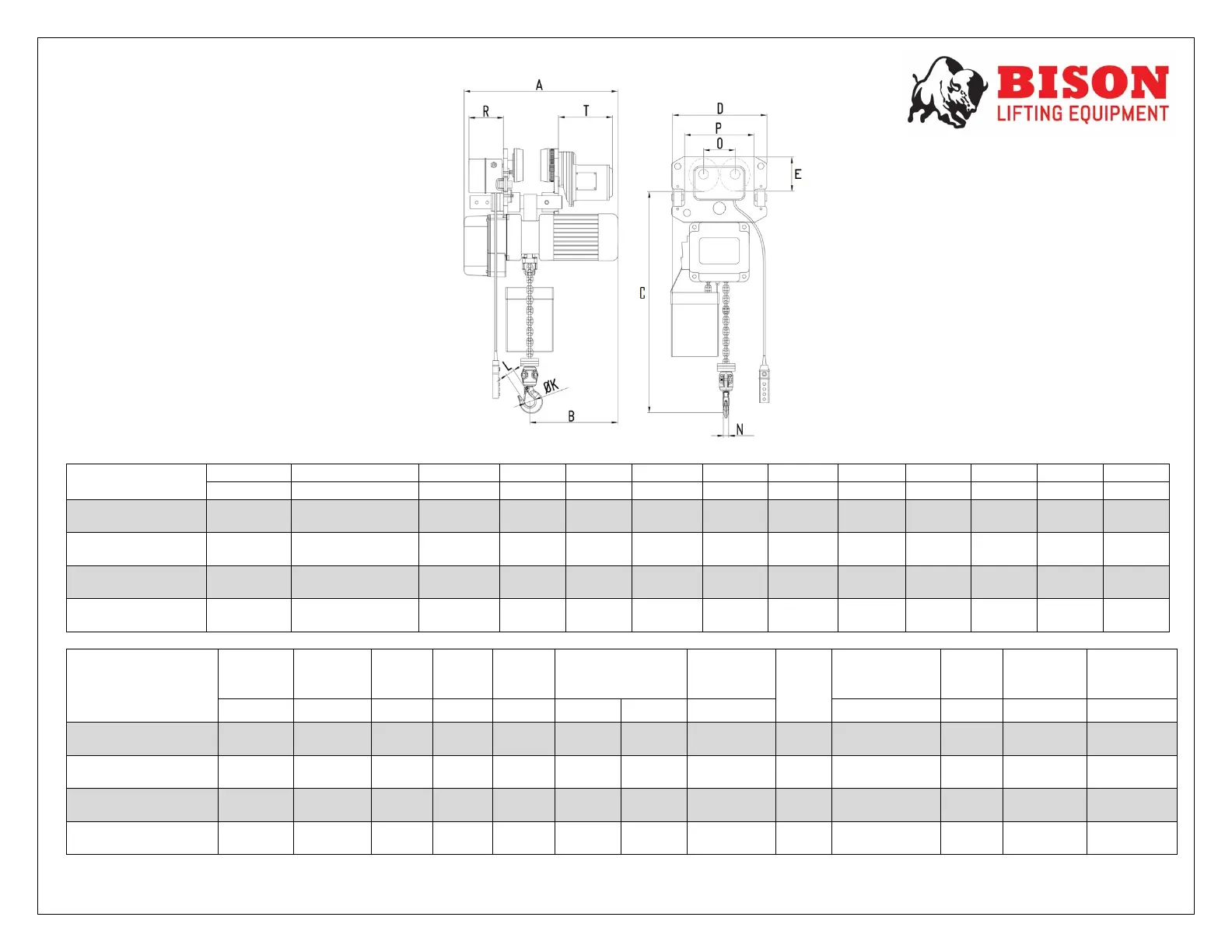

TECHNICAL SPECIFICATIONS
SINGLE SPEED HOIST + TROLLEY
Product Code
Capacity
Headroom (C)
A
B
D
K
L
E
N
O
P
R
T
tons
inches
inches
inches
inches
inches
inches
inches
inches
inches
inches
inches
inches
HHBD01SK-01
+WPC01
1
18.1
23.43
12.6
12.25
1.65
1.22
4.87
0.94
4.37
8.11
5.59
9.09
HHBD02SK-01
+WPC02
2
22
25.39
12.99
12.75
1.93
1.37
4.75
1.18
5.00
9.33
5.59
9.09
HHBD03SK-01
+WPC03
3
28
30.91
15.55
13.5
2.32
1.65
5.5
1.38
5.51
10.43
5.59
9.09
HHBD05SK-02
+WPC05
5
37
30.91
15.55
15.5
2.36
1.65
5.5
1.69
6.14
11.65
5.59
9.09
Product Code
Capacity
Standard
Lift
Height
Push
Button
Cord
Lifting
Speed
Motor
Output
Motor Rated
Current (amps)
Load
Chain Size
Ø
Chain
Fall
Lines
Trolley Speed
Trolley
Output
Trolley
Flange
Width
Net Weight
tons
feet
feet
ft/min
hp
@230v
@460v
mm
ft/min
hp
inches
lbs.
HHBD01SK-01
+WPC01
1
20
17
23.6
2
6
4.5
Ø 8 x 24
1
48
0.5
3.15-12.00
213.8
HHBD02SK-01
+WPC02
2
20
17
14.4
2
6
4.5
Ø 10 x 30
1
48
0.5
3.23-12.00
277.8
HHBD03SK-01
+WPC03
3
20
17
17.7
4
11
8
Ø 11.2 x 34
1
48
0.5
3.94-12.00
434.3
HHBD05SK-02
+WPC05
5
20
17
9.2
4
11
8
Ø 11.2 x 34
2
48
1
4.33-12.00
560
