Bison NB Series - Page 37

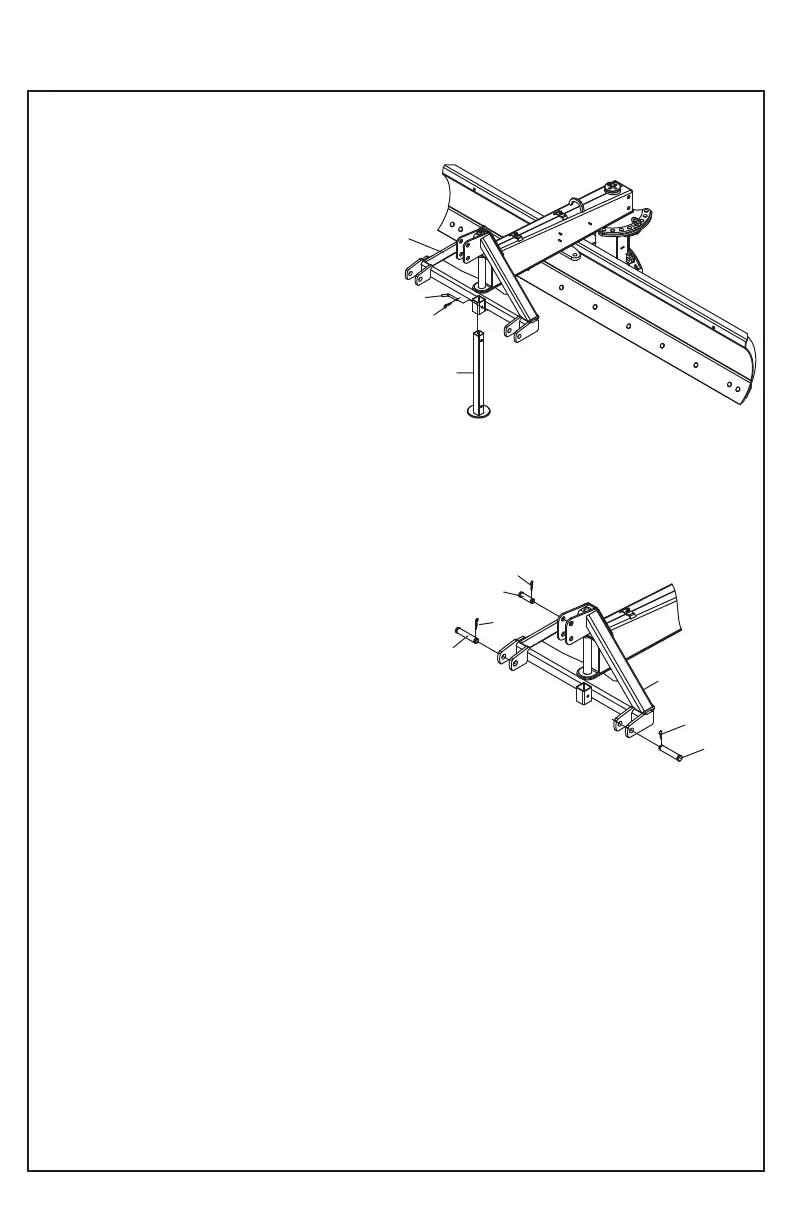

Stand installation
A. Attach the stand (7) engaging the frame (4) and
insert the stand pin (19) through the upper hole of the
stand (7). Use "R" lock (33) to secure the stand (7) in
the working position.
4. Frame Box 4
7. Stand
19. Stand pin
33. "R" lock, 1/8
Installing Frame Hitch Bolts
F. Insert the two lower locking pins (17) through the
coupling holes of the frame (4).
Secure with "R" lock insurance (33).
G. Insert the upper locking pin (16) in the upper hole of
the coupling frame (4) and secure with “R” lock
insurance (33).
4. Hitch frame
16. Upper coupling pin
17. Bottom latch pin
33. "R" lock
32
ASSEMBLY
7
19
33
4
NB80-024
17
33
16
33
33
17
NB80-025
4
