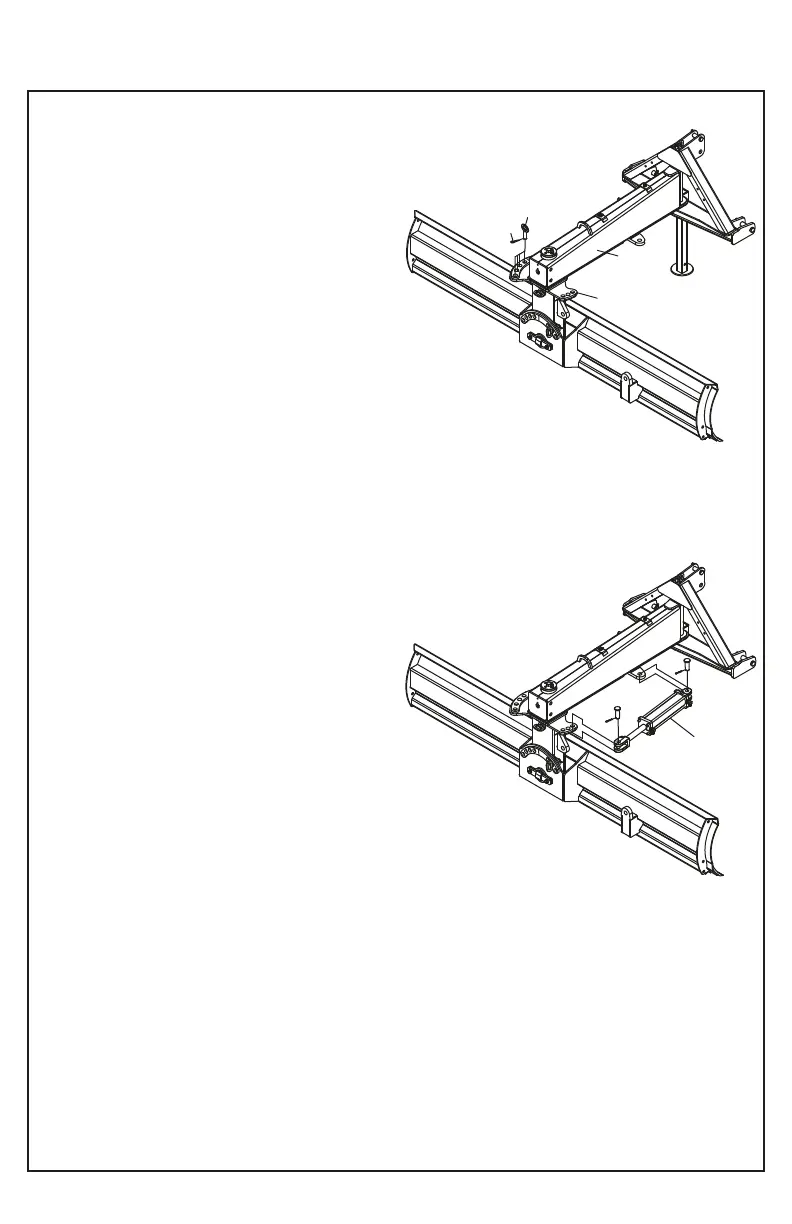

Angle Pin Installation
1. Insert the angle and tilt pin (12) using various
combinations of holes between the mainframe (2) and
turntable holes (3). Secure the angle and tilt pin (12)
with "R" lock (33).
2. Mainframe
3. Turntable
12. Angle and tilt pin
36. Cylinder Angle
Attach the hydraulic angle kit to the rear blade
(KHCN102)
1. Assemble the angle cylinder (36) to the turntable (3)
and cotter pin using the angle cylinder (36),
additionally join the other end of the angle cylinder (36)
on the mainframe (2).
2. Mainframe
3. Turntable
36. Angle Cylinder
33
2
3
ASSEMBLY
12
33
NB80-026
NB80-027
Ángulo
36
