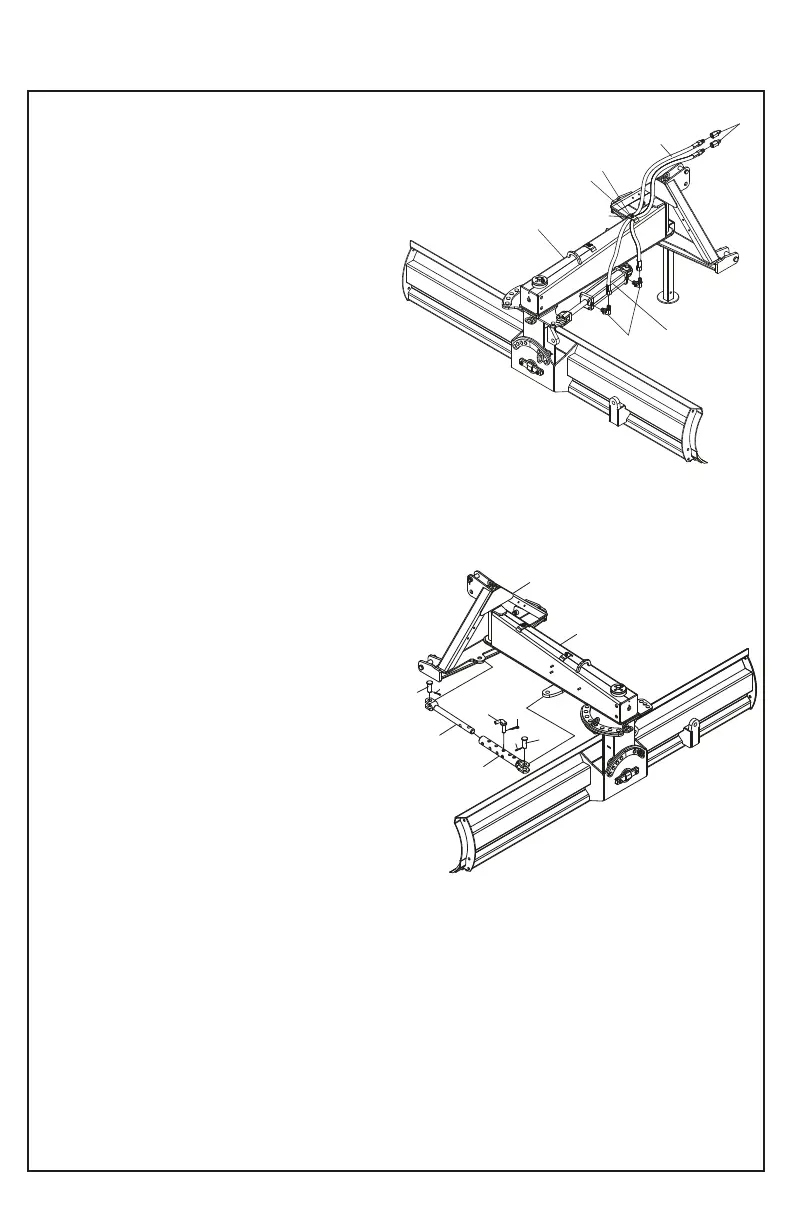

Angle cylinder hose kit assembly (KHCN102)
1. Install both elbows (42) to the angle cylinder (36).
2. Install the two hoses (45) on the elbows (42) angle
cylinder (36).
3. Secure hoses (45) to the top of the mainframe (2) by
hose clamp (18), nut (25) and lock washer (29).
4. Install the quick connectors (41) to hoses (45).
2. Mainframe
18. Hose Clamp
25. Hex, 3/8 - 16 UNC butterfly
3/8 lock washer 29. "
36. Angle Cylinder
41. Couplers
42. Elbows
45. Hoses
OFFSET MECHANICAL LINKAGE INSTALLATION
1. Install the mechanical linkage joining the male
tensor (5) with the female tensor (6)using the tensor
pin (13) and “R” lock (33).
2. Attach the lateral offset mechanical tensioner
assembly scrolling both at the mainframe (2) using
pins (20) and cotters (4)(32).
2. Mainframe
4. Frame hitch
5. Male tensor
6. Female tensor
13. Tensor pin
20. Pin
32. Cotter 3/16 X 1 1/2
33. "R" lock
34
ASSEMBLY
Ángulo
36
NB80-028
41
45
18
42
NB80-029
20
32
5
6
13
33
32
20
4
2
2
25
29
