Bison NB Series - Page 40

35
ASSEMBLY

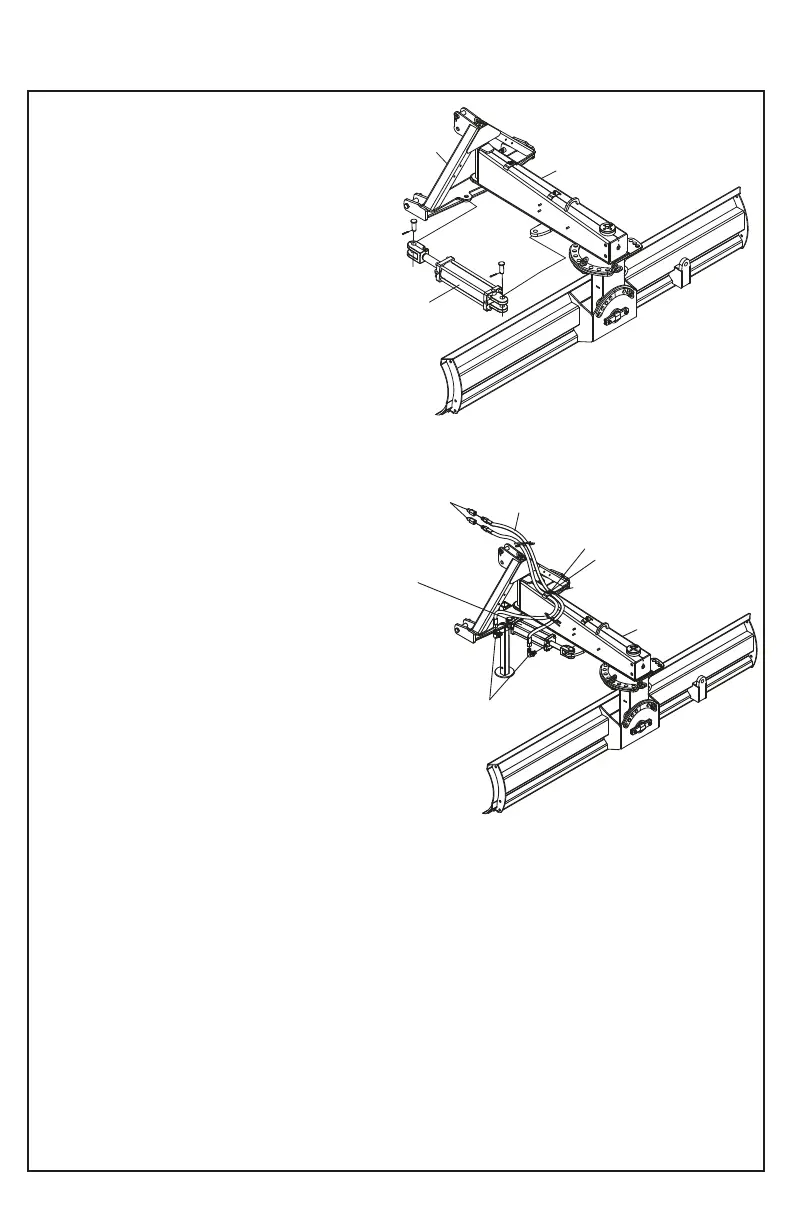

JOIN THE OFFSET HYDRAULIC CYLINDER TO THE
REAR BLADE (KHCN106)
1. Assemble the offset cylinder (38) to the mainframe
(2) using pin and cotter offset cylinder (38), likewise
assembling the other cylinder end of the frame hooking
(4).
2. Mainframe
4. Frame hitch
38. Offset Cylinder
Offset cylinder hose assembly (KHCN106)
1. Install both elbows (42) to the offset cylinder (38).
2. Install the two hoses (45) on the elbows (42) in the
offset cylinder (38).
3. Secure hoses (45) to the top of the mainframe (2) by
hose clamp (18), nut (25) and lock washer (29).
4. Install the quick connectors (41) to tubing (45).
2. Mainframe
18. Hose Clamp
25. Hex, 3/8 - 16 UNC butterfly
29. Lock washer 3/8"
38. Offset Cylinder
41. Couplers
42. Elbows
45. Hoses
2
4
2
25
29
NB80-030
38
Desplazamiento
Lateral
38
NB80-031
41
18
45
42
