a. Remove drive cover b. Slide drive into drive bay
c. Squeeze and pull drive-locking mechanism

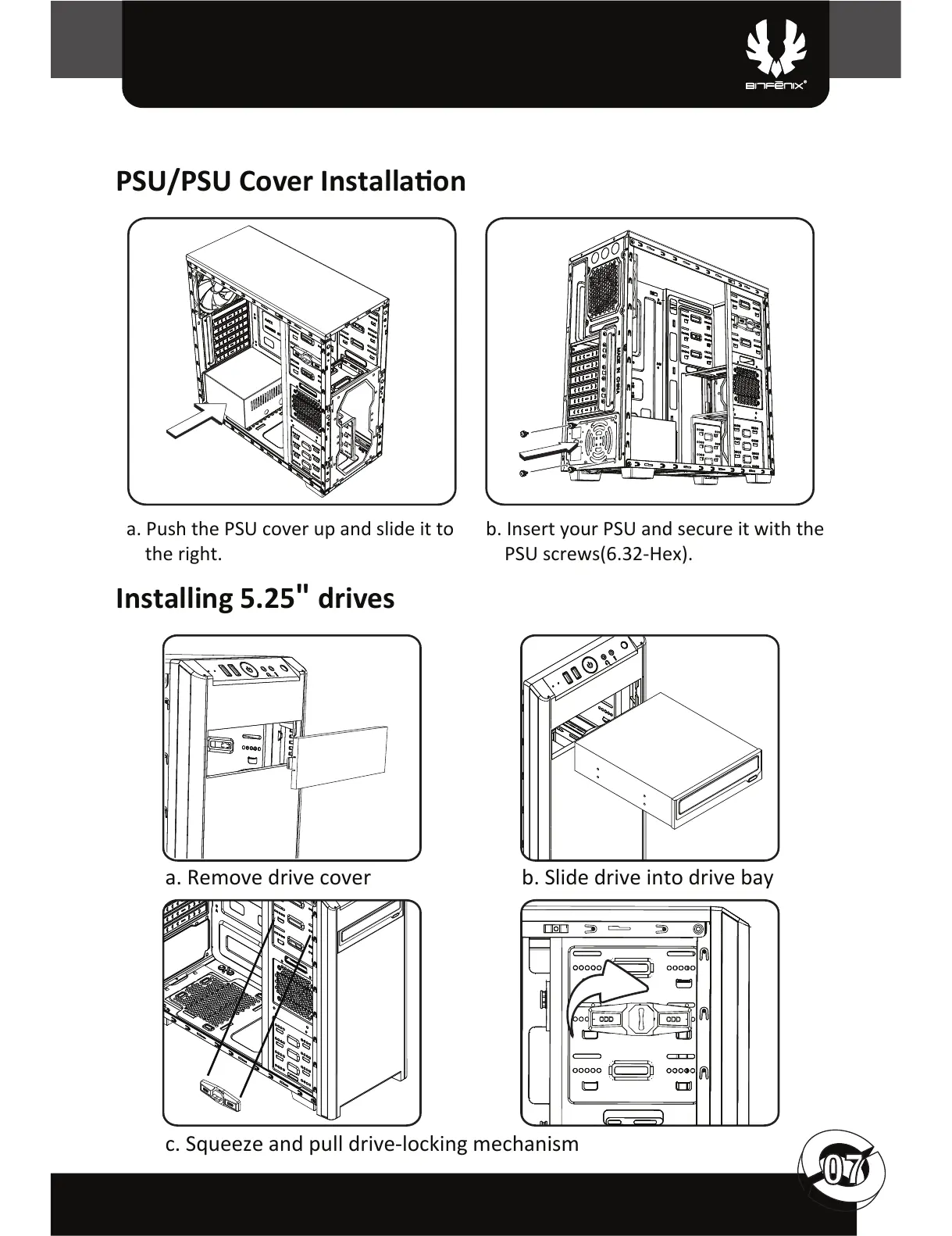

PSU/PSU Cover Installaon
Installing 5.25" drives
a. Push the PSU cover up and slide it to
the right.
b. Insert your PSU and secure it with the
PSU screws(6.32-Hex).
