The BitFenix Nova is a computer case designed for housing PC components, offering a blend of functionality, ease of use, and a clean aesthetic. It serves as the enclosure for a personal computer, protecting internal components while providing necessary airflow and access for installation and maintenance. The case is available in two main variants: the standard Nova and the Nova Window, with the latter featuring a side panel with a window to showcase the internal components.

Function Description:

The primary function of the BitFenix Nova is to provide a structured and protective environment for a computer's internal hardware. This includes the motherboard, power supply unit (PSU), hard disk drives (HDDs), solid-state drives (SSDs), optical disk drives (ODDs), and various cooling fans. The case is designed to facilitate the assembly of these components into a functional computer system. It offers designated bays and mounting points for each component, ensuring a secure fit and organized layout. The Nova supports standard ATX and Micro ATX motherboards, making it compatible with a wide range of PC builds.

Usage Features:

Installation of Components:

Mainboard Installation: The case includes 10 mainboard screws and 3 additional mainboard standoffs, complementing the 6 standoffs already embedded in the mainboard tray. This ensures secure mounting for various motherboard sizes.
Drive Installation (3.5" Drives): For 3.5" HDDs, the installation process involves sliding the drive into a designated drive bay. For enhanced security and support, users can remove the right side panel and install screws from that side to firmly hold the drive in place. This dual-sided securing mechanism helps prevent vibrations and ensures stability.
Drive Installation (2.5" Drives): Similarly, 2.5" HDDs or SSDs are installed by sliding them into their respective drive bays. Like the 3.5" drives, these can also be secured with screws from the right side panel for extra support, which is particularly useful for preventing movement during transport or heavy use.
Optical Disk Drive (ODD) Installation (5.25" Drives): The Nova features a tool-less design for 5.25" ODDs. To install an ODD, the user first removes the drive cover from the front panel. The ODD is then slid into the drive bay. A drive-locking mechanism, which typically involves squeezing and pulling, secures the ODD without the need for screws, simplifying the installation process.
Power Supply Unit (PSU) Installation: The PSU is installed by first pushing up and sliding a PSU cover to the right, revealing the PSU bay. The PSU is then inserted into this bay and secured using 6-32 hex screws. This method ensures the PSU is firmly mounted and properly aligned within the case.
Fan Installation: The Nova supports multiple cooling fans to maintain optimal temperatures within the system.
- Front Fan Installation: The front panel can be removed to install up to two 120mm fans. This placement is crucial for drawing cool air into the case, especially over the storage drives.
- Back Fan Installation: The rear of the case allows for the installation of up to two 120mm fans, typically used as exhaust fans to remove hot air from the system.

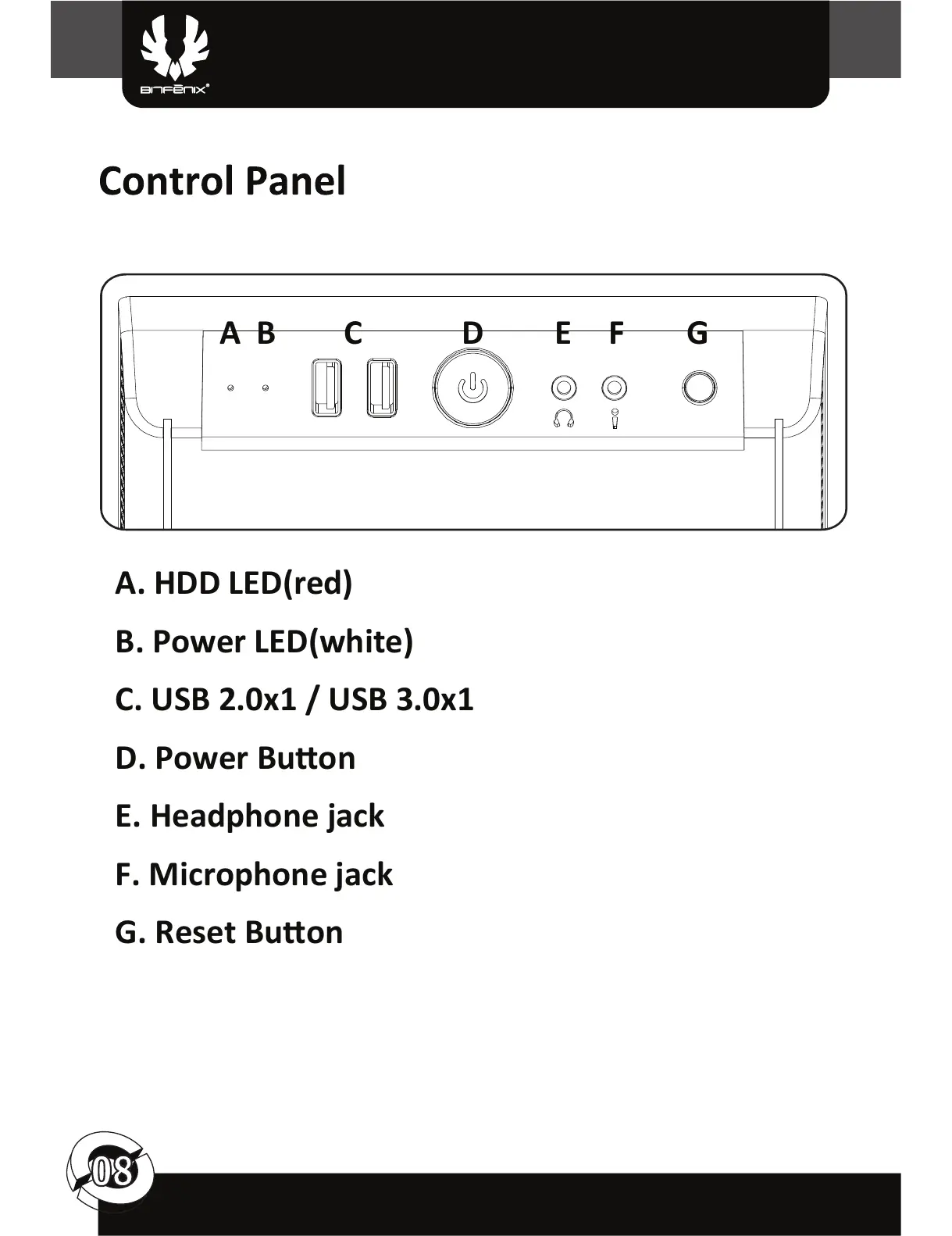

Control Panel:

The top-front of the case features a conveniently located control panel, providing easy access to essential functions and ports:

HDD LED (red): Indicates hard drive activity.
Power LED (white): Shows that the system is powered on.
USB Ports: Includes one USB 2.0 port and one USB 3.0 port for connecting peripherals and external devices, offering both backward compatibility and high-speed data transfer.
Power Button: For turning the computer on and off.
Headphone Jack: For connecting headphones or external speakers.
Microphone Jack: For connecting a microphone.
Reset Button: For restarting the computer.

Maintenance Features:

Side Panel Removal:

Accessing the internal components for installation, upgrades, or cleaning is straightforward. The side panels are secured with thumbscrews, which can be easily removed by hand without tools. Once the thumbscrews are removed, the side panels slide towards the back of the case, detaching from the main chassis. This design simplifies the process of opening the case.

PSU Dust Filter Removal/Cleaning:

Maintaining good airflow and preventing dust buildup is crucial for the longevity and performance of PC components. The BitFenix Nova addresses this with an easily removable PSU dust filter located at the bottom of the case. To clean it, the user simply pulls the dust filter away from the case. This allows for quick and convenient cleaning, which helps prevent dust from entering the power supply and other components, thereby improving cooling efficiency and reducing the risk of overheating.

Front Panel Removal:

The front panel can be removed to facilitate the installation of front fans or for cleaning purposes. This modular design ensures that all areas of the case are accessible for maintenance.

In summary, the BitFenix Nova is a user-friendly computer case designed for both novice and experienced PC builders. Its intuitive installation procedures, convenient front I/O panel, and easy-to-clean dust filters make it a practical choice for assembling and maintaining a personal computer system. The availability of a windowed version also caters to users who wish to display their internal hardware.
