7.1.4 HS.85: Connection of the protection devices
SE-E1 / SE-E3 with two SE-B2
R2
K1T
C1
+
K6T
F9 F10
p p
7
T1
1
T2
SL
2
3
8
9
Anschlusskasten / Terminal box / Boîte de raccordement Schaltschrank / Switch / Armoire électriquecabinet
schwarz/black/noir
braun/brown/
marron
blau/blue/bleu
N
1
14
11
12
L
2
SE-E1 /
SE-E3
F7
7
8
6
5
4
2
1
3
SE-B2
N
B1
14
11
12
L
B2
SE-B2
N
B1
14
11
12
L
B2

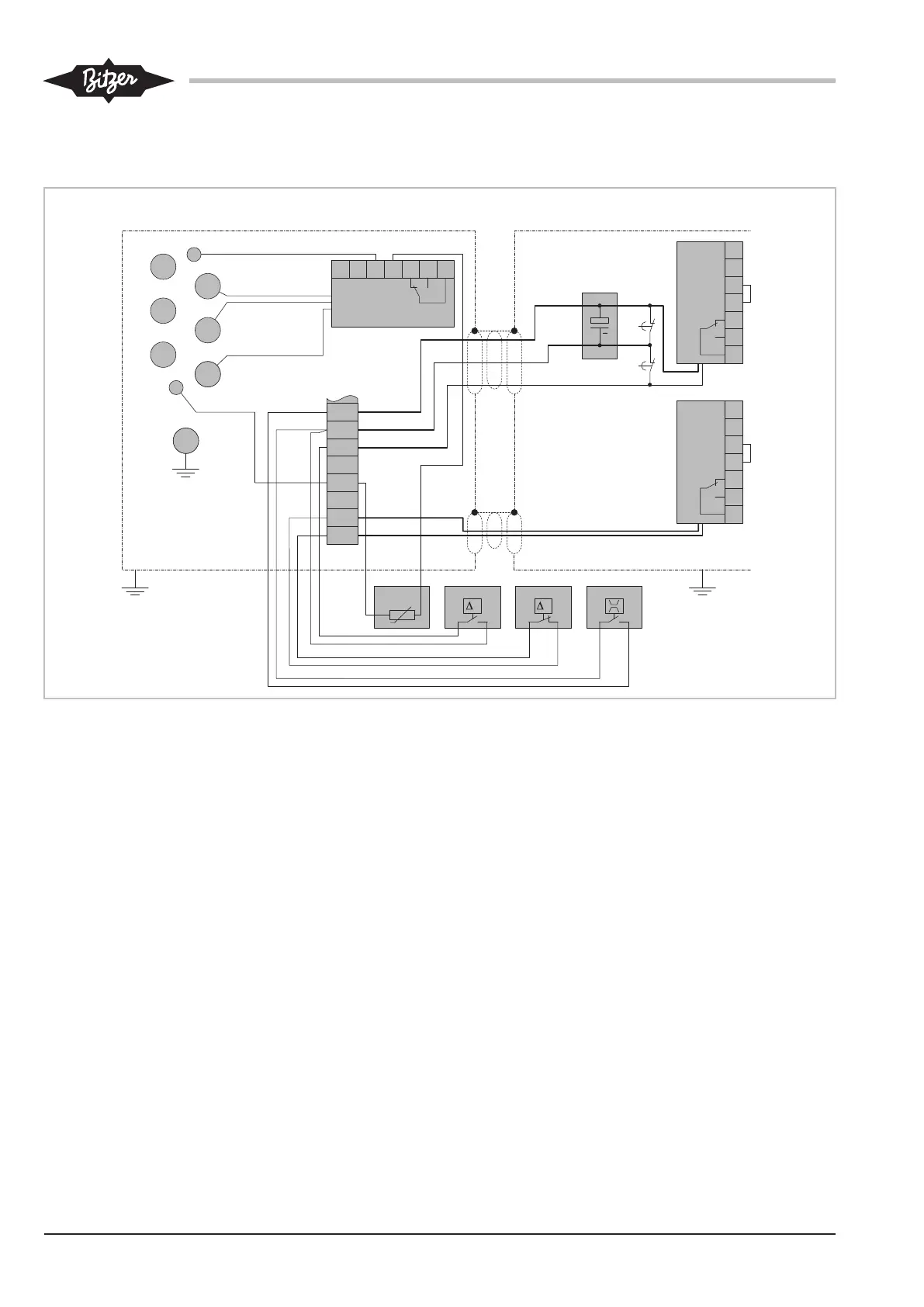

Fig.5: HS.85 screw compressor: Example showing the connection of SE-E1 / SE-E3 in the terminal box and two SE-B2 in the switch cabinet
Legend see chapter Schematic wiring diagrams, page
9.
